Description
7 inch MIPI display Description
- Product Specs: 7 inch MIPI display with in-cell touch , 720×1280 resolution, ultra-slim panel structure; in-cell touch built directly inside LCD without additional sensor layer, thinner & lighter body, improved optical clarity compared to conventional G+G touch structure, balanced performance, stability and expandability
- Applications: Perfectly matched for smart electronic equipment and various embedded system projects, well-suited for products entering formal mass production stage
- Manufacturer Support: Mature integrated touch display design solution with cost advantages, customized modification available to fit compact-size product development demands
7 inch bar lcd
| High brightness industrial LCD Specifications | |||
| Model Number | JLT070KNXX161P45 | Operating Temperature | -10~50 |
| Size | 7 | Storage Temperature | -20~60 |
| Resolution | 720*1280 | Contrast Ratio | 1000:1 |

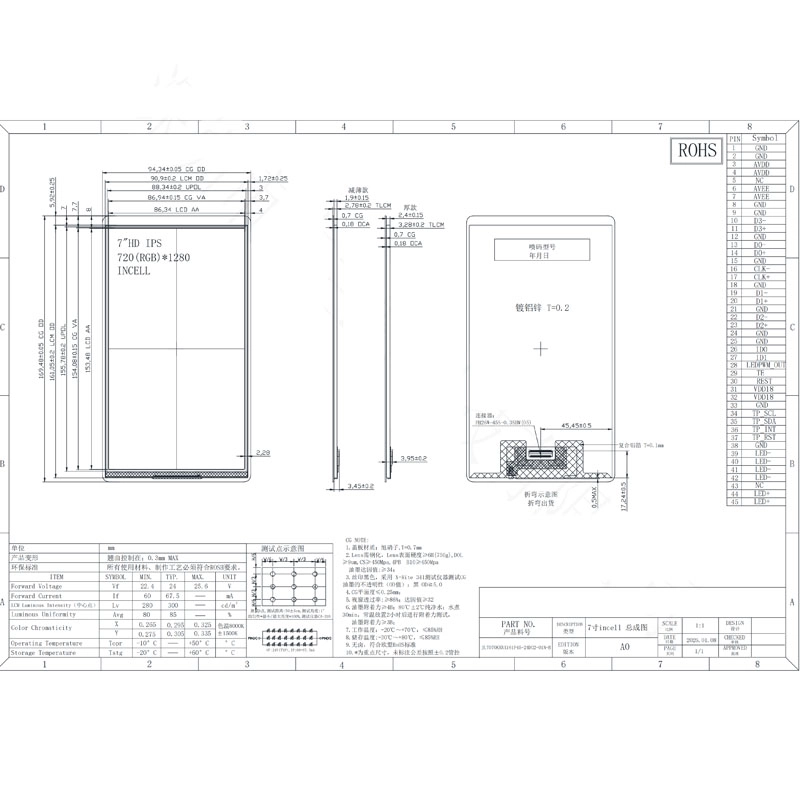

| Outline Dimension | 94.34*169.48*1.9/2.4 | LED Lifetime | 50000 |
| Active Area | 86.34*153.48 | Touchscreen Support | With incell touch |
| Brightness(cd/m²) | 300 | Power Supply | 1.9V |
| Interface | MIPI | Display Type | Color LCD |
| View Direction | IPS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
