Description

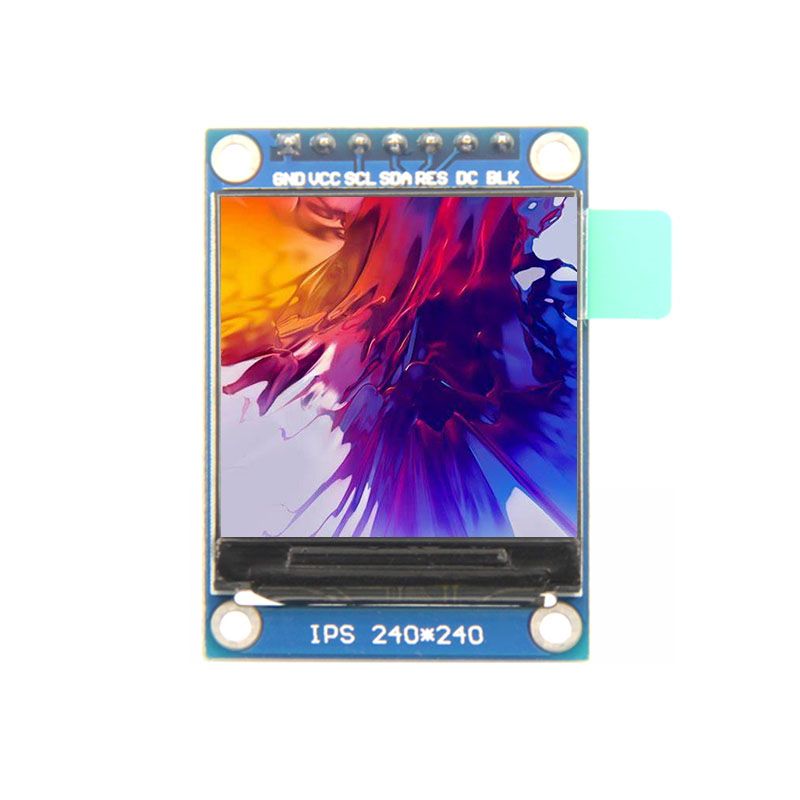

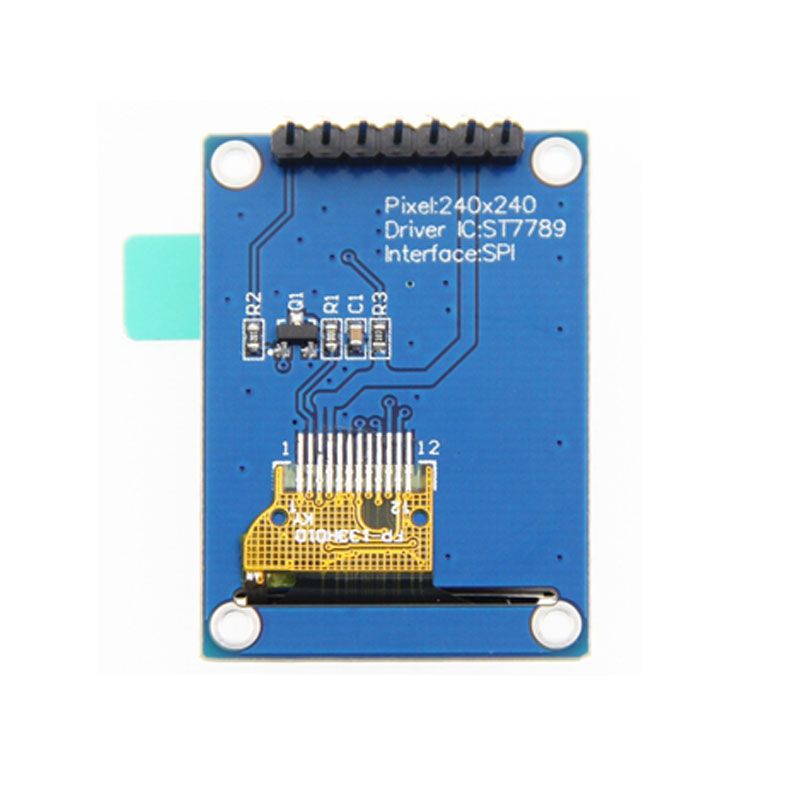

1.3″ IPS TFT LCD Module RGB 4-Wire SPI Interface
Here are the key points about this 1.3″ IPS TFT LCD Module :
✅ Vivid Visuals: 1.3-inch IPS panel delivers 240×240 resolution & 65 K RGB colors with 170° wide viewing angles, ensuring clarity in any orientation.
✅ Simplified Integration: 4-wire SPI serial interface reduces MCU I/O consumption. Effortless to drive with embedded controllers like STM32/ESP32/Raspberry Pi.
✅ Industrial Reliability: Operates stably at -10℃ to 60℃, compliant with MIL-STD-810 G vibration standards. 50,000+ hours MTBF for 24/7 mission-critical systems.
✅ Compact & Versatile: Ultra-thin 2.8 mm profile. Ideal for portable medical devices, smart wearables, automotive dashboards, and ruggedized IoT terminals.
✅ Free SDK & technical documentation (Arduino/C/Python libs)

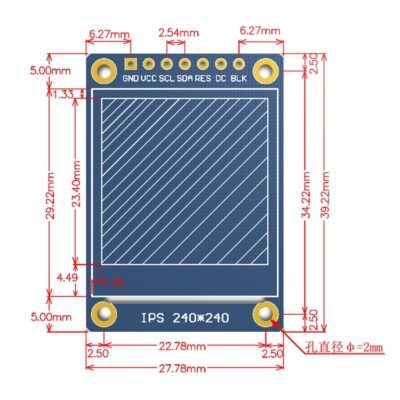

1.3 inch TFT LCD Module Key Parameters
| 1.3 inch TFT LCD Module Key Parameters | |||
| Display Color | RGB 65 K color | Active Area (AA area) | 23.40×23.40 (mm) |
| Screen Size | 1.3(inch) | Module PCB Size | 39.22×27.78 (mm) |
| Type | IPS | Operating Temperature | -10℃~60℃ |
| Driver IC | GC9A01 | Storage Temperature | -20℃~70℃ |
| Resolution | 240*240 (Pixel) | VCC power voltage | 3.3 V |
| Module Interface | 4-line SPI interface | ||
1.3 inch TFT LCD Module Interface
| 1.3 inch TFT LCD Module Interface | |||||
| PIN NO. | SYMBOL | DESCRIPTION | PIN NO. | SYMBOL | DESCRIPTION |
| 1 | GND | LCD Power ground | 5 | RES | LCD reset control signal(Low level reset) |
| 2 | VCC | LCD power supply is positive (3.3 V) | 6 | DC | LCD register / data selection control signal (Low level: register, high level: data) |
| 3 | SCL | LCD SPI bus clock signal | 7 | BLK | LCD backlight control signal (high level lighting,if you do not need control, please connect 3.3 V) |
| 4 | SDA | LCD SPI bus write data signal | |||
Miqidisplay TFT LCD display provide vivid and full-color visual effects, capable of showing bright images, fast animations, complex graphics, custom fonts, as well as various touchscreen options . They support a variety of interface options, such as HDMI, SPI, LVDS, MIPI, RGB and EDP.
These displays feature industry-standard sizes and resolutions . Multiple types are available, such as stretched bar and circular LCDs . Highly adaptable, Miqidisplay TFT modules suit diverse uses . Applications range from industrial control to medical equipment.
