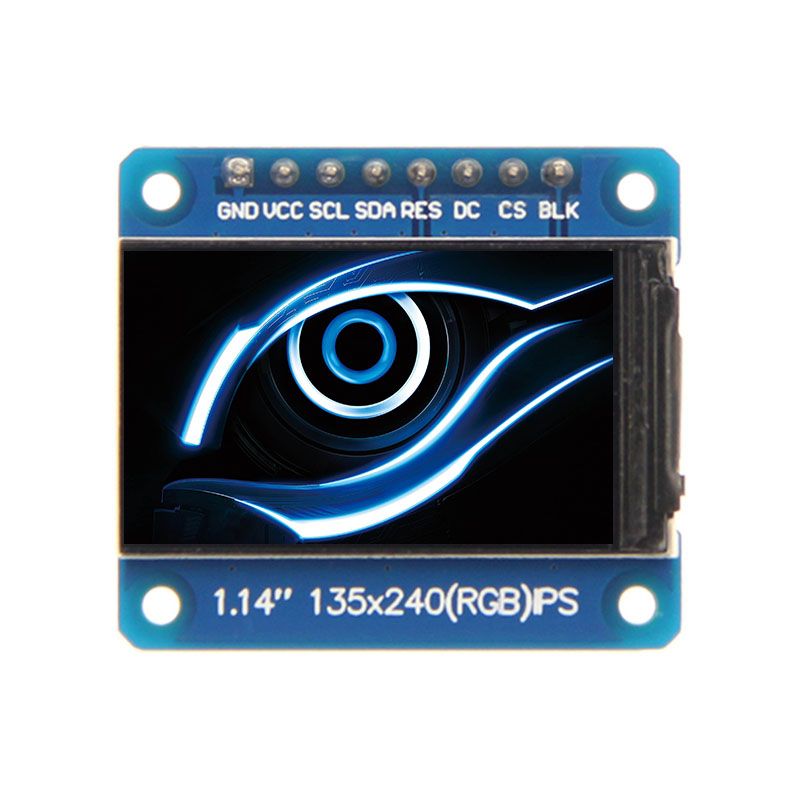

1.14″ SPI TFT Display Module – IPS 135×240 Resolution
Here are the key points about this 1.14 inch SPI TFT Display Module
✅ Industrial-grade operation (-20℃~60℃ extended range available)
✅ ST 7789 V driver IC with built-in GRAM (240 x 135 x 18 -bit)
✅ 400 cd/m² high brightness
✅ 3.3 V/5 V compatible logic interface
✅Preloaded Arduino/Raspberry Pi libraries
✅Certified with CE/RoHS/FCC standards
1.14 inch IPS Module Key Parameters
| 1.14 inch IPS Module Key Parameters | |||
| Display Color | RGB 65 K color | Active Area (AA area) | 14.86×24.91 (mm) |
| Screen Size | 1.14(inch) | Module PCB Size | 30.40×28.00 (mm) |
| Type | IPS | Operating Temperature | -20℃~60℃ |
| Driver IC | ST7789 V | Storage Temperature | -30℃~70℃ |
| Resolution | 135*240 (Pixel) | VCC power voltage | 3.3 V |
| Module Interface | 4-line SPI interface | ||

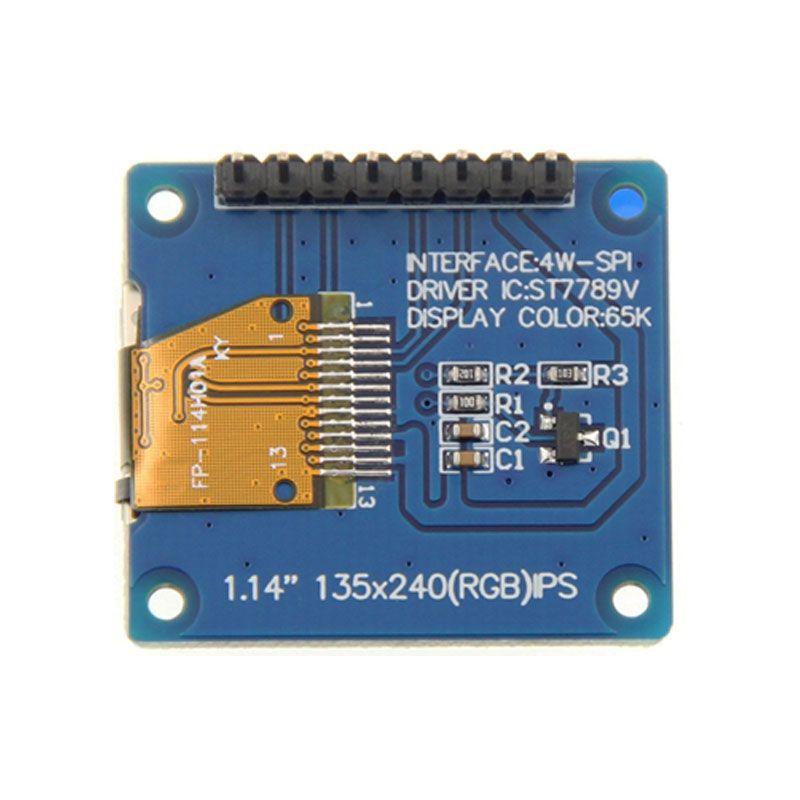

1.14 inch IPS Module Interface
| 1.14 inch IPS Module Interface | |||||
| PIN NO. | SYMBOL | DESCRIPTION | PIN NO. | SYMBOL | DESCRIPTION |
| 1 | GND | LCD Power ground | 5 | RES | LCD reset control signal(Low level reset) |
| 2 | VCC | LCD power supply is positive (3.3V) | 6 | DC | LCD register / data selection control signal |
| 3 | SCL | LCD SPI bus clock signal | 7 | CS | LCD chip select control signal (low level enable) |
| 4 | SDA | LCD SPI bus write data signal | 8 | BLK | LCD backlight control signal (high level lighting |
Miqidisplay TFT LCD display provide vivid and full-color visual effects, capable of showing bright images, fast animations, complex graphics, custom fonts, as well as various touchscreen options . They support a variety of interface options, such as HDMI, SPI, LVDS, MIPI, RGB and EDP.
These displays feature industry-standard sizes and resolutions . Multiple types are available, such as stretched bar and circular LCDs . Highly adaptable, Miqidisplay TFT modules suit diverse uses . Applications range from industrial control to medical equipment.
