Description
3.5 inch Industrial Screen Description
Here are the key points about this 3.5 inch Industrial Screen :
- Product Specs:3.5 inch Industrial Screen, 320×450 resolution, supports MCU & SPI interfaces (flexible integration)
- Customizable Options: Capacitive/resistive touch panels, interface modifications, pin sequence adjustments
- Manufacturing & Support: 15+ years of factory experience; professional R&D team (technical support, design verification, drawing review)
- Quality & Terms: Rigorous production QC, 1-year warranty, reliable after-sales support; flexible MOQ (small batch trial orders accepted)
- Applications: Industrial control, medical equipment, consumer electronics, smart home devices

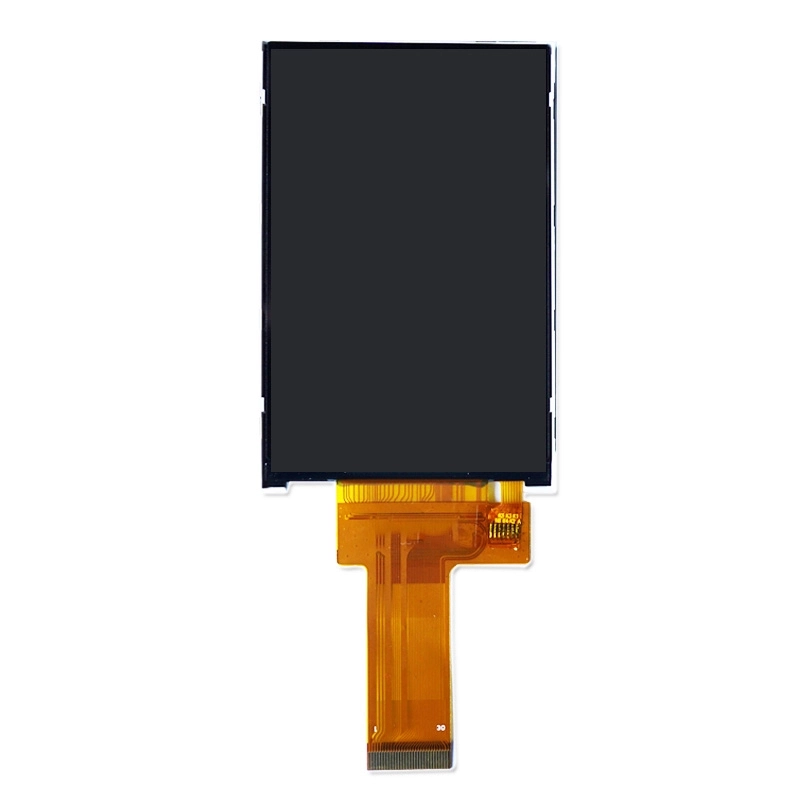

3.5 inch Industrial LCD Display
| 3.5 inch LCD Specifications | |||
| Model Number | LH035CIN01-A | Contrast Ratio | 500 |
| Size | 3.5 | Operating Temperature | -20~70 |
| Resolution | 320*480 | Storage Temperature | -30~80 |
| Outline Dimension | 54.5*83*2.34 | LED Lifetime | 20,000 hours |
| Active Area | 48.96*73.44 | Touchscreen Support | NO |
| Brightness(cd/m²) | 300 | Power Supply | 3.3V DC |
| Interface | MCU/SPI | Display Type | Color TFT LCD |
| View Direction | TN | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
