What are TN and IPS TFT LCD Screens?

TN (Twisted Nematic) TFT LCD

A TN TFT LCD screen relies on the twisted-nematic idea. When voltage gets applied, the liquid crystal molecules twist around. This action helps manage how light passes through. Thanks to this setup, TN panels stand as some of the oldest and most common LCD types. People often pick them for projects that watch every penny. TN screens usually provide quick response times. They also come with lower making costs. That explains why they show up often in cheap monitors and gadgets.

IPS (In-Plane Switching) TFT LCD

IPS TFT LCD screens work in another way. The liquid crystal molecules spin inside the same flat area. This gives better command over light flow. Against TN, IPS tech brings stronger color truth and broader sight angles. Such traits turn IPS into a top pick for fancy monitors, phones, factory screens, and spots where color rightness and steady looks count a lot.



Characteristics and Potential Issues of TN LCD Screens

Characteristics

Fast Response Time & High Refresh Rate: TN panels mostly give faster reply speeds. This helps with games, movie watching, and tasks full of quick moves.

Lower Production Cost: Since TN counts as an older and easier tech, building costs stay low. Devices end up cheaper as a result.

Potential Issues

Color Reproduction and Vibrancy Are Limited: TN panels frequently show weaker color exactness and smaller color range than IPS. Pictures and designs look less bright or sharp.

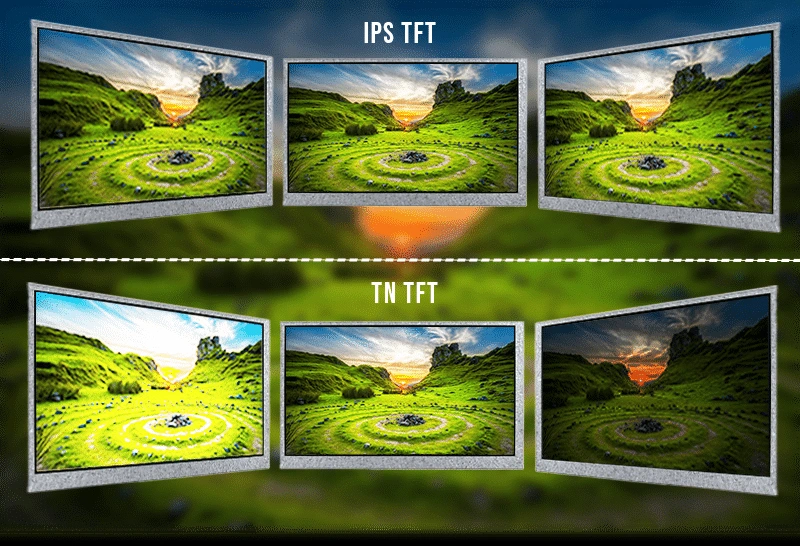

Narrow Viewing Angles: Colors and sharpness on TN screens can change a lot if seen from side spots.

Lower Contrast and Weaker Blacks: Dark areas might seem more gray. Total sharpness feels less full than with IPS.

Backlight Issues / Uneven Lighting: In dim rooms, edge light leaks or bumpy back glow can stand out more.

Panel “Softness”: Pushing the screen may spark short twists or wave looks — some call this a “soft screen.”

Aging-Related Degradation: As years pass, TN panels might drop more in sharpness or evenness.

Because of these problems, TN can work for cheap needs or when speed beats picture truth — but it lags for jobs that demand color rightness and steady sights.

Characteristics and Potential Issues of IPS TFT LCD Screens

Characteristics

Excellent Color Performance: IPS TFT LCDs bring big color range and solid color truth. They suit picture fixing, drawing, doctor screens, and any job that wants true color show.

Wide Viewing Angle: IPS panels keep steady color and sharpness even from steep sides — great for group screens or many-angle looks.

Better Contrast & Deeper Blacks: Mostly, IPS panels give fuller sharpness and darker darks than TN screens.

Potential Issues / Trade-offs

Slower Response Time: Against TN, IPS panels often take a bit longer to reply. This can cause small move fuzz or shadow in quick scenes (like games or films).

Higher Cost: Building IPS panels needs harder steps. Prices climb above TN.

Higher Power Consumption: IPS displays might use more juice than TN ones. This counts for battery gadgets or low-juice tools.

Backlight Bleeding Risk: From the flat line of liquid crystals, IPS panels may face back glow leaks or bumpy light spread at edges — mostly in dark spots.

Even with these weak points, IPS stays the go-to when picture quality, color truth, and sight freedom lead the list.



Summary and Selection Recommendations

When picking between TN and IPS TFT LCD displays, many main points join in — like planned use, money limits, and speed needs. Here come some basic tips:

Choose TN panels when cash is short, speed comes first (like quick-reply tasks, simple movie play, or cheap tools), and color truth or sight angle matter less.

Choose IPS panels when color truth, steady sight angle, and screen quality count — for instance, in jobs like picture or film fixing, factory monitors, doctor tools, user-face screens, or any case needing firm visuals from varied sight spots.

Finally, it matters to note that not all IPS or TN screens match — traits like panel grade, back glow evenness, light strength, clearness, and heat/work-range skills should help pick too.

Why Miqidisplay’s IPS TFT Solutions Stand Out

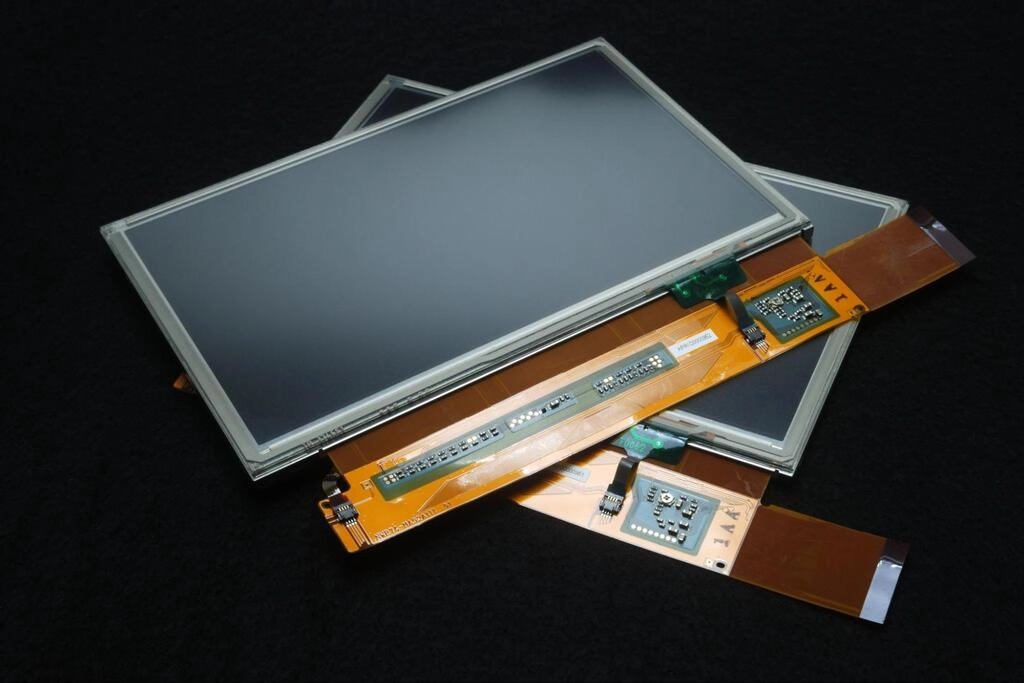

Miqidisplay — a premium display manufacturer — gives a wide set of TFT, LCD, and OLED displays. This includes many IPS TFT LCD panels from tiny (like 1.3″) to big factory-size screens.

Key strength points of Miqidisplay:

They supply displays with broad sight angles and steady color/light from every side. These fit jobs that need high color truth and trusty looks across angles.

Their IPS TFT displays back many links (LVDS, RGB, MIPI, SPI, MCU, etc.) — this makes them easy to fit into varied tools and uses.

Miqidisplay also gives custom R&D and fitted hardware/software fixes. This aids clients who want special clearness, link, or shape needs.

Their build sites meet world proofs and quality watch steps. This brings sureness of product strength and sameness.

Given these strong sides, picking an IPS TFT panel from Miqidisplay fits when screen quality, lasting power, and custom freedom matter.

FAQ

Q: What are the main visual differences between TN and IPS screens?

A: IPS screens give fuller colors, darker darks, and firm visuals even from broad angles; TN screens often own limited color spark, smaller sight angles, and less steady sharpness.

Q: Are TN screens still useful today?

A: Yes — for tasks where speed, cost, and basic screen work count more than color truth or sight angles (like cheap gadgets, simple monitors, built-in systems), TN panels stay handy.

Q: When should IPS TFT LCDs definitely be preferred?

A: For picture/film fixing, drawing jobs, factory watching, doctor tools, or any face where clear, true, and firm screens are needed — mostly when many sight angles or high light/sharpness play big.

Q: What should be considered besides panel type when selecting a display?

A: Panel size, clearness, light strength, back glow evenness, link match (LVDS, MIPI, SPI, etc.), heat stand, and custom choices can all shape fit for a set use.

Partner with Miqidisplay for Tailored TFT LCD Solutions

As a leading manufacturer, supplier, and factory specializing in TFT LCD displays since 2007 in Shenzhen, China, Miqidisplay brings over 20 years of OEM/ODM skill to give custom IPS and TN panels tuned for factory, doctor, car, and smart tool needs.

Businesses that want trusty, grow-able screen fixes can send project needs via our custom solutions form for a 48-hour reply. This includes mock-ups and full build help. Contact Miqidisplay today at mary@miqidisplay.com or WhatsApp +86 188 7965 2960 to boost product work with factory-direct quality.
