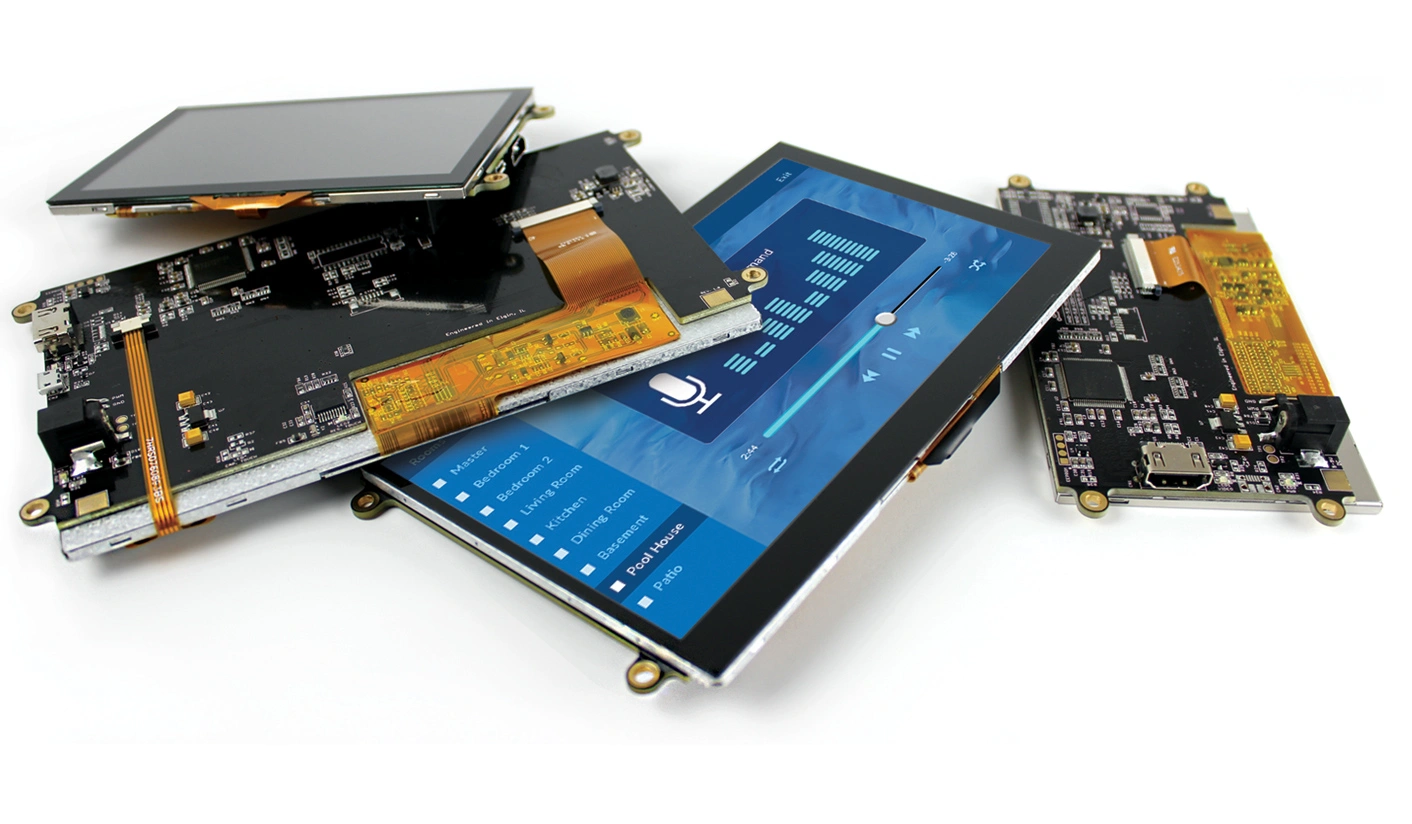

In the changing world of built-in systems and digital links, HDMI TFT modules have come up as a big help for manufacturers and builders looking for simple display fixes. These modules mix good TFT LCD screens with built-in HDMI driver boards. They allow direct, easy links without the old troubles of ribbon cables or outside controllers. This way makes setup smoother from testing to big production. It cuts down build time and extra hardware needs.
HDMI TFT modules give steady picture quality with sizes like 800×480, 1024×600, and up to 1920×1080 in bigger types. They back easy connect-and-use work. They handle broad work heat levels, often from -30°C to +85°C. They have picks for touch by capacity or resistance. By using normal HDMI cables for picture signs and USB for touch (in fitting types), these modules cut match problems. They speed up use in many tasks.
Features of HDMI TFT Modules
HDMI TFT modules show well because of their full list of parts made for today’s built-in and factory uses. Main points cover:
- Standard HDMI Interface — Gives smooth picture input from any HDMI-fit source. It backs clear signals without extra change hardware.
- Integrated Driver Board — Custom PCBs manage sign handling, power care, and light control. This keeps steady work.
- Touch Panel Options — Capacity and resistance touch kinds give quick response touch. They have pre-set USB-HID match for fast spot in backed systems.
- Wide Viewing Angles and Variants — IPS tech in many types gives up to 178° view angles. Standard, high-light, and sun-view picks are on hand.
- Plug-and-Play Setup — Few links needed: HDMI for picture, USB for touch (if it fits), and DC power for on-board rule.
- Robust Build Quality — Broad heat bear, fix holes for simple setup, and match with world rules like RoHS.
- Compatibility — Fits well with single-board computers, factory controllers, and PC-based systems.
These parts make HDMI TFT modules very fit for jobs that need fast setup and steady work.
How HDMI TFT Modules Simplify the Display Connection Process
Old TFT display setup usually needs many parts. These cover FPC ribbon cables, split controller boards, and hard wiring for power, signs, and touch. This plan raises fail spots. It lengthens put-together time. It makes fix harder in testing.
HDMI TFT modules fix these issues by putting the controller right on the module’s PCB. One HDMI cable takes picture data. Optional USB deals with touch input. This cuts out middle boards and lessens cable mess. For no-touch setups, just HDMI and power links work. Touch-fit types add one USB cable. Drivers get spotted auto in match places.
The easy way goes to power care too. On-board parts handle DC input and light PWM control. Fix points built in the board let direct hold with normal screws. This skips custom holds. In all, this plan cuts link hard work. It quickens setup and lowers costs from extra parts and work.
Benefits of Using HDMI TFT Modules in Modern Applications
Taking up HDMI TFT modules gives solid gains for manufacturers and system builders. The main plus is faster build times. Engineers link right to HDMI sources like single-board computers or chips. They skip driver build or sign change blocks. This brings quicker testing and shorter market time.
Steady work gets better with fewer link spots. This lessens sign wear and electric mix risks. HDMI’s set rule makes sure even work across tools. Touch add-on, when there, gives clear user faces without special set in most spots.
Power save and heat care gain from fit driver boards and LED lights. Broad heat levels back use in tough spots. High-size picks give sharp pictures for close data show. Cost cuts come from less part counts and simple put-together ways.
Applications of HDMI TFT Modules
HDMI TFT modules get wide use in fields because of their fit and easy setup.
Industrial Control and HMI Systems
These modules act as main parts in human-machine faces for factory auto, process watch, and tool control. Their strength in broad heat levels and steady HDMI links make sure stable work in hard settings.
Embedded Systems and Single-Board Computer Projects
They are liked with bases needing simple picture out. HDMI TFT modules allow quick build of picture user faces. They back live data show without big setup.
Kiosks and Interactive Displays
Touch-fit kinds power info stands, sale ends, and self-help systems. Easy connect HDMI makes setup simple in shop and open spots.
Medical and Automotive Equipment
High-light and sun-view picks fit medical watch tools and car boards. Clear see under change light is key there.
In each spot, the simple link way lets focus on main work over display links.
Choosing the Right HDMI TFT Module for Specific Needs
Picking a right module means checking size, size, touch needs, work heat, and light. Small 5-inch to 7-inch types fit tight built-in tasks. 10-inch to 15-inch kinds suit bigger HMIs. Size picks depend on close needs. Higher ones like 1920×1080 give better clear.
Touch pick weighs capacity for many-touch right against resistance for glove fit. Place factors set heat range and light levels for out or high-light use. Match with goal systems, like HDMI out on hand, stays a main think.
Change picks add more fit. They allow tweaks to links, plugs, lights, and covers to meet exact job specs.
FAQ
What makes HDMI TFT modules different from traditional TFT displays?
HDMI TFT modules integrate an HDMI driver board directly, allowing connection via standard HDMI cables instead of complex FPC ribbons and external controllers. This reduces setup complexity and hardware requirements.
Are HDMI TFT modules compatible with single-board computers?
Yes, they work seamlessly with devices featuring HDMI output, supporting plug-and-play video display and optional USB touch input.
What touch options are available in HDMI TFT modules?
Modules offer capacitive touch for smooth multi-point interaction and resistive touch for durability in industrial settings, with USB-HID support for easy recognition.
What are the typical operating temperature ranges?
Ranges often span -30°C to +85°C, depending on the model, making them suitable for industrial and outdoor applications.
Can these modules be customized for specific projects?
Customization includes interface modifications, touch enhancements, cable adjustments, PCB changes, cover glass, mounting solutions, and backlight tuning to align with unique requirements.
