Introduction to Capacitive Touchscreens
What Is a Capacitive Touchscreen?
A capacitive touchscreen spots input by the electric flow of the human body or items that conduct. It feels shifts in an electric field when a finger gets close or touches the top. This method gives quick reply times. It backs multi-touch moves. It creates a very natural user feel. Unlike push-based setups, capacitive screens need no real push. This lets easier actions on glass tops.
Why Are Capacitive Touchscreens So Common Today?
Capacitive touchscreens lead in today’s tools because of better feel, move spotting, and fit with thin looks. Old screens used other methods. They did so for money saves and fit with many inputs. These inputs included gloves or pens. But problems in light pass, strength, and no multi-touch hold cut their draw. The start of buyer goods with quick, glass-front links changed market likes. Steady fixes in stuff, sensors, and handling have set capacitive method as the normal for buyer and factory uses.
Capacitive vs. Resistive: A Quick Comparison
Capacitive touchscreens do well in cases needing rightness and clearness. Resistive picks fit certain places that need wide input fit. Capacitive screens back conduct inputs like fingers or special pens. They give real multi-touch work. They offer better strength without push wear. They provide good light show with fewer levels. Resistive screens take any item. This includes gloved hands. But they have less clearness from extra sheets. They show lower strength from move stress. They limit multi-touch. Money gaps put capacitive as fair to higher. Resistive stays cheap for special uses.

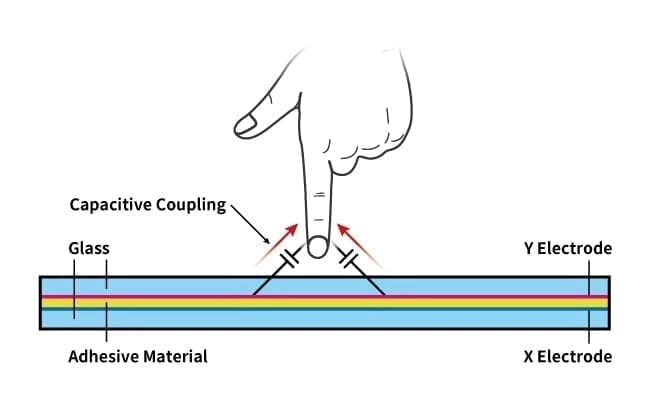

Basic Working Principle
The Role of the Human Finger and Electric Fields
Capacitive touchscreens run on electric field rules. The screen keeps an electric field. Clear electrodes make this field. When a conduct item like a finger comes near the top, it upsets this field. It does so by taking in or moving charge. This shift happens without direct push. It allows spot by nearness. This makes quick, smooth run.
Self-Capacitance vs. Mutual Capacitance
Two main spot ways exist. Self-capacitance checks changes in capacity on single electrodes. It gives high feel for one-point spot. But it faces issues with right multi-touch follow. Mutual capacitance watches changes at cross of row and column electrodes in a net shape. This way backs right multi-touch and hard moves. It makes it common in today’s phones, pads, and high factory links.
Charge Transfer and Signal Processing
Touch happenings start charge move. The touchscreen controller chip takes this. The controller handles raw signs to find right spots, time, and touch traits. Noise clean and smart steps boost work. They back parts like water push-off, glove fit, and run through thicker guard levels. This comes by set voltage and sign read.
Structure and Materials
ITO Layers and Transparent Electrodes
Indium Tin Oxide (ITO) makes the main conduct level. It goes on clear on glass or sheet bases. Electrodes shape into a net of rows and columns. Cross points act as spot places. Higher line count per inch boosts size and rightness. But it raises hard work and money. Right uses in medical or factory spots gain from thick nets for better hold.
Cover Glass and Protective Layers
A guard cover glass keeps the sensor net safe. It also boosts user action. Buyer tools often use thin glass (0.7–1.1 mm) for light builds. Factory or open uses take thick kinds (4–8 mm) for hit and break stop. Thick glass needs strong controllers. They keep sign power and noise fight.
Flexible vs. Rigid Touch Panels
Rigid panels fix on glass bases. They give steady for normal flat uses like screens and control systems. Flexible panels use sheet bases. They allow bent or light builds fit for new shapes. Rigid picks put strength first. Flexible kinds give more shape choice at some loss in strong build.
Typical Applications in Industry
Industrial Control Panels
Human-machine links in make and auto use tough, quick touch for watch and run. Capacitive method holds hard states. These include wet and glove use. It beats others in steady work.
Medical Devices
Check tools, patient watchers, and carry gear add capacitive touch for clean, easy-wash tops. Glove fit, high light good, and rule fit make these screens fit for clinic spots.
Smart Home Interfaces
Heat sets, control boards, and move shows gain from thin, quick capacitive touch. New looks and move back fit smart net needs.
Advantages of Capacitive Touchscreens
Multi-Touch Capability
Back for same-time multi-finger inputs allows high moves and natural holds. This is key for hard links in buyer and work systems.
High Clarity and Responsiveness
Low levels keep light pass. They give sharp sights and fast back without push needs.
Durability and Low Maintenance
Shut glass tops fight marks, dirt, and wet. They cut wear and care needs in high-use spots.
Water Interference and Gloves
New controllers add steps for water push and glove spot. This grows use in out, wet, or hand-guard spots.
Conclusion
Future Trends in Touchscreen Technology
Fixes go on in fields like better move spot, push-feel input, 3D touch parts, and fit with bend or fold shows. Wide take-up happens in car boards, health checks, and wear tools.
Why Capacitive Touchscreens Continue to Dominate
Better user feel, look fit, and strong work make sure steady lead over markets. Capacitive method weighs rightness, strength, and fit change for growing uses.
Frequently Asked Questions (FAQ)
What makes capacitive touchscreens different from other types?
Capacitive touchscreens detect electrical field changes from conductive objects, offering multi-touch and high clarity without pressure, unlike resistive screens that rely on physical contact.
How accurate is capacitive touchscreen technology?
Modern capacitive screens achieve sub-millimeter precision through dense electrode grids and advanced signal processing, supporting resolutions up to 4096×4096 in high-end implementations.
Can capacitive touchscreens work with gloves or in wet conditions?
Advanced controllers enable glove operation and water rejection via specialized algorithms, making them suitable for industrial, medical, and outdoor uses.
What materials are used in capacitive touchscreen construction?
Indium Tin Oxide (ITO) forms transparent electrodes, paired with protective glass layers and sometimes flexible substrates for varied applications.
Are capacitive touchscreens durable for long-term industrial use?
Yes, sealed designs and toughened glass provide resistance to environmental factors, with low maintenance ideal for continuous operation.
