Description
G104ACJ-L01 General Description
Here are the key points about this Innolux G104ACJ-L01 IPS Vertical LCD :

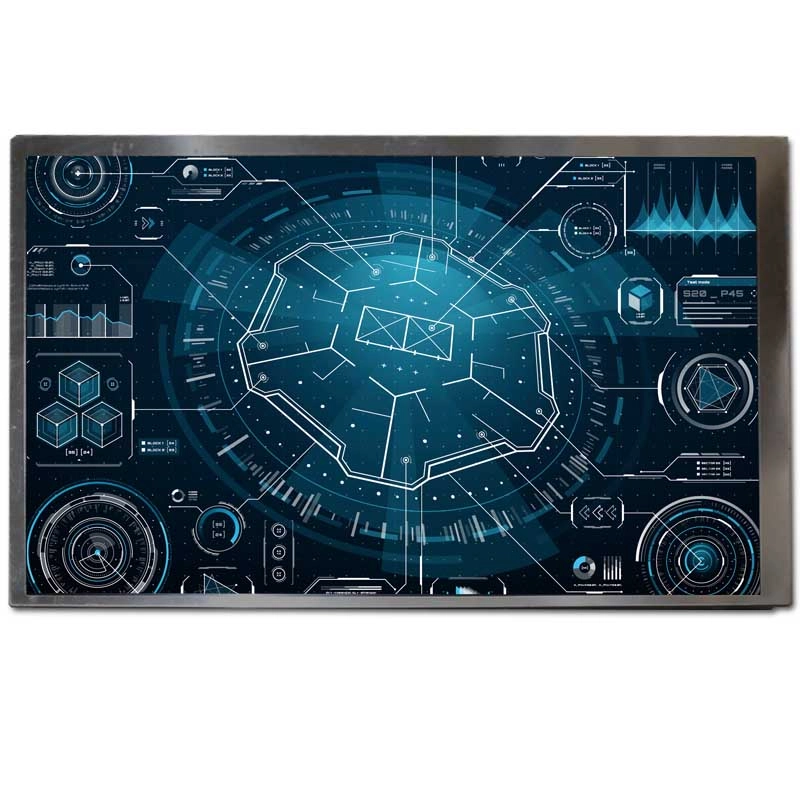

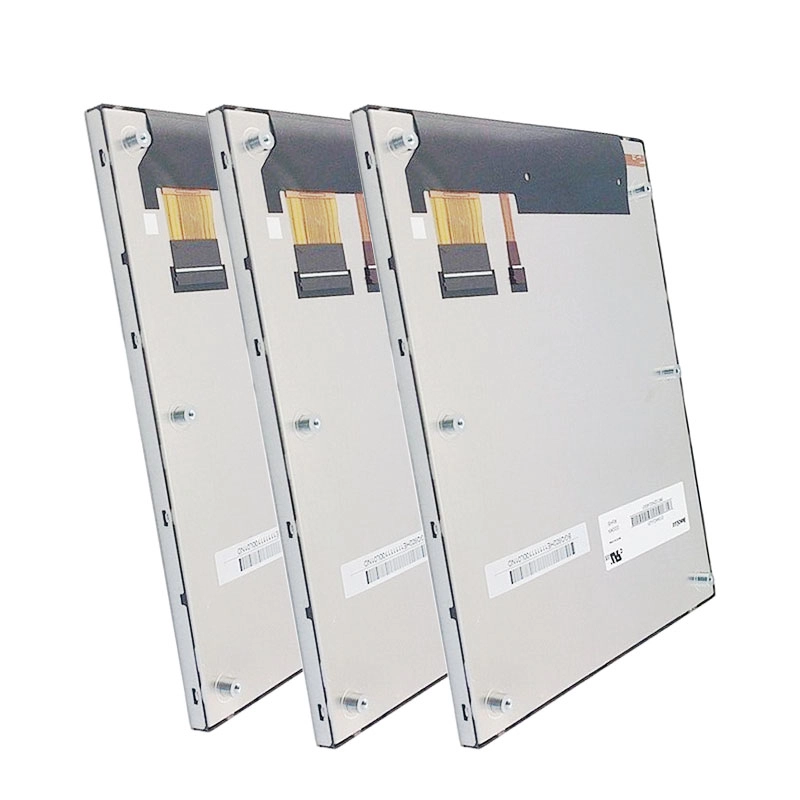

Model and Panel Characteristics：The Innolux G104ACJ-L01 redefines vertical display performance with its 10.1-inch 960×1280 portrait-mode IPS panel.
Display Performance：Engineered for mission-critical applications, it delivers 900cd/m² ultra-high brightness and 1000:1 contrast ratio for superior readability in direct sunlight or harsh lighting.
Viewing Angles and Temperature Range：The 85/85/85/85 viewing angle ensures accurate color reproduction across vertical layouts, while its -40°C~85°C operational range outperforms industrial standards.
Interface and Power Consumption：Featuring LVDS interface and 3.3V low-power design, it integrates seamlessly with energy-sensitive systems.
Durability and Storage Capacity：Built to endure, it survives -40°C~90°C storage extremes and offers 50,000-hour LED lifespan.
Dimensions and Installation Adaptability：The compact 173.4×228.7mm footprint and 14.27mm thickness enable deployment in space-constrained vertical installations.
Innolux G104ACJ-L01 IPS Vertical LCD Application & Performance
Optimized for vertical industrial HMIs, suits polar research, oil refineries, and military field devices. 900cd/m² brightness for desert solar inverters and aircraft maintenance. Portrait mode fits medical pumps, warehouse screens, EV chargers. Ultra-wide temp range works for Arctic drilling and foundries. High contrast aids mining elevators and maritime consoles. 3.3V efficiency ideal for battery-powered handheld tools in extremes.
G104ACJ-L01 General Description
| G104ACJ-L01 10.4″ IPS TFT LCD Panel | |||
| Display Size | 10.4 inch (264.2 mm diagonal) | Contrast Ratio | 1000:1 (typical) |
| Native Resolution | 960 × 1280 (Portrait) | Operating Temperature | -40℃ to +85℃ |
| Brightness | 900 cd/m² (typical) | Storage Temperature | -40℃ to +90℃ |
| Module Dimensions | 173.4(W) × 228.7(H) × 14.27(D) mm | LED Backlight Lifetime | 50,000 hours (minimum) |
| Active Area | 158.4 × 211.2 mm | Touchscreen | Not included |
| Panel Technology | In-Plane Switching (IPS) | Power Supply | 3.3V DC |
| Viewing Angles | 85° (All directions) | Display Type | Color TFT LCD |
| Signal Interface | LVDS (40-pin connector) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
