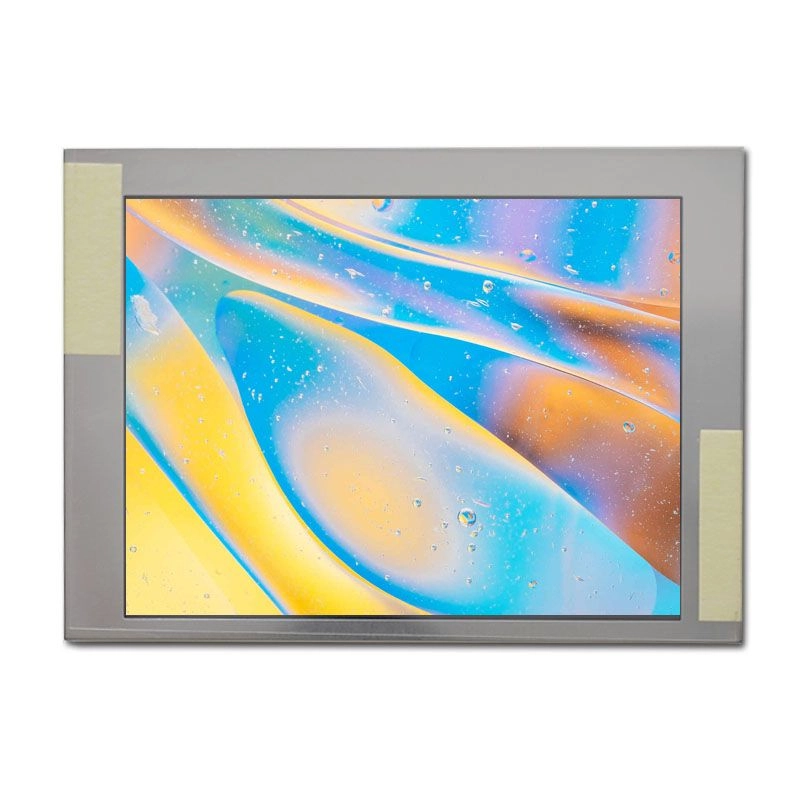

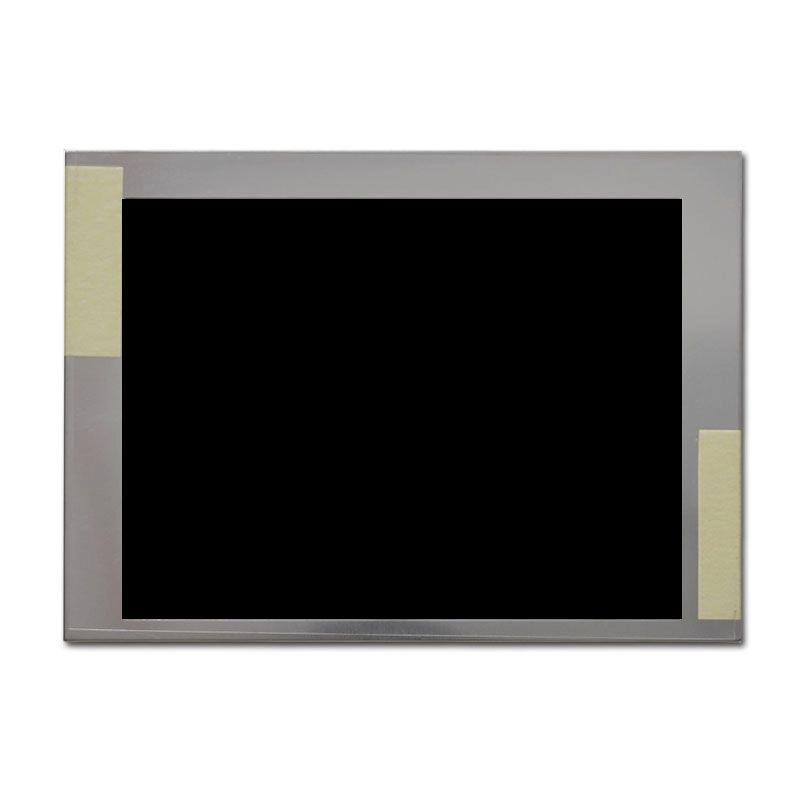

AUO G057QN01 V2 TFT LCD Display Description
Here are the key points about this AUO G057QN01 V2 TFT LCD Display :
- Model Name: G057QN01 V2
- Application: Designed for industrial display applications
- Resolution: QVGA (320 x RGB x 240)
- Color Depth: 262k colors (RGB 6 – bits)

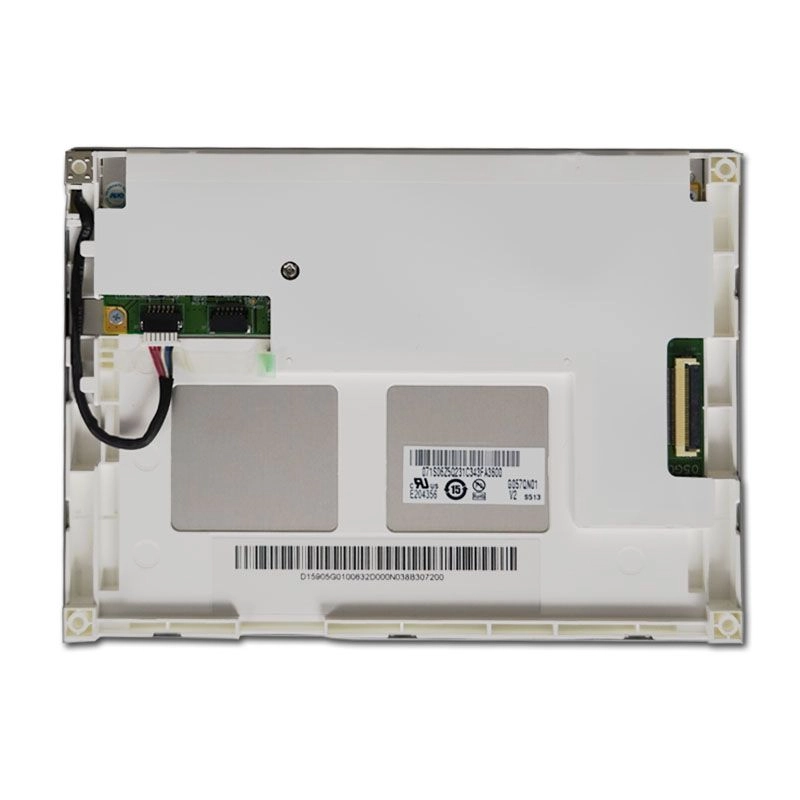

- Component Composition: Composed of a TFT – LCD panel, driver ICs, control and power supply circuits board, and backlight unit including LED driver circuit
- Interface: Offers CMOS interface for display signal input
G057QN01 V2 AUO Display Characteristics
The 5.7 – inch LCD Display Module has an active area of 115.2 mm (H) x 86.4 mm (V) and a 320 x 240 RGB vertical stripe resolution. With a 0.36 mm pixel pitch and TN mode, it runs on 3.3V, consuming 3.34W (0.46W for LCD, 2.88W for LED backlight). Weighing 150g, its dimensions are 144.0 mm (H) x 104.6 mm (V) x 12.3 mm (D). It has a CMOS 6 – bit Parallel RGB interface, 3H anti – glare surface, supports 262K colors, and best viewed at 12 o’clock. The operating and storage temp range is -30°C to +85°C, and it’s RoHS compliant.
| 5.7″ AUO LCD Display Product Specifications | |||
| Model Number | G057QN01V 2 | Operating Temperature | -30~85 |
| Size | 5.7 | Storage Temperature | -30~85 |
| Resolution | 320*240 | LED Lifetime | 50000 |
| Outline Dimension | 144*104.6*12.8 | Touchscreen Support | Without |
| Active Area | 115.2*86.4 | Contrast Ratio | 800:01:00 |
| Brightness(cd/m²) | 800 | Power Supply | 3.3V |
| Interface | CMOS | Display Type | Color LCD |
| View Direction | TN | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
