Description

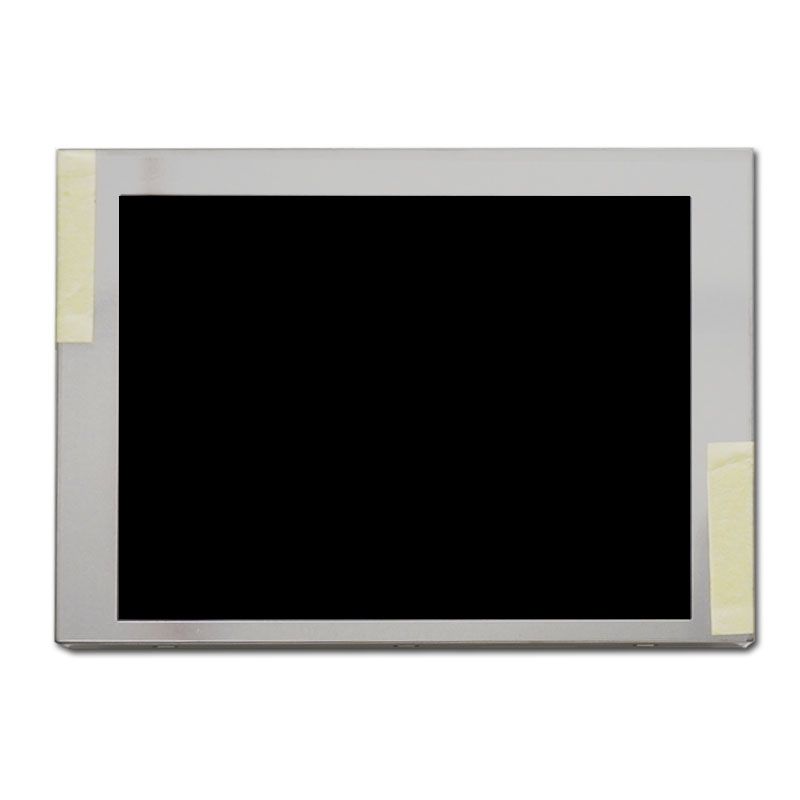

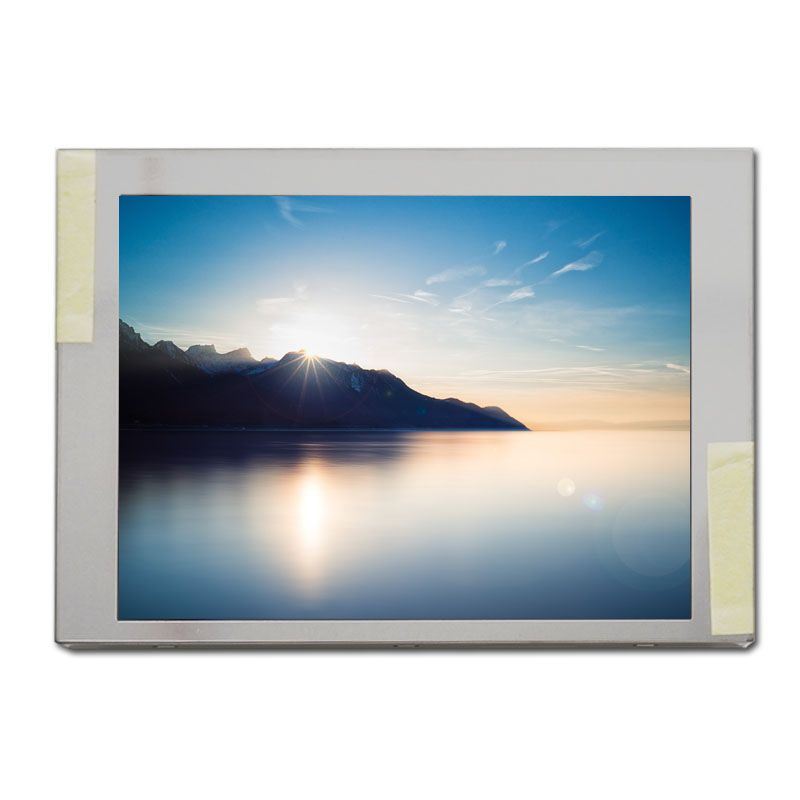

AUO G057VN01 V2 LCD Display Panel Description
Here are the key points about this AUO G057VN01 V2 LCD Display Panel :
- Model: G057VN01 V2
- Application: Designed for industrial display applications
- Resolution: VGA (640 x RGB x 480)
- Color Depth: 262k colors (RGB 6 – bits)

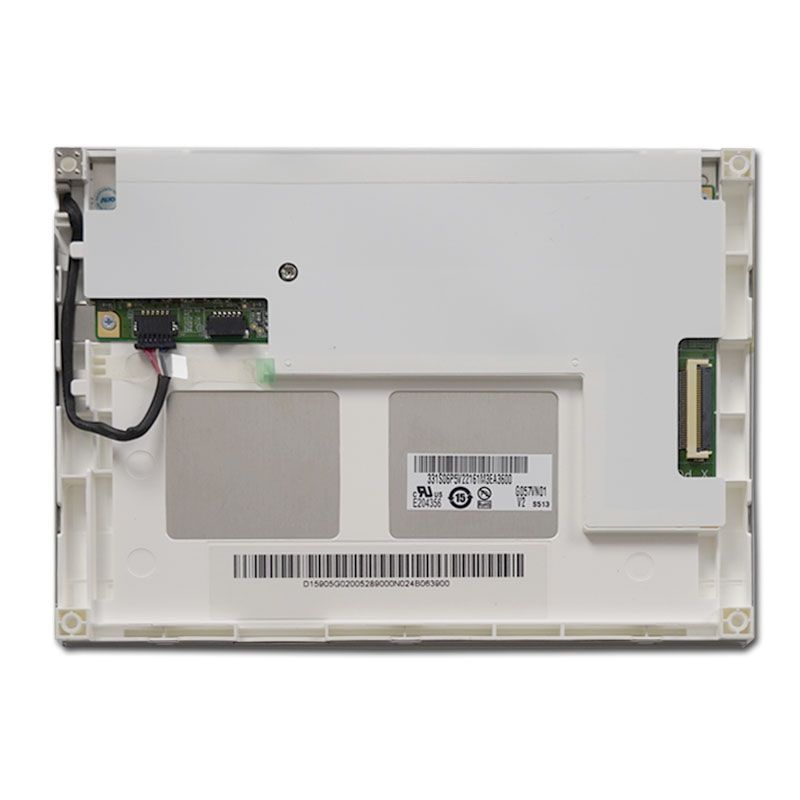

- Composition: Composed of a TFT-LCD panel, driver ICs, control and power supply circuits board, and a backlight unit including an LED driver circuit
- Interface: Offers a CMOS interface for display signal input
G057VN01 V2 AUO Display Characteristics
The 5.7 – inch LCD Display Module has an 115.2×86.4mm active area and 640×480 RGB vertical stripe resolution. With a 0.36mm pixel pitch and TN mode, it runs on 3.3V, consuming 3.34W (0.46W for LCD, 2.88W for backlight). Weighing 150g, its size is 144.0×104.6×12.3mm. It has a 6 – bit CMOS Parallel RGB interface, 3H anti – glare surface, supports 262K colors, best viewed at 12 o’clock. The operating and storage temp range is -30°C to +85°C, and it’s RoHS compliant.
| 5.7″ TFT-LCD Product Specifications | |||
| Model Number | G057VN01 V2 | Operating Temperature | -30~85 |
| Size | 5.7 | Storage Temperature | -30~85 |
| Resolution | 640*480 | LED Lifetime | 50000 |
| Outline Dimension | 144*104.6*12.8 | Touchscreen Support | Without |
| Active Area | 115.2*86.4 | Contrast Ratio | 800:01:00 |
| Brightness(cd/m²) | 700 | Power Supply | 3.3V |
| Interface | CMOS | Display Type | Color LCD |
| View Direction | TN | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
