BOE QV190FBM-N10 TFT Panel 19 inch Bar Type Screen

SKU: DS50291
Brands:
Size

19 inch

Resolution

1920*360

Interface

LVDS

Op temperature

-0℃~50℃

Brightness(cd/m²)

300

Touchscreen Support

NO

Display Type

Color LCD

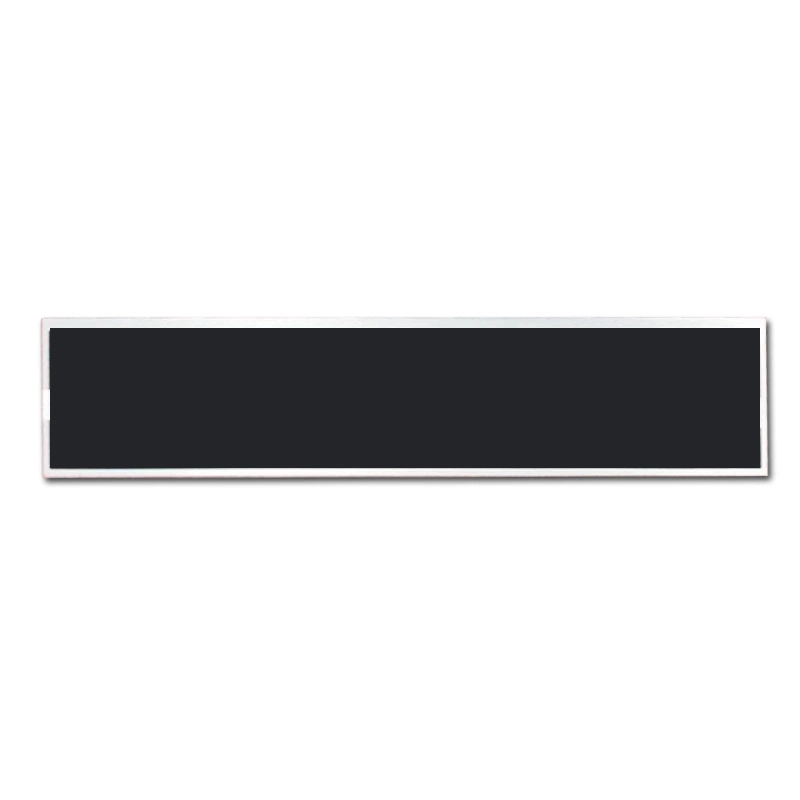

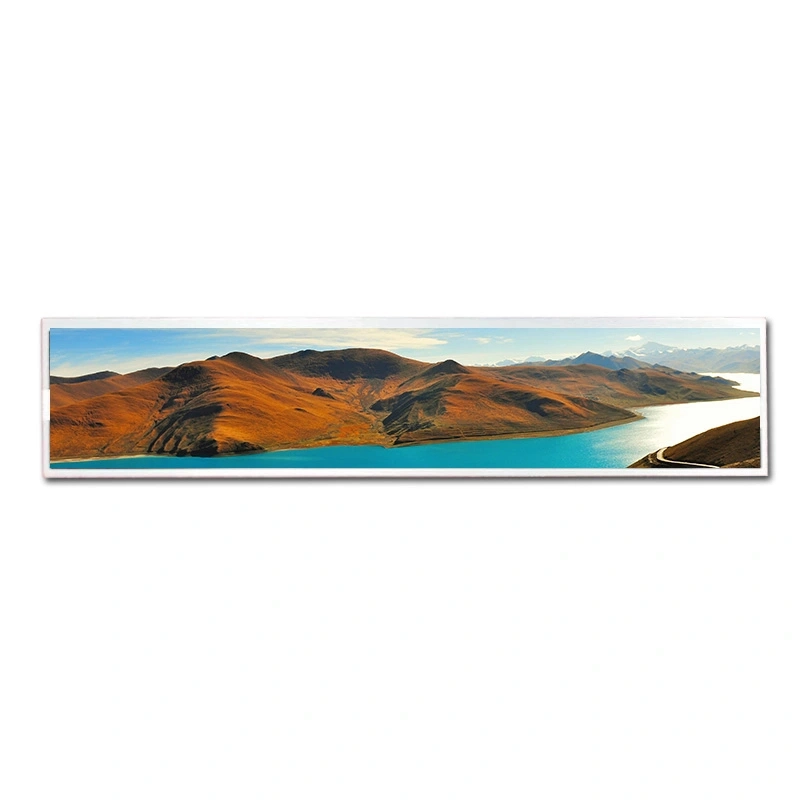

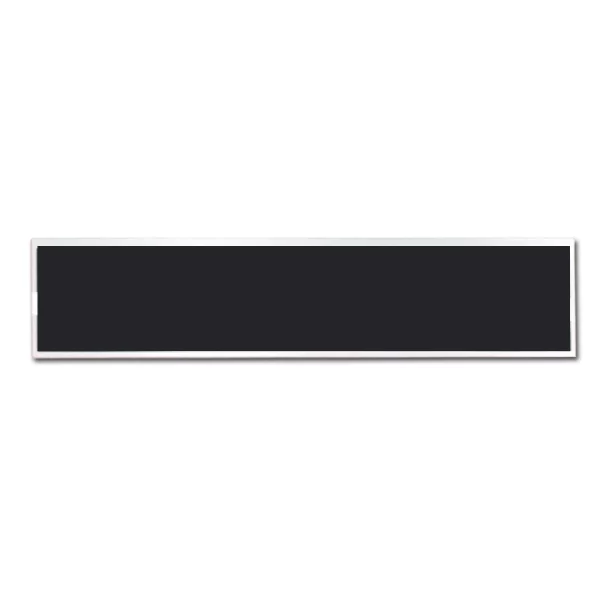

BOE QV190FBM-N10 TFT Panel , 19inch, 1920×360, IPS wide viewing angle, Long stretched screen for transportation and advertising.

x

    Description

    BOE QV190FBM-N10 Description

    Here are the key points about this BOE QV190FBM-N10 TFT Panel :
    Excellent stability and reliability, 1920×360 bar-type panels are ideal for transportation, advertising, and other demanding applications. Widely sold both domestically and internationally, our strip-shaped displays deliver consistent performance and visual clarity for large-scale information display and commercial promotion.

    BOE QV190FBM-N10 TFT Panel Key Features:

    ✅BOE original Grade A panels with strict quality control
    ✅Ultra-wide resolution 1920×360 for panoramic content display
    ✅Engineered for high-reliability environments (transportation hubs, outdoor advertising)
    ✅Global market presence with proven sales track record

    19″ TFT Display Specifications

    QV190FBM-N10 19″ TFT LCD Display Specifications
    Model Number QV190FBM-N10 Operating Temperature 0℃ to +50℃
    Display Size 19 inch (482.6 mm diagonal) Storage Temperature -20℃ to +60℃
    Native Resolution 1920 × 360 pixels LED Backlight Lifetime 30,000 hours
    Module Dimensions 491.5(W) × 109.4(H) × 8.4(D) mm Touchscreen Not supported
    Active Area 476.64 × 89.37 mm Contrast Ratio 1200:1
    Brightness 300 cd/m² Power Supply 3.3V DC
    Signal Interface LVDS (Low Voltage Differential Signaling) Display Type Color TFT LCD
    Viewing Direction All View

    Customizable Parts

    Display Cable

    Display Cable

    We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.

    Customized glass and touch screen

    In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.

    Customized glass and touch screen

    Contact us to get the best customized solution.

    BOE LCD screen

    Q: What type of panel is the BOE QV190FBM-N10?
    A: It is a TFT panel.

    Q: What is the size of the BOE QV190FBM-N10?
    A: 19 inches.

    Q: What is the resolution of the BOE QV190FBM-N10?
    A: 1920×360.

    Q: What viewing angle technology does the BOE QV190FBM-N10 feature?
    A: IPS wide viewing angle.

    Q: What kind of screen is the BOE QV190FBM-N10?
    A: It is a long stretched screen.

    Q: For what applications is the BOE QV190FBM-N10 suitable?
    A: Transportation and advertising.

    Additional information

    Size

    19 inch

    Resolution

    1920*360

    Interface

    LVDS

    Op temperature

    -0℃~50℃

    Brightness(cd/m²)

    300

    Touchscreen Support

    NO

    Display Type

    Color LCD

    Custom Display Solutions

    Work with our engineering experts to create the perfect display for your application.
