Description

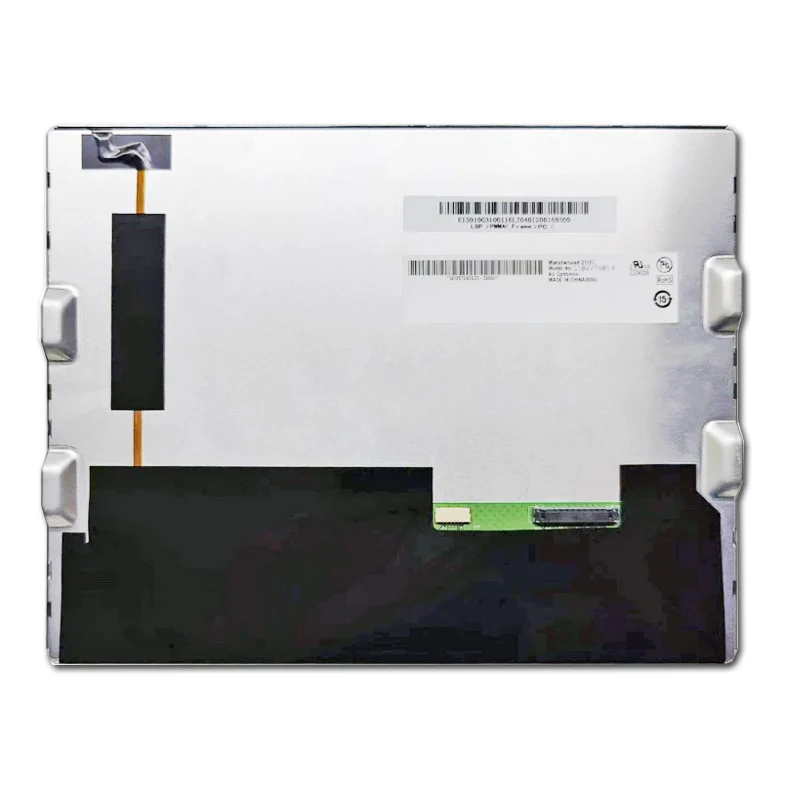

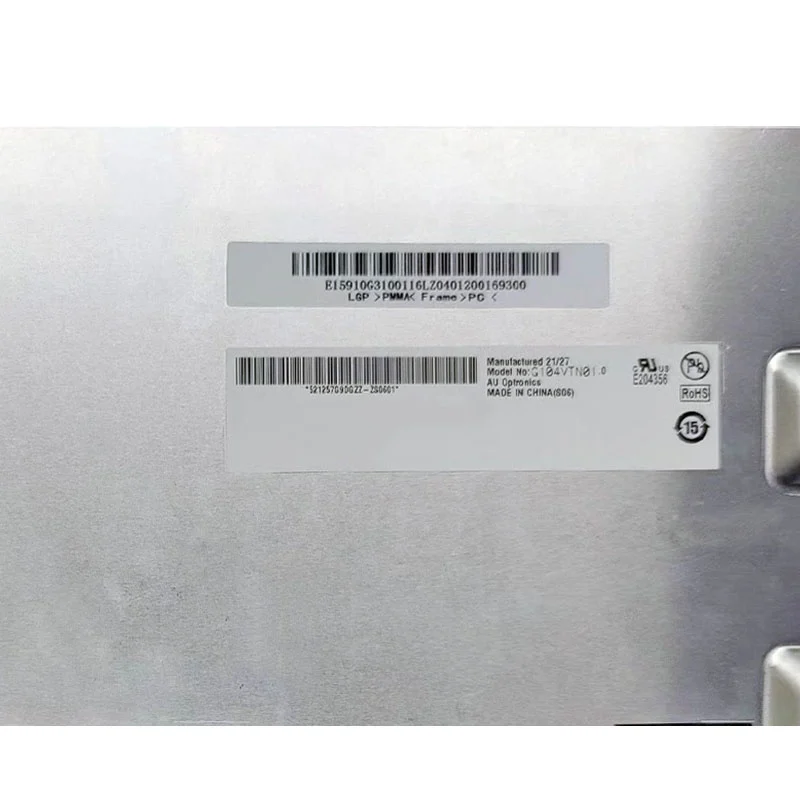

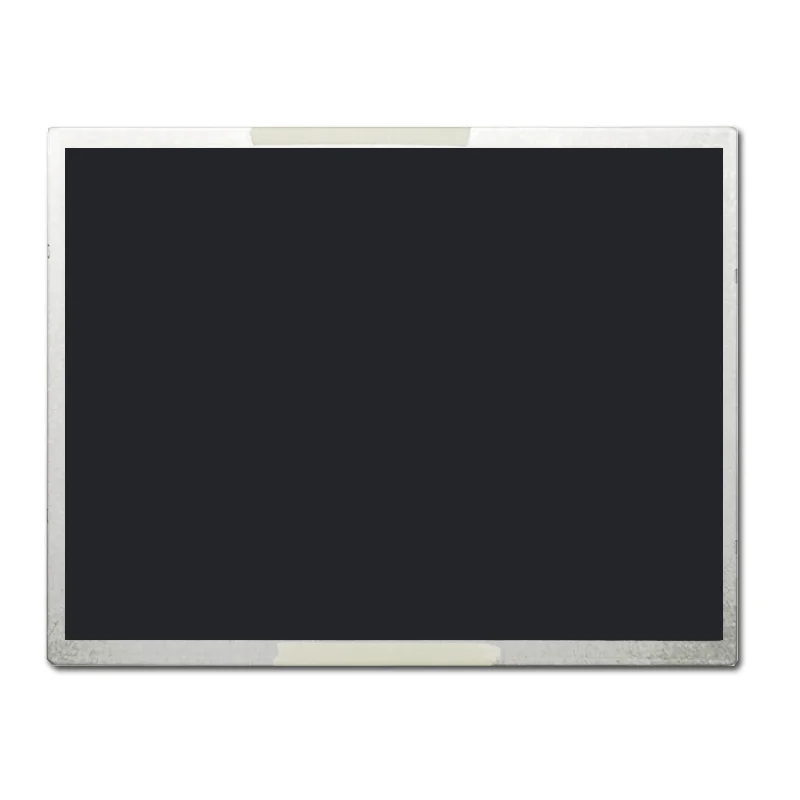

AUO G104VTN01.0 LCD Description
Here are the key points about this AUO G104VTN01.0 industrial Display Screen :
- Product & Core Display: AUO G104VTN01.0 industrial Display Screen (10.4-inch a-Si TFT-LCD), 640×480 VGA (76 PPI), 370 cd/m² brightness, 700:1 contrast, 80/80/60/80 viewing angles, TN normally white transmissive mode, 262K colors (47% NTSC)
- Physical & Surface: 211.2×158.4mm active area, 227.3×177.5×9.8mm outline size, 293g weight, antiglare 3H hard coating, compatible with customized touch screen
- Technical & Power: WLED backlight (100K hours), 60Hz (up to 240Hz via MEMC), 40-pin parallel RGB interface, 3.3V input
- Wide operating temperature range of -30°C to 80°C, suitable for demanding industrial environments (frigid warehouses, outdoor equipment, industrial ovens)
- High-quality WLED backlight with 100,000-hour lifespan, reducing maintenance and replacement costs for long-term industrial use
| G104VTN01.0 Industrial LCD Display | |||
| Model Number | G104VTN01.0 | Operating Temperature | -30~80℃ |
| Size | 10.4″ | Storage Temperature | -30~80℃ |
| Resolution | 640*480 | LED Lifetime | 100K hrs |
| Outline Dimension | 227.3(W)×177.5(H) ×9.5(D) | Touchscreen Support | Without |
| Active Area | 211.2(W)×158.4(H) | Contrast Ratio | 700 |
| Brightness(cd/m²) | 370 | Power Supply | 3.3V |
| Interface | RGB | Display Type | Color LCD |
| View Angle(U/D/R/L) | 80/80/60/80 | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, your circuit connections will be made safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
