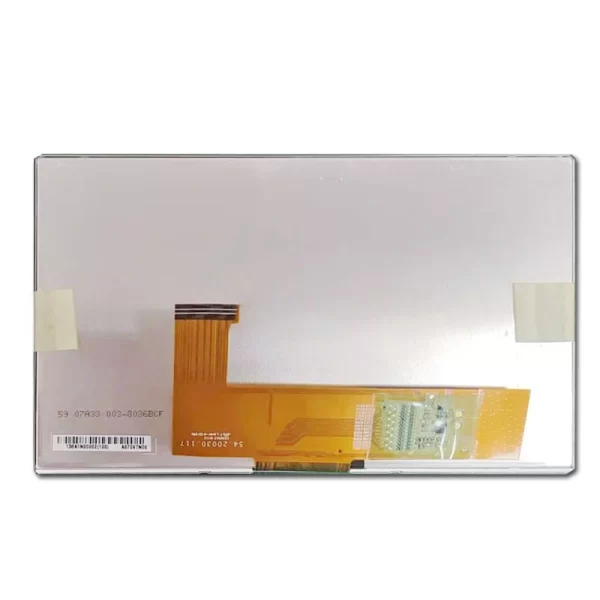

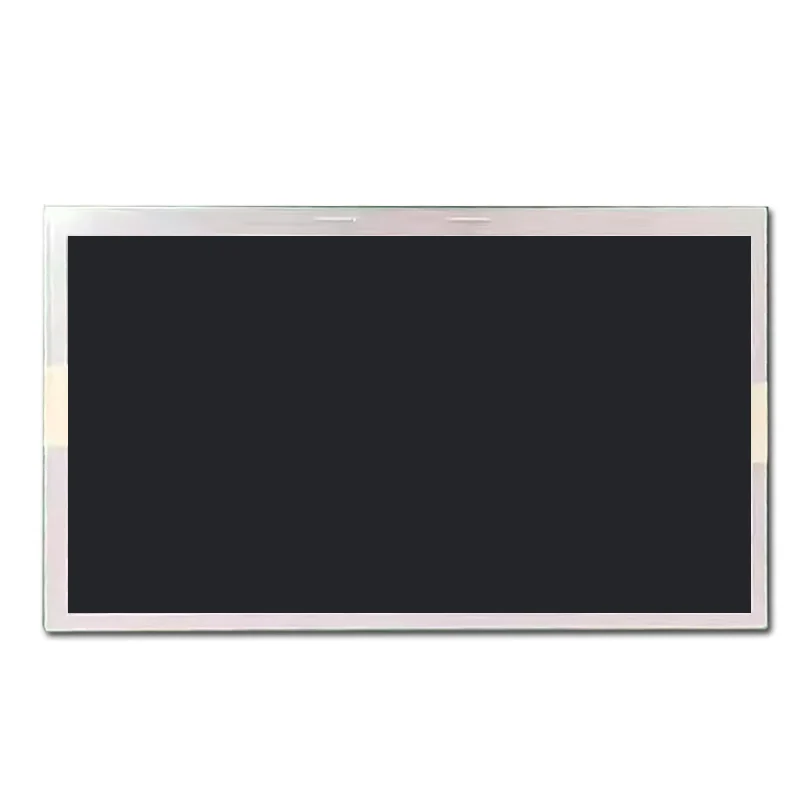

AUO A070VTN06.1 General Description
Here are the key points about this AUO A070VTN06.1 industrial Screen :
- The AUO A070VTN06.1 is a 7-inch TN TFT LCD module designed for high-performance embedded systems requiring extreme luminance.
- With 1250nits brightness, it excels in outdoor, aviation, and medical equipment where sunlight readability is critical.
- The 800×480 resolution and RGB 24-bit interface ensure precise color reproduction and compatibility with FPGA/ARM-based controllers.
- Engineered for industrial durability, it operates reliably across -20°C to 70°C temperatures and offers a 10,000-hour lifespan under continuous use.
- Key features include a 600:1 contrast ratio, anti-reflective surface treatment, and 6 o’clock viewing angles for flexible integration.
AUO A070VTN06.1 Application
Target applications include avionics displays, automotive HUDs, ruggedized HMIs, and portable diagnostic devices.
Supports custom EMI shielding and optional touch panel integration (resistive/capacitive).
RoHS-compliant with low power consumption (3.3V logic).
7″ LCD Specifications
| 7 inch TN LCD Specifications | |||
| Diagonal Size | 7.0″(Diagonal) | Contrast Ratio | 500 |
| Pixel Number | 800×480 Pixels | Operating Temperature | -20~70℃ |
| Luminance | 1280 | Storage Temperature | -30~80℃ |
| Module Size | 166.43(W)×102.2(H)×6.6(D) | LED Lifetime | 10K |
| Active Area | 154.08(W)×85.92(H) | Touchscreen Support | Without |
| Viewing Direction | TN | Power Supply | 3.3v |
| View Angle(U/D/R/L) | 60/60/40/60 | Display Type | Color TFT |
| Interface | RGB | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
