Description

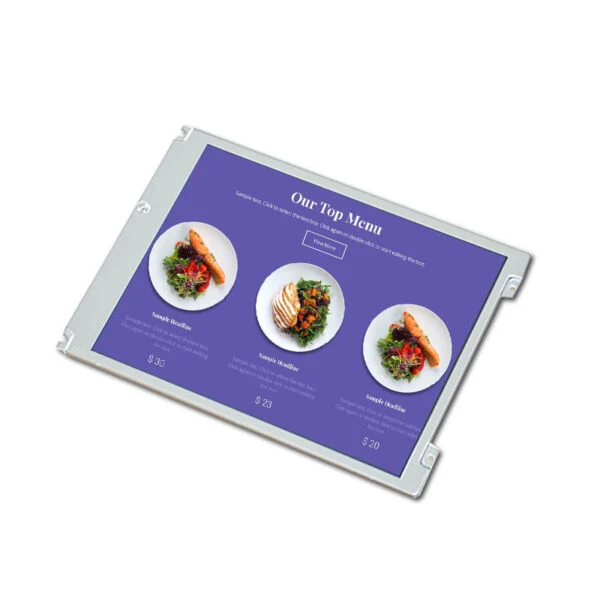

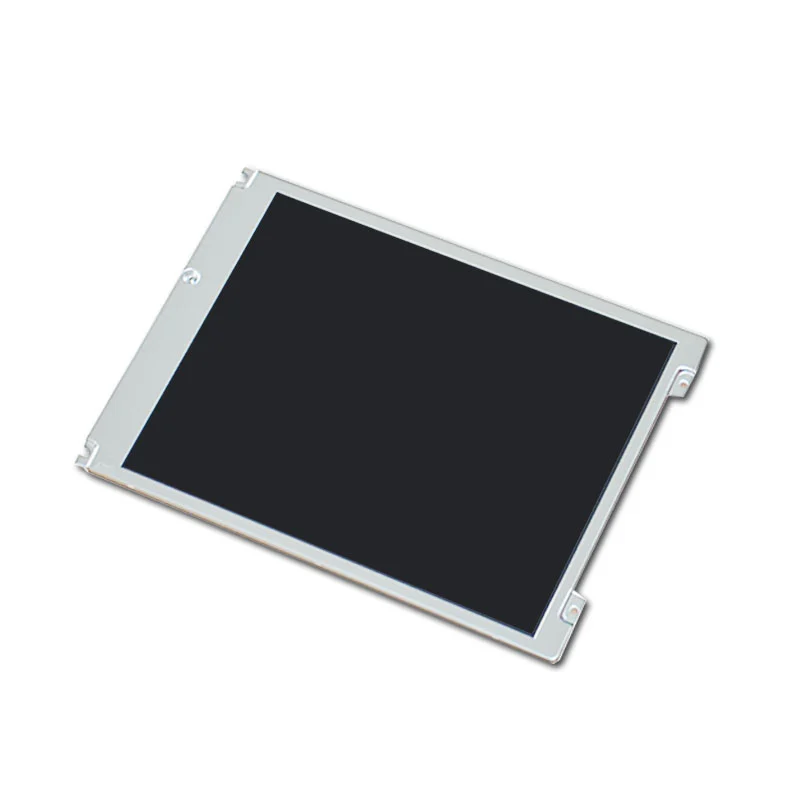

AUO A080XTN01.5 General Description
Here are the key points about this AUO A080XTN01.5 industrial Screen :
700:1 High Contrast: Enhances text/icon clarity in medical monitors and logistics terminals
40-pin LVDS Compatibility: Direct integration with industrial PCBs, eliminating adapter costs
Wide Thermal Tolerance: Stable operation from -10°C to 60°C for outdoor kiosks and factory automation
Proven Reliability: 15,000-hour backlight lifespan (tested at 300nits, 25°C ambient)
B070ATN01.2 Technical
- 300nits brightness with anti-glare surface (Haze 20%)
- 6 o’clock viewing direction for vertical-mount applications
- 60Hz refresh rate, 3.3V power input
- RoHS/CE compliant, supports PCAP touch integration
- Ideal for batch procurement in HVAC control systems, portable test instruments, and retail self-checkout solutions. Volume orders qualify for tiered pricing and 10-week lead time commitments. Customization options include EMI shielding, bezel modifications, and bonded touchscreens.
8″ LCD Specifications
| 8 inch TN LCD Specifications | |||
| Diagonal Size | 8.0″(Diagonal) | Contrast Ratio | 700 |
| Pixel Number | 1024×768 Pixels | Operating Temperature | -10~60℃ |
| Luminance | 300 | Storage Temperature | -20~70℃ |
| Module Size | 183(W)×141(H)×3.9(D) | LED Lifetime | 15K |
| Active Area | 162.048(W)×121.536(H) | Touchscreen Support | Without |
| Viewing Direction | TN | Power Supply | 3.3v |
| View Angle(U/D/R/L) | 70/70/65/65 | Display Type | Color TFT |
| Interface | LVDS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
