Description
47.6 inch TFT LCD Monitor Screen Monitors main features
Here are the key points about this 47.6 inch TFT LCD Monitor :
- 178° ultra-wide viewing angle, 1200:1 high contrast ratio
- High-definition picture quality, smooth playback

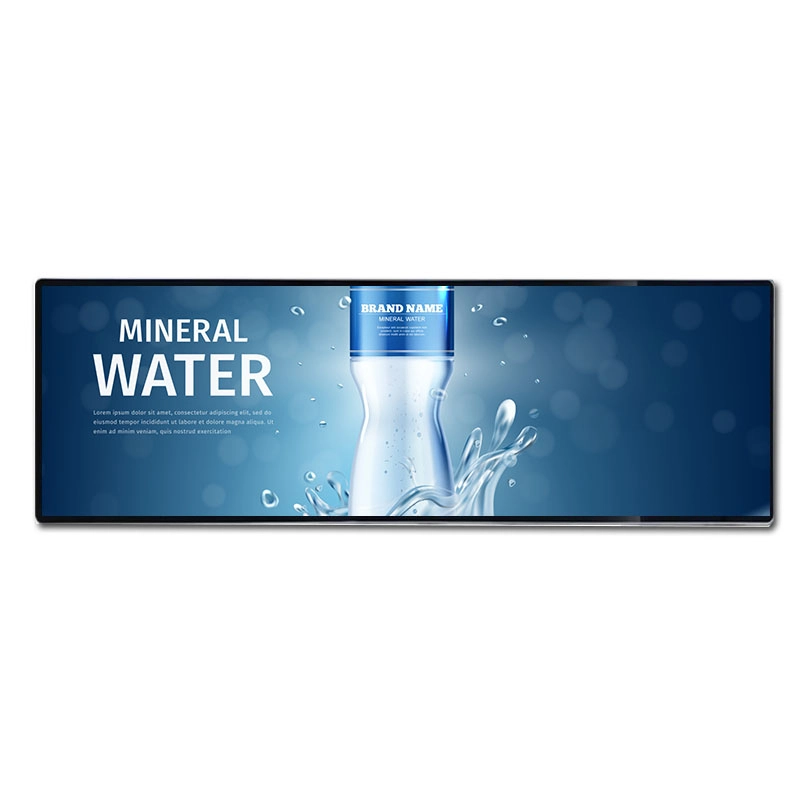

- Long-strip display, can be hung horizontally or vertically

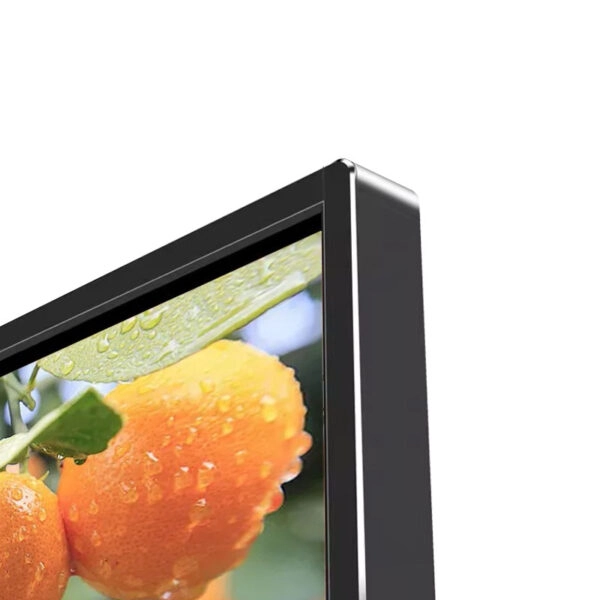

- Sheet metal frame, protects screen from bumps
- Brightness 700cd/m2 adjustable, appearance color customizable, driver motherboard solution customizable
Typical Application Scenarios of 47.6 inch LCD
Com’l Retail & Ad: Ultra-long window/shelf ad screens, multi-screen splicing for chain stores
Transp. & Public: Subway/HSR platform timetables, airport security guidance
Ind’l & Data: Production line monitoring, transportation hub command center splicing
Catering & Service: Restaurant ultra-long menu screens, hotel lobby info guides
Office & Design: Multi-task split-screen work, wide-screen design previews
Ent. & Experience: Theme park immersive installations, bar/nightclub backdrop screens
47.6 inch Stretched Bar Display Specification
| 47.6 inch Stretched LCD monitors LCD Display | |||
| Screen Size | 47.6 inch | Luminance | 700 cd/m2 |
| Active Area | 1189.44*223.02(mm) | Contrast Ratio | 1200:01:00 |

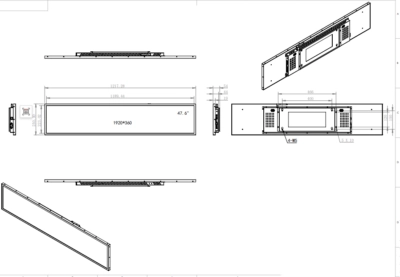

| Outline | 1217.28*250.5*44(mm) | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Screen Type | a-Si TFT-LCD | Color Depth | 16.7M 68% NTSC |
| Pixel Number | 1920*360 | Response | 9 (Typ.)(G to G) ms |
| Aspect Ratio | 3:01 | Pixel Pitch | 0.6195×0.6195 mm |
47.6 inch Stretched Bar LCD Mainboard
| 47.6 inch Stretched LCD monitors Mainboard | |||
| CPU | A40 | Ram | 1G |
| O/S | Andriod 7.1 | Flash | 8G |
| Interface | Audio/RJ45/HDMI/USB*2/TF/DC IN | ||
Stretched Bar LCD Monitor Machine
| 47.6 inch Stretched LCD monitors Machine | |||
| Appearance and Structure | Sheet Metal | Storage Temperature | -20℃~60℃ |
| Color | Black | Installation method | Wall hanging |
| Peripheral | WIFI/Speaker*2 | Net weight | 16Kg |
| Power supply | AC100~230V | Corton size | |
| Power consumption | ≦70W | Number of boxes | 2PCS/Corton |
| Operating Temperature | 0℃~50℃ | Corton weight | 35Kg |
Miqidisplay LCD Monitors displays are thinner and more energy-efficient than the old-fashioned CRT displays, featuring excellent color reproduction and brightness. Our offerings include stretched digital signage/knob screens, industrial displays, industrial panel computers | X86, and ultra-thin portable displays. They are also applicable to home appliances, white goods, POS, home and industrial instruments, A/V, and medical devices .
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
