Description
3.5 inch high brightness TFT LCD display Description
Here are the key points about this 3.5 inch high brightness TFT LCD display :
- Product Specs: 3.5-inch high brightness TFT LCD display, 320×240 resolution, 1000 nits ultra-high brightness for excellent sunlight readability, designed for stable operation in -20℃ to 70℃ environments (passes extended -30℃ to 80℃ testing)
- Applications: Ideal for demanding industrial and embedded applications, including industrial control systems, outdoor handheld devices, smart terminals, and HMI applications exposed to temperature fluctuations

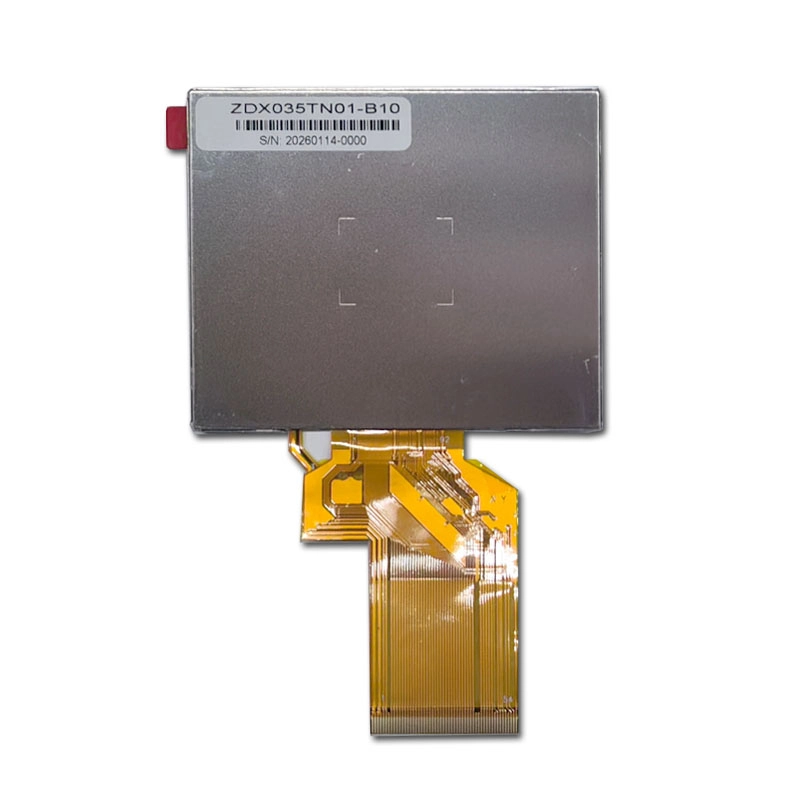

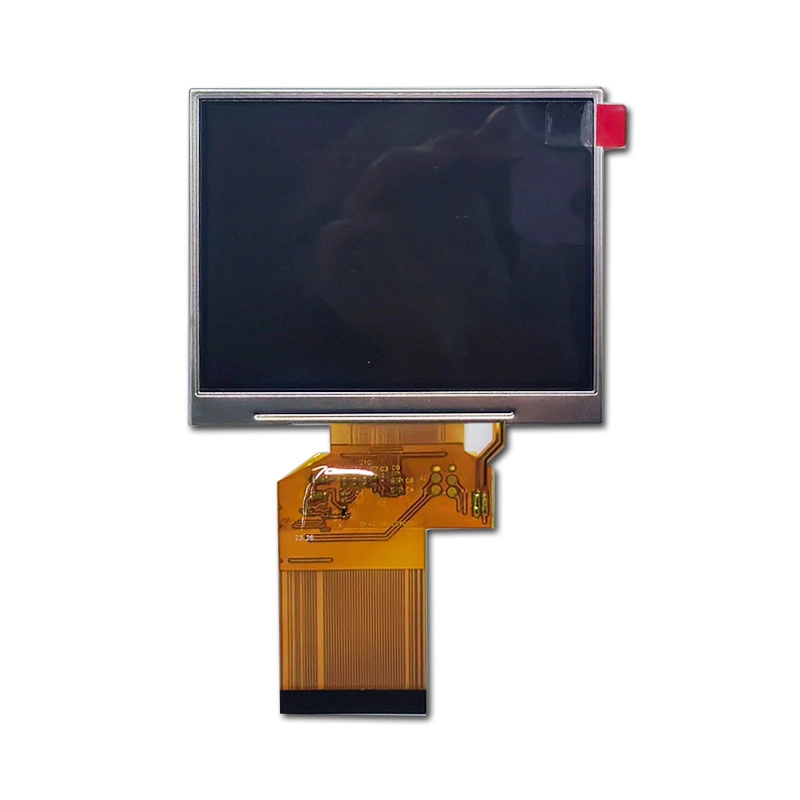

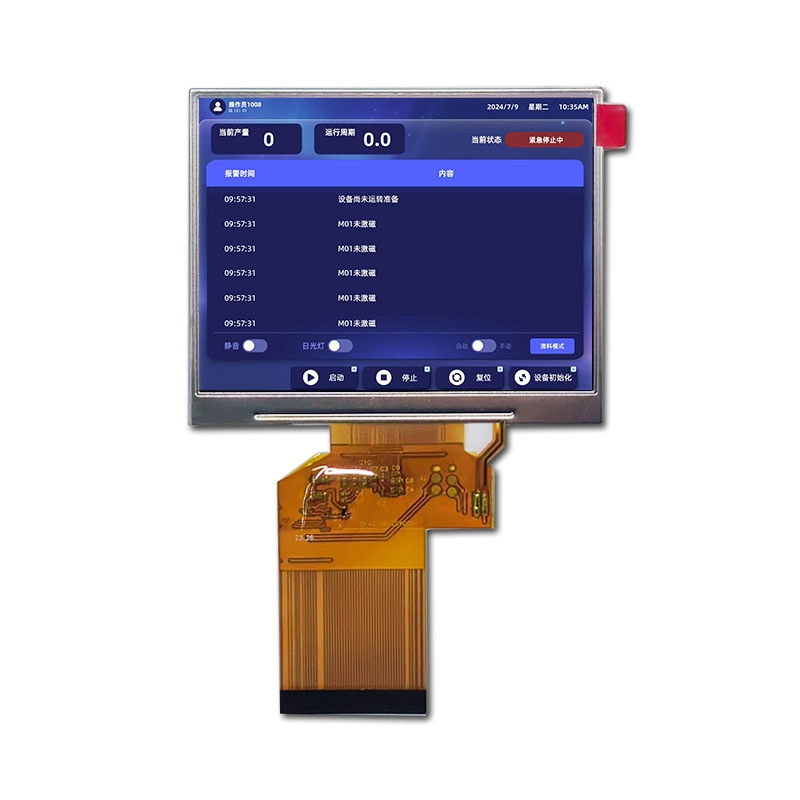

3.5 inch high brightness TFT LCD display
| 3.5 inch high brightness TFT LCD display Specifications | |||
| Model Number | ZDX035TN01-B10 | Operating Temperature | -20~70 |
| Size | 3.5 | Storage Temperature | -30~80 |
| Resolution | 320*240 | Contrast Ratio | 400:1 |
| Outline Dimension | 76.9*63.9*3.26 | LED Lifetime | 30000 |
| Active Area | 70.08*52.56 | Touchscreen Support | Without(customization available) |
| Brightness(cd/m²) | 1000 | Power Supply | 3.3V |
| Interface | RGB | Display Type | Color LCD |
| View Direction | TN | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
