Description
24.3 inch Stretched LCD Display Description
Here are the key points about this 24.3 inch Stretched LCD Display :
- Product Specs: 24.3 inch Stretched LCD Display , LED backlight (300–500 cd/m² brightness), 1920×508 resolution, 1200:1 typical contrast ratio

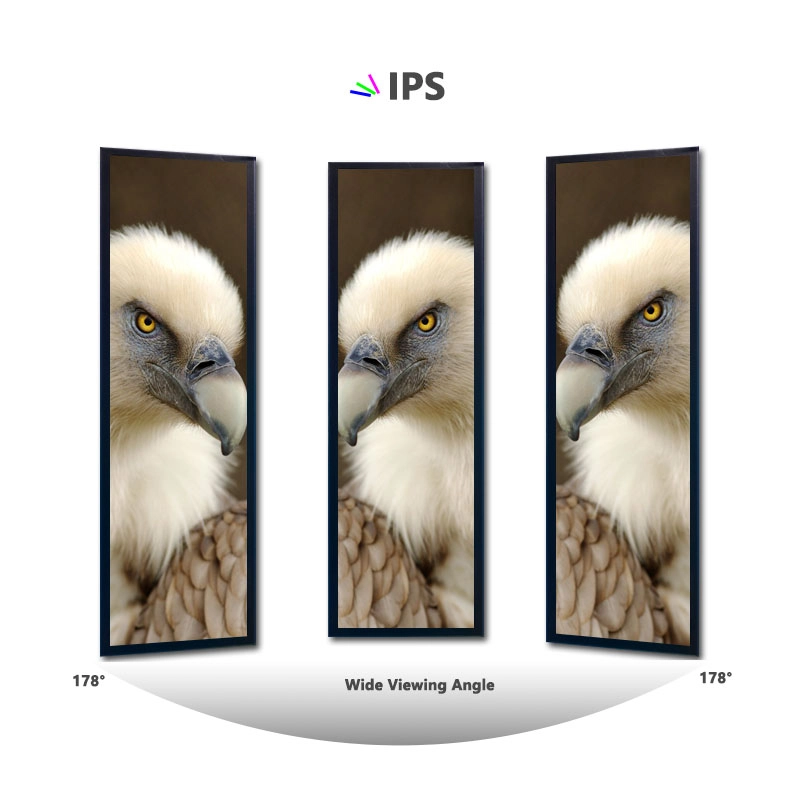

- Display Performance: 89° all-directional wide viewing angles, 8 ms (GtoG) fast response time, 16.7 million colors (1.07 billion color option available)

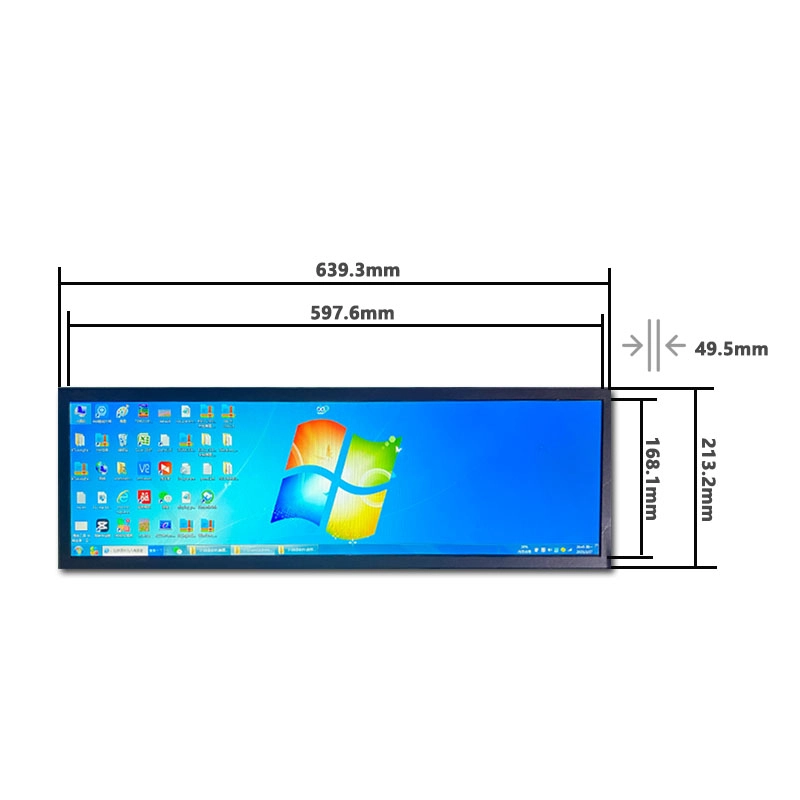

- Physical Parameters: Durable sheet metal frame; active area (597.6 mm × 168.1 mm); overall dimensions (639.3 mm × 213.2 mm × 49.5 mm); black shell (customization options available)
24.3″ Stretched LCD Monitors Application
- Hardware Configuration: A40 CPU, 1GB DDR3 memory, 16GB built-in storage, Android 7.1 OS
- Network Connectivity: Ethernet (100M adaptive, 1 RJ45 port), Wi-Fi support
- Supported Formats: Video (WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4); Image (BMP, JPEG, PNG, GIF)
- Ports & Interfaces: 2 USB 2.0 ports, 3.5mm audio jack (input/output), 3 serial port sockets (≥1 RS232), 1080P output via RS232 interface
24.3″ Stretched LCD Monitors Product Specifications
| 24.3″ Stretched LCD Monitors Product Specifications | |||
| Diagonal Size | 24.3″(Diagonal) | Video Format Support | wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4 |
| Pixel Number | 1920*540 Pixels | Image Format Support | BMP、JPEG、PNG、GIF |
| Active Area | 597.6mm (H) x168.1mm (V) | USB | 2 USB 2.0 |
| Outline Dimensions | 639.3mm*213.2mm*49.5mm | Ethernet | 3 serial port sockets (support at least RS232*1) |
| CPU | A40 | HDMI | 1 RJ45, 100M adaptive Ethernet |
| Memory | 1GB DDR3 | RS232 | 1, support 1080P output |
| Operating System | Android 7.1 | Touch | Without |
| Network support | Ethernet, WIFI | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
