In the world of new screen tech, the TFT LCD shines bright as a key part of fresh ideas. It powers many things, from control boards in factories to picture machines in hospitals. As a top TFT LCD manufacturer and supplier, Miqidisplay gives out good panels that fit right into tough jobs.
TFT LCD tech has changed how we see screens by giving better pictures, less power use, and many ways to use it. With more than 20 years of know-how in Shenzhen, China, Miqidisplay works hard on TFT, IPS, OLED, and touch screens made for areas like cars, health care, and factory work. The firm’s strong promise to marks like TS-16949, ISO-9001, and ISO-14001 makes sure each TFT LCD panel hits hard world rules. This helps with 90% on-time sends to over 200 countries and places.
What is a TFT LCD?
Definition and Core Concept
A TFT LCD, or thin film transistor liquid crystal display, stands as one of the quickest growing screen types right now. The thin film transistor (TFT) acts like a special chip part that makes screens work better, smaller, and cheaper. It joins with its own chip traits. So, the TFT LCD runs as an active matrix screen. This lets each pixel get its own control, not like old passive ways. Such active rule boosts the chip’s good points. And it brings clearer images plus quicker reply times.
Industrial Relevance and Applications
To learn more about TFT basics, sites on TFT tech show its main spot in today’s screens. Miqidisplay has a big list of TFT LCD displays. These go from normal panels to ones you can read in bright sun for outside factory jobs. Such screens have grown a lot in use since they joined flat panel tech, mainly liquid crystal displays (LCDs). This change pushed out old cathode-ray tube (CRT) setups. Those were big and used more power. Now, high-res TFT LCDs rule in computer screens, smart phones, and built-in systems inside machines.
Scalability and Product Range
People like TFT LCDs because they grow easy and fit many needs. As a reliable supplier, Miqidisplay sells panels from small 1.53-inch round TFT screens for tiny tools to big 55-inch tough units for control spots. These fixes hold resolutions up to 4K. They add capacitive touch and links like MIPI and SPI. This makes them great for car dashboards and health spare parts.
Structure of TFT LCD
Layer Composition

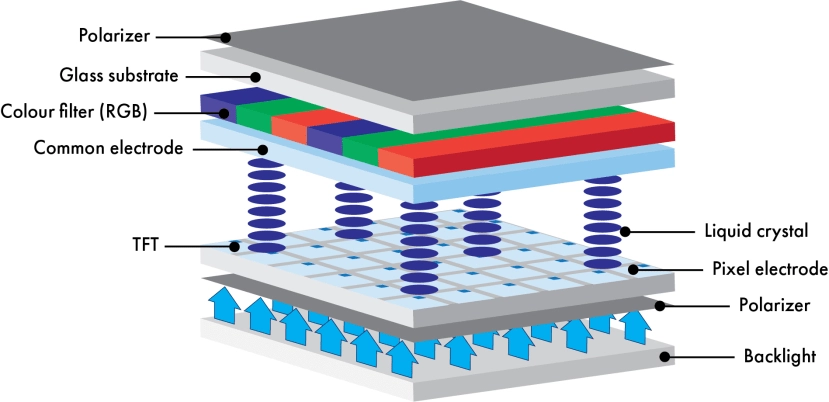

The build of a TFT LCD has three main layers. Each one gets made with care for best light play and exact pixels. Two glass bases hold these layers like a sandwich. One base has TFTs built in. The other holds an RGB (red, green, blue) color filter. Right in the middle sits the liquid crystal layer. It changes how light goes through in a lively way.
Functional Components
This non-crystal silicon lets TFTs match one by one with small pixels on the other layer. They control voltage just right for each. Pixel electrodes come from clear indium tin oxide (ITO). These link the base and liquid crystal layer. They let power flow but keep the view open.
Light Control Mechanism
The top glass base keeps the pixel group and RGB color filter group. Counter electrodes use ITO too. They line up across from pixel electrodes to finish the path over the liquid crystal layer. Polarizers wrap the outside of both bases. They only let light waves that match certain ways go through. Light that does not match gets stopped. This gives the dark look of LCD screens when off.
Liquid Crystal Alignment
Liquid crystals fill the space between. They move like liquid but stay ordered like crystals. Many chemical mixes exist. But alignment layers make a 90-degree twisted nematic shape when nothing happens. This sets up “normal white” mode. Here, matched light goes free. Power fields come from low-power electrodes. They break the twist and line up molecules again to change light flow. Part voltages make gray shades via the twisted nematic effect. This cheap way switches pixels fast.
Miqidisplay’s Structural Enhancements
Miqidisplay adds better parts to this build. They include IP65 waterproofing and 1000-nit brightness for health screens. This keeps things clear in clean rooms. Take the company’s 8-inch industrial touch IPS LCD panels. These use glass-on-film-on-film (G+F+F) capacitive touch. It has over 85% clear view. They bond it with optically clear adhesive to cut twists.
TFT LCD Driving
Principle of Operation
To run a TFT LCD, it uses the field-effect transistor (FET) idea. TFTs are one kind of this. Voltage on the TFT gate changes the flow from source to drain. It sends drive power to linked small pixels. This gives exact light rule. It matters for moving pictures in big jobs.
Miqidisplay’s Driving Solutions

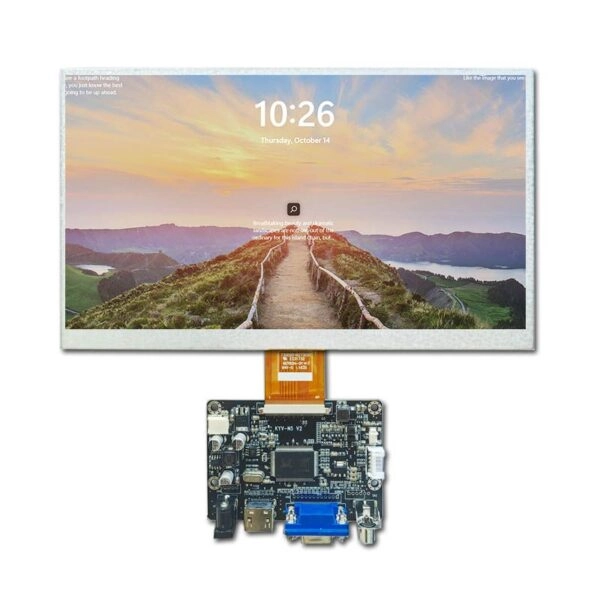

Miqidisplay’s TFT modules include stretched bar LCDs. Look at the 13.1-inch one with 1920×932 resolution. They use this drive way for bright moves and own graphics. As a manufacturer, Miqidisplay puts in easy driver boards. These take HDMI/VGA inputs and work with Arduino for quick tests.
Architecture of a TFT Pixel
Sub-Pixel Composition
Every pixel in a TFT LCD splits into three small pixels—red, green, and blue. Each acts like its own holder with own layers. This three-part plan lets lots of colors by changing light strength through the RGB group.
Customization and Industry Use
Miqidisplay knows how to change these builds for special wants. Think wide-heat LCDs for factory machines or bendy OLED mixes for car controls. The 1.53-inch circular TFT screen uses SPI links. It gives round looks with quick replies. This fits well for gauge groups.
Evolution and Advanced Variants
From TN to IPS
The twisted nematic effect costs little and acts fast. But it has limits in true colors and view angles. In-plane switching (IPS) fixes this. It lines crystals flat with electrodes. This makes light paths simple for better side views and color truth. At first slower, new IPS types fix wait times. Miqidisplay’s 15.6-inch portable monitors keep good work.
Backlighting and Transparency
Back lights come from LEDs or new OLEDs. They light from back or sides. Miqidisplay’s transparent OLED signs, like the 55-inch industrial-grade model, hit 40% clear and 120Hz refresh rates. This mixes show with see-through for things like train guides.
Extended Product Portfolio
As a manufacturer, Miqidisplay goes past normal TFT LCDs. They cover AUO and Innolux panels with open-frame plans and touch choices. These serve vending, POS, and digital signs. Own fixes add M12 connectors and IP67 covers. They guard panels in hard spots for industrial HMIs.
Continuous Innovation
This deep layer work shows why TFT LCDs stay needed. Miqidisplay’s new ideas go from 1.03-inch flexible OLEDs with 312×98 resolution to 30-inch fancy clear units. They help friends set tough, true displays. With 24/7 help and fit engineering, the firm makes sure sets that boost work good.
FAQ
What is the primary advantage of TFT LCD over traditional CRT displays?
TFT LCDs give lighter weight, less power use, and higher resolution. This makes them good for small factory and health jobs.
How does Miqidisplay ensure quality in its TFT LCD manufacturing?
Miqidisplay sticks to TS-16949, ISO-9001, and ISO-14001 marks. Their spots in Shenzhen bring over 20 years of skill in own display fixes.
Can Miqidisplay TFT LCDs integrate touch functionality?
Yes, panels like the 8-inch industrial IPS model have capacitive touch with ≥85% clear view. They support G+F+F plans for exact touch in HMIs.
What industries benefit most from Miqidisplay’s TFT LCD supplies?
Main areas cover health (germ-free glass, 1000-nit brightness), cars (shake-proof controls), and factory (IP67-rated panels for control systems).
Are custom sizes available for Miqidisplay TFT LCD displays?
For sure; choices go from 1.03-inch flexible units to 55-inch stretched bars. They come with own resolutions and links like MIPI or HDMI.
Empower Your Business with Miqidisplay – The Premier TFT LCD Manufacturer and Supplier
As a focused TFT LCD manufacturer and supplier, Miqidisplay gives friends new, changeable display fixes. These make making things smooth and lift user fun. You might add high-bright panels for health tools or tough HMIs for factory work. Miqidisplay’s skill makes growth easy and rules met.
Ready to get steady TFT LCD displays? Reach Miqidisplay’s sales group now at mary@miqidisplay.com. Ask for fit quotes, test builds, or big orders.
Team with Miqidisplay – where new ideas meet factory truth.
