G104X1-L04 General Description
Here are the key points about this Innolux G104X1-L04 Industrial-Grade IPS LCD :

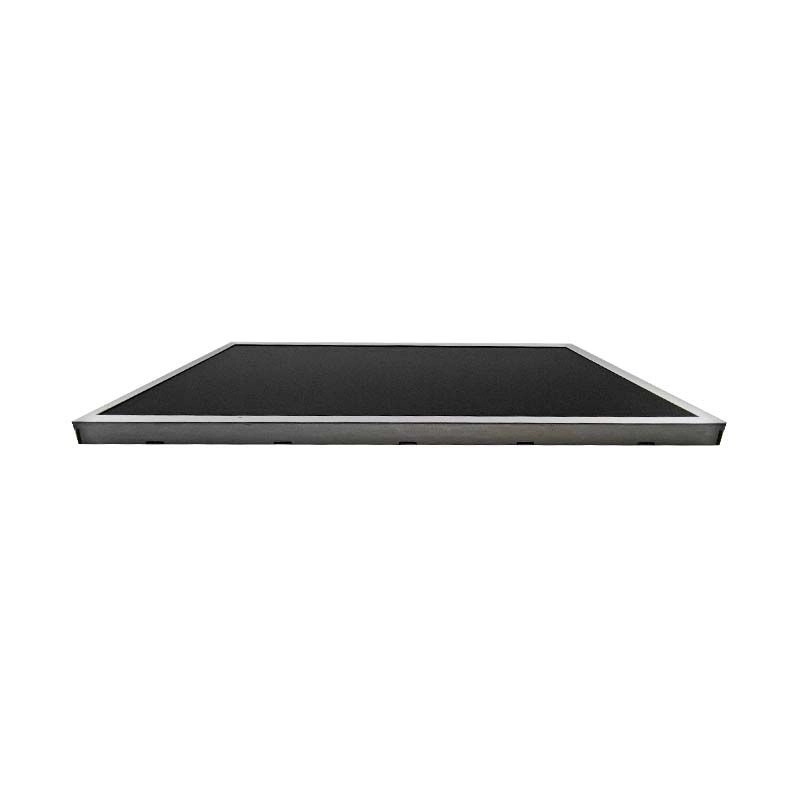

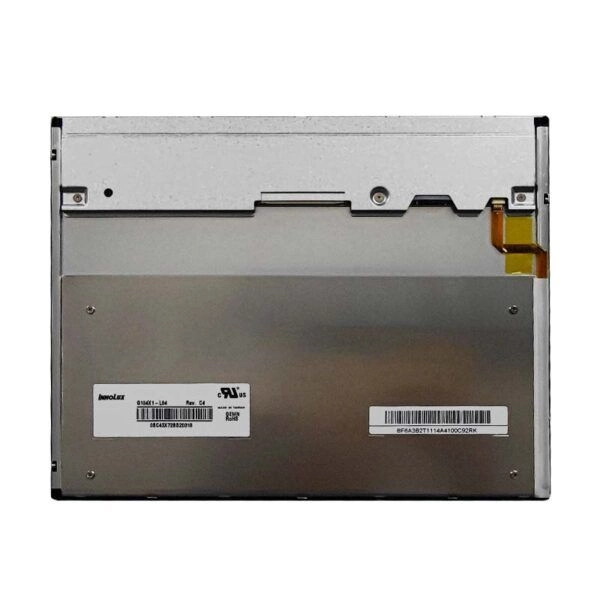

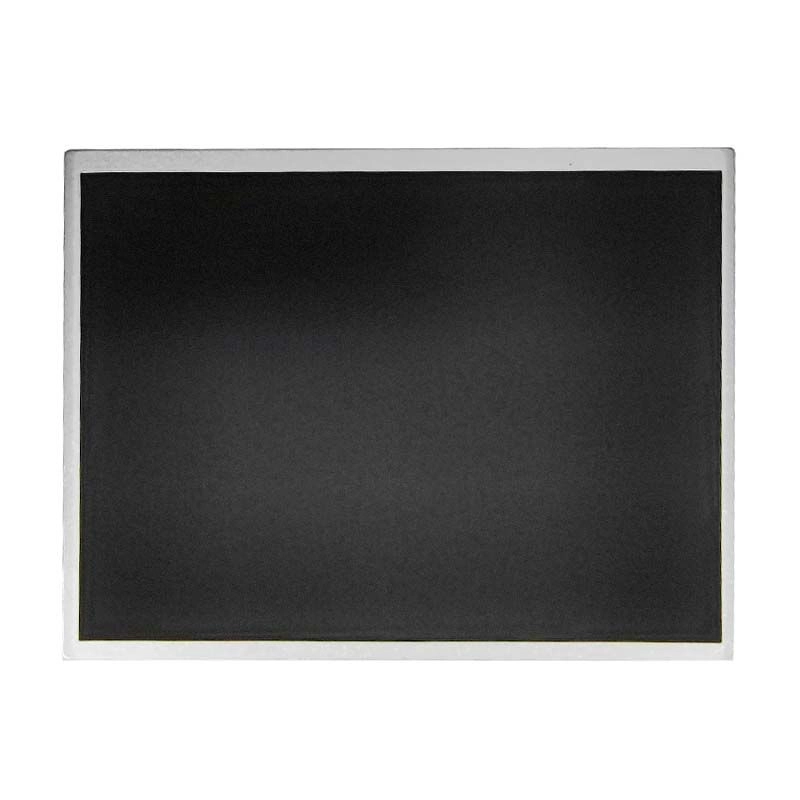

The Innolux G104X1-L04 is a 10.4-inch industrial IPS LCD with 500cd/m² ultra-high brightness, enabling sunlight-readable performance for outdoor applications.
It features 1024×768 XGA resolution and a 1000:1 contrast ratio, ensuring razor-sharp details in petrochemical control panels and desert solar farms.
Its IPS technology maintains 88° viewing angles in all directions, crucial for collaborative robotic arms and emergency vehicle consoles.
With an expanded operational range of -30°C to 80°C (storage: -30°C~80°C), this 3.3V LVDS-interface display withstands Arctic mining equipment and foundry furnace HMIs.
The compact 225.5×176.3×9.2mm design integrates into ATEX-certified systems, while the 30,000-hour LED lifespan ensures 24/7 reliability in port cranes and oil rig monitoring stations.
Innolux G104X1-L04 Industrial-Grade IPS LCD Application & Performance
Engineered for extreme conditions, this display excels in offshore wind turbine controls, military field computers, and high-altitude railway signaling. The 500nit brightness pierces through desert glare for mining truck dashboards and airport runway status boards. IPS color consistency benefits aircraft maintenance diagnostics and color-critical food grading systems. LVDS stability prevents signal loss in electromagnetic-heavy environments like power substations and welding robots. Withstands rapid temperature swings in cryogenic storage monitors and steel mill interfaces. 9.2mm ruggedized frame resists vibration in construction machinery and armored vehicle systems. IP67 optional version available for marine navigation equipment and desertified agriculture controllers.
10.4″ Product Specifications
| 10.4″ Product Specifications | |||
| Diagonal Size | 10.4 inch | Contrast Ratio | 1000:01:00 |
| Pixel Number | 1024×768 | Operating Temperature | -30 ~ 80 °C |
| Luminance | 50000% | Storage Temperature | -30 ~ 80 °C |
| Module Size | 225.5×176.3×9.2 | LED Lifetime | 30000 |
| Active Area | 210.432×157.824 | Touchscreen Support | Without |
| Viewing Direction | IPS | Power Supply | 3.3V |
| View Angle(U/D/R/L) | 88/88/88/88 | Display Type | Color TFT |
| Interface | LVDS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
