G104S1-L01 General Description

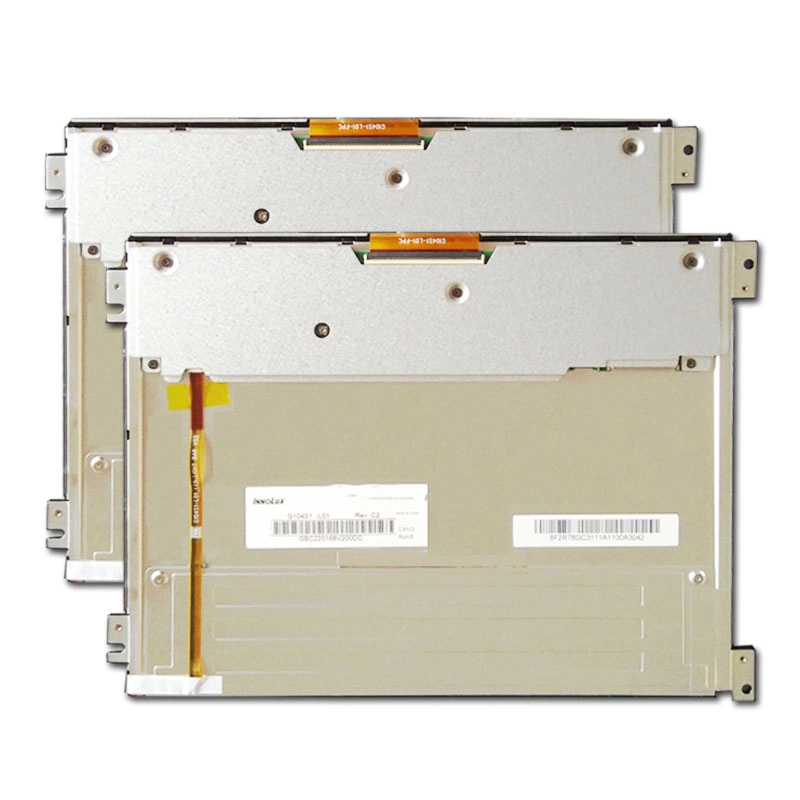

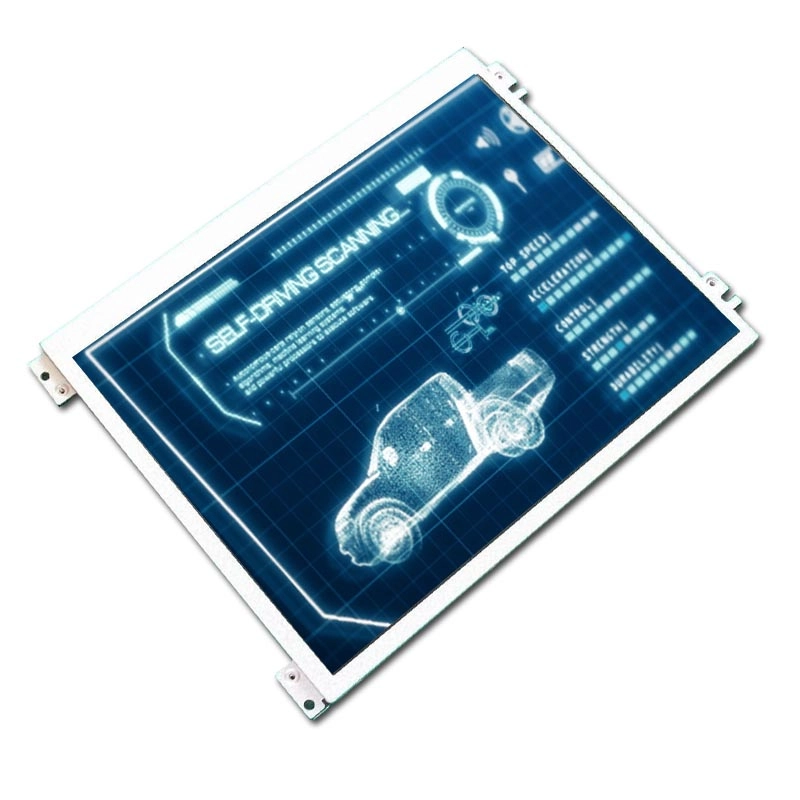

Here are the key points about this Innolux G104S1-L01 TN LCD Display :
Model and Panel Type：The Innolux G104S1-L01 is a 10.4-inch TN LCD featuring 400cd/m² high brightness and 700:1 contrast ratio for clear visibility in challenging lighting.
Environmental Adaptability：Engineered for industrial durability, it operates reliably across -20°C to 70°C with extended storage tolerance (-40°C~80°C).
Dimensions and Interface：Its ultra-slim 7.3mm profile (243×184mm) integrates LVDS interface for stable signal transmission.
Power Consumption and Display Performance：3.3V low-power design optimizes energy efficiency, while the 80/80/70/70 viewing angle TN panel delivers consistent color performance for process control systems.
Lifespan and Structural Features：With 30,000-hour LED lifespan and non-touch rugged construction, it withstands vibrations in mobile applications. IP54-rated optional enhancement is available for dust/moisture resistance, ideal for embedded systems requiring reliable 800×600 resolution in compact spaces.
Innolux G104S1-L01 TN LCD Display Application & Performance
Built for industrial automation, this display excels in forklift terminals, warehouse robotics, and production line HMIs. The 400nit brightness ensures readability in outdoor payment systems and solar farm monitors. Withstands temperature cycling in food processing displays and textile machinery. LVDS interface prevents EMI interference in electric vehicle dashboards and airport baggage systems. Slim 7.3mm design fits space-constrained medical analyzers and vending machine interfaces. Certified for 24/7 operation in semiconductor fab equipment and cold storage inventory trackers. Shock-resistant structure maintains performance in construction vehicle GPS consoles, while 3.3V efficiency suits portable field maintenance devices.
G104S1-L01 General Description
| G104S1-L01 10.4″ TN TFT LCD Panel | |||
| Display Size | 10.4 inch (264.2 mm diagonal) | Contrast Ratio | 700:1 (typical) |
| Native Resolution | 800 × 600 (SVGA) | Operating Temperature | -20℃ to +70℃ |
| Brightness | 400 cd/m² (typical) | Storage Temperature | -40℃ to +80℃ |
| Module Dimensions | 243(W) × 184(H) × 7.3(D) mm | LED Backlight Lifetime | 30,000 hours (minimum) |
| Active Area | 211.2 × 158.4 mm | Touchscreen | Not included |
| Panel Technology | Twisted Nematic (TN) | Power Supply | 3.3V DC |
| Viewing Angles | 80° (U/D) / 70° (L/R) | Display Type | Color TFT LCD |
| Signal Interface | LVDS (20-pin connector) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
