Description
G101ICE-LM1 General Description

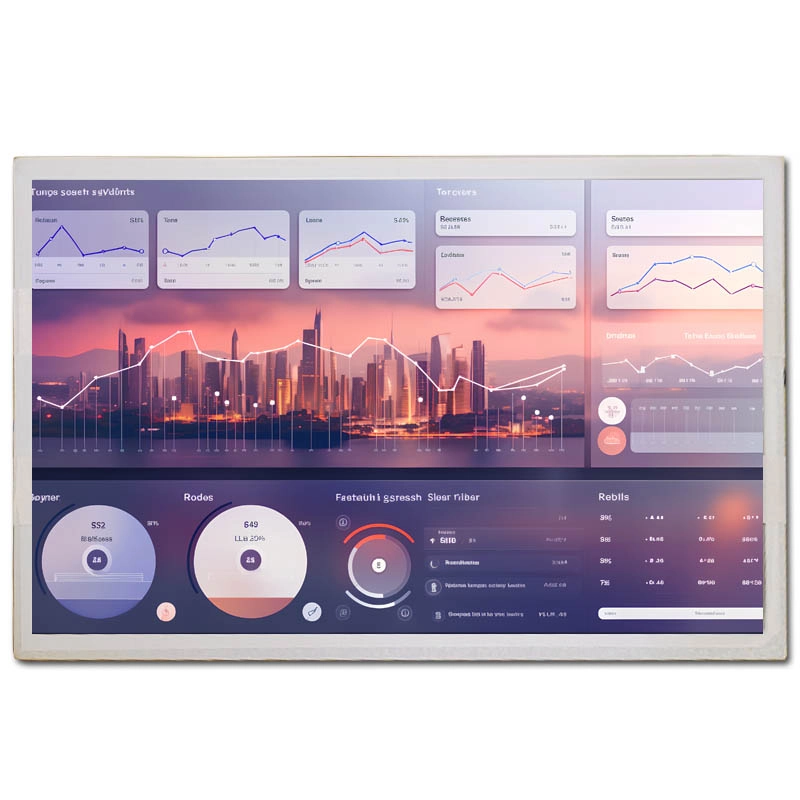

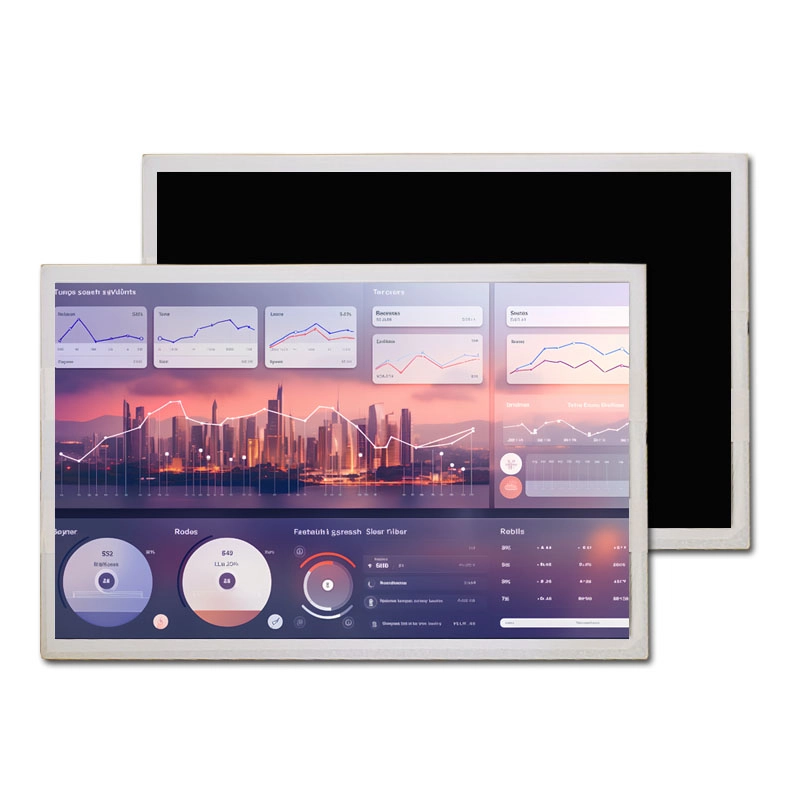

Here are the key points about this Innolux G101ICE-LM1 10.1 inch Ultra-Slim IPS LCD :
Model and Panel Type：The Innolux G101ICE-LM1 is a 10.1-inch ultra-thin IPS LCD panel optimized for space-sensitive commercial applications.
Display and Dimension Specifications：With a remarkably slim 2.8mm profile and 1280×800 resolution, it delivers crisp visuals while maximizing installation flexibility.
Viewing Angles and Display Performance：The 88/88/88/88 ultra-wide viewing angle ensures consistent color accuracy for multi-user environments like retail kiosks and conference rooms. Operating at 350cd/m² brightness with 800:1 contrast ratio, it balances energy efficiency (5.0V power) with clarity for indoor settings.
Environmental Adaptability：Engineered for reliability, it withstands -10°C~60°C temperatures and offers 50,000-hour LED lifespan.
Interface and Integration Advantages：The LVDS interface ensures stable signal transmission for POS systems and digital signage, while the lightweight design (227.4×147.7mm) simplifies integration into wall-mounted or portable devices.
Innolux G101ICE-LM1 10.1 inch Ultra-Slim IPS LCD Application & Performance
Ideal for indoor digital menu boards, medical monitors, and office systems. 350cd/m² brightness suits supermarket labels and hotel screens. 2.8mm thickness fits smart vending machines. Wide temp range works for pharmacy/warehouse setups. IPS clarity aids co-working spaces and ed tablets. LVDS resists EMI in ATMs and self-checkout. Slim design suits IoT conference schedulers and bezel-free retail signage.
G101ICE-LM1 General Description
| G101ICE-LM1 10.1″ IPS TFT LCD Panel | |||
| Display Size | 10.1 inch (256.5 mm diagonal) | Contrast Ratio | 800:1 (typical) |
| Native Resolution | 1280 × 800 (WXGA) | Operating Temperature | -10℃ to +60℃ |
| Brightness | 350 cd/m² (typical) | Storage Temperature | -20℃ to +70℃ |
| Module Dimensions | 227.42(W) × 147.69(H) × 2.8(D) mm | LED Backlight Lifetime | 50,000 hours (minimum) |
| Active Area | 216.96 × 135.6 mm | Touchscreen | Not included |
| Panel Technology | In-Plane Switching (IPS) | Power Supply | 3.3V DC |
| Viewing Angles | 88° (All directions) | Display Type | Color TFT LCD |
| Signal Interface | LVDS (30-pin connector) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
