Description

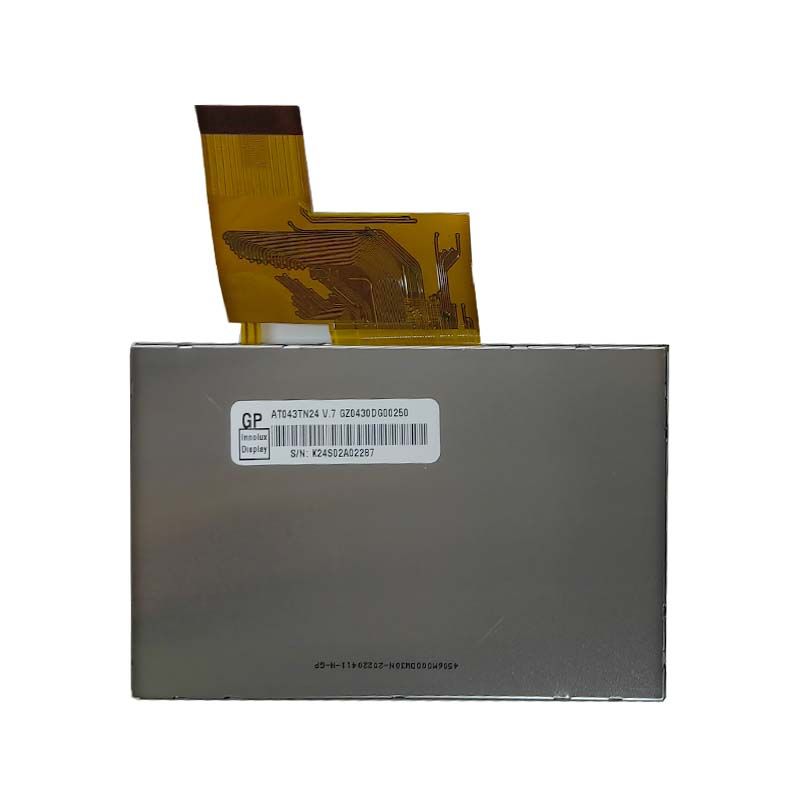

Innolux AT043TN24V.7 LCD Display Description
Here are the key points about this Innolux AT043TN24V.7 LCD Display :
Operating Temperature Range:Designed to operate in a wide temperature range of -20°C to 70°C, it ensures reliable performance in demanding environments.
Interface and Quality:With an RGB interface and a 40-pin FPC connector.This Original A grade display offers high quality and durability.
Applicable Scenarios:It is ideal for handheld devices, industrial control systems, and portable equipment where clarity and robustness are essential.
AT043TN24V.7 LCD Display Application
The Innolux AT043TN24V.7 display is well-suited for a variety of applications, particularly in automotive and portable device sectors. Its 4.3 inch size and robust features make it ideal for automotive displays, providing clear visuals for navigation and infotainment systems. The display’s high brightness of 500 cd/m² and wide viewing angles ensure excellent visibility in various lighting conditions, enhancing user experience in portable navigation devices and multimedia players like MP3 and PMP units. Additionally, its 4-wire resistive touch capability allows for intuitive interaction, making it suitable for handheld devices that require user input in industrial environments, where durability and reliability are paramount.
| 4.3″ TFT-LCD Product Specifications | |||
| Model Number | AT043TN24V.7 | Operating Temperature | -20~70 |
| Size | 103:12:00 | Storage Temperature | -30~80 |
| Resolution | 480(RGB)×272 | LED Lifetime | 20000 |
| Outline Dimension | 105.5×67.2×3.1 | Touchscreen Support | Without |
| Active Area | 95.04×53.856 | Contrast Ratio | 500:01:00 |
| Brightness(cd/m²) | 500 | Power Supply | 3.3V |
| Interface | RGB 40 | Display Type | Color LCD |
| View Direction | TN | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
