Description

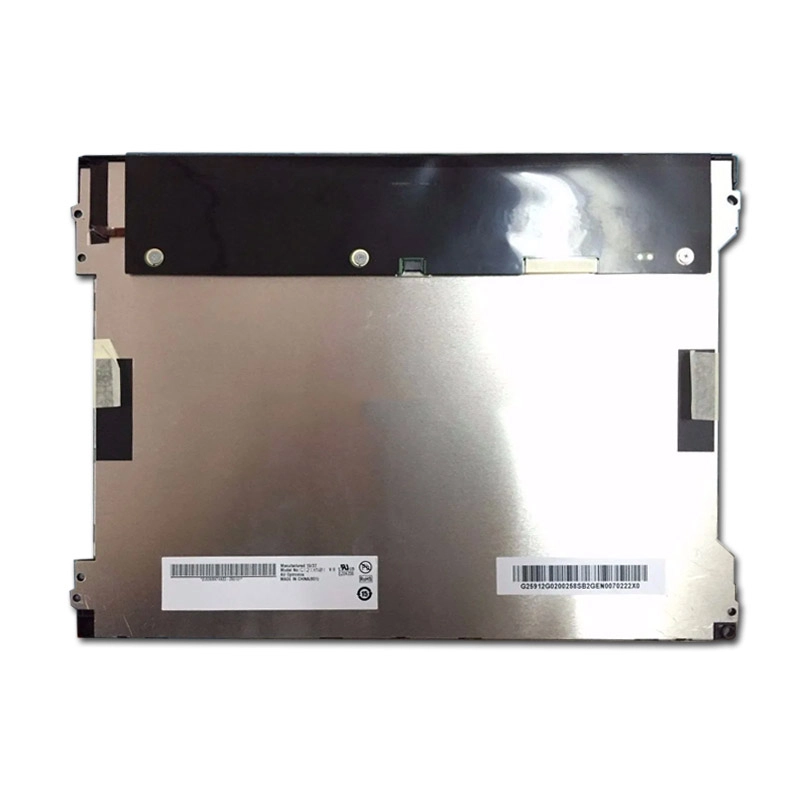

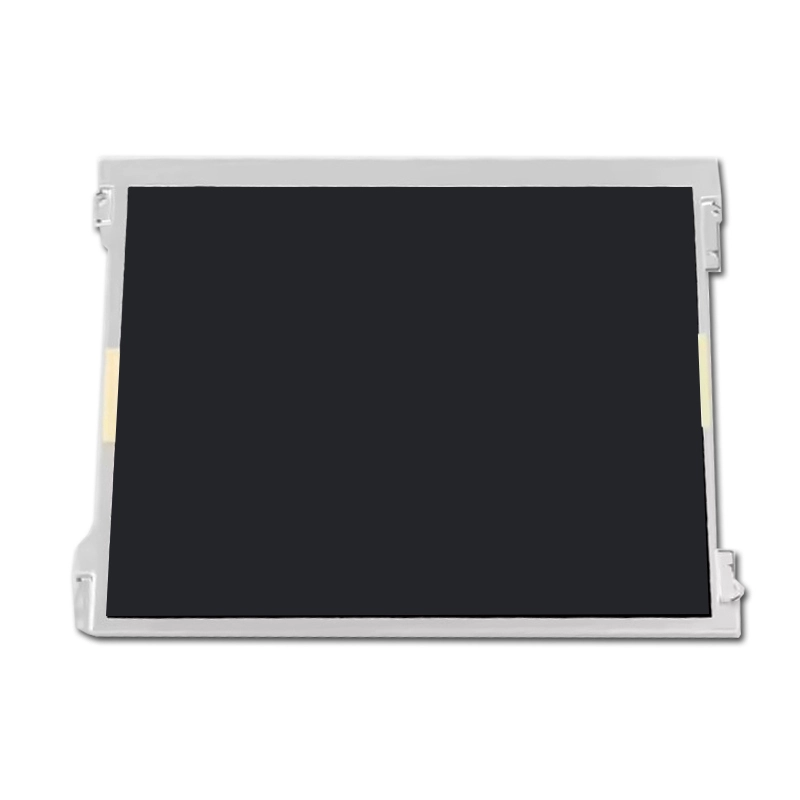

AUO LCD Panel g121xn01 v001 General Description
Here are the key points about this AUO g121xn01 v001 Industrial LCD :
- The AUO g121xn01 v001 Industrial LCD is a 12.1-inch a-Si TFT-LCD LCM with 1024×768 XGA resolution (105 PPI, RGB vertical stripe).
- It features a 245.76×184.32mm active area, 250.8×189.4mm bezel opening, and 279×209×9mm outline size with antiglare 3H hard coating.
- It offers 500 cd/m² (Typ.) brightness, 700:1 (Typ.) contrast ratio, 80/80/70/70 (Typ.) viewing angles (CR≥10), TN normally white transmissive mode, 25/10ms (Tr/Td, Typ.) response time, and supports 262K/16.2M colors (72% NTSC).
- Equipped with a 50K-hour 9S2P WLED backlight (with driver), it runs at 60Hz (up to 240Hz via MEMC).
- Weighing max 510g, it uses a 20-pin LVDS interface (3.3V input), and operates/stores at -30~85°C for industrial applications.
G121xn01 v001 Specifications
| G121XN01 V001 Specifications | |||
| Diagonal Size | 12.1 inch | Contrast Ratio | 700:1 |
| Pixel Number | 1024 × 768 (XGA) | Operating Temperature | -30°C to +85°C |
| Luminance | 500 cd/m² (typical) | Storage Temperature | -30°C to +85°C |
| Module Size | 279.0 × 209.0 × 9.0 mm | LED Lifetime | 50,000 hours |
| Active Area | 245.76 × 184.32 mm | Touchscreen Support | Without |
| Viewing Direction | 6 O’clock | Power Supply | 3.3V DC |
| View Angle | 80°/80°/70°/70° (U/D/L/R) | Display Type | Color TFT LCD |
| Interface | LVDS (1 channel) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
