Description

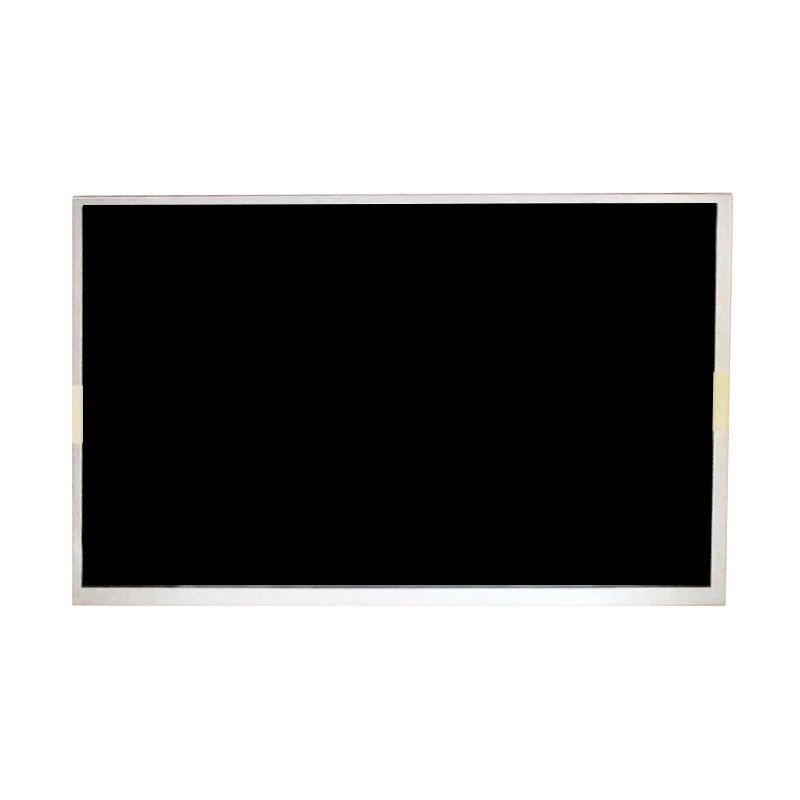

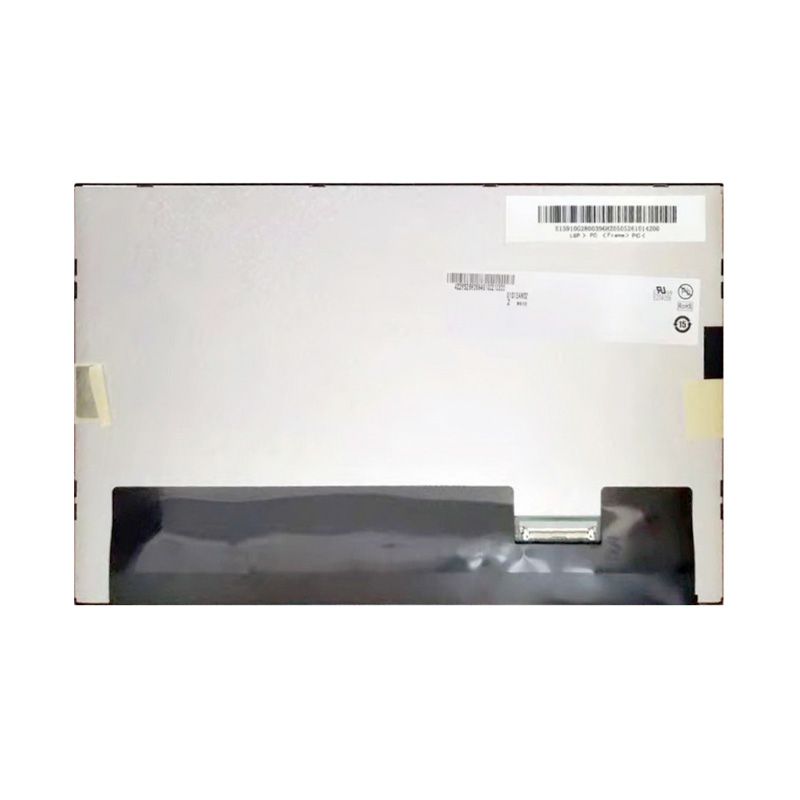

AUO G101EAN02.2 IPS LCD Display Key Features
Here are the key points about this AUO G101EAN02.2 IPS LCD Display :
Display Performance:Featuring a sharp 1280×800 resolution and 500 cd/m² brightness, it delivers crisp, vibrant visuals even under direct sunlight.The IPS panel ensures 89° ultra-wide viewing angles (RLUD) with consistent color accuracy, ideal for multi-user applications.
Environmental Adaptability:Built for durability, it operates reliably across a broad temperature range (-20°C to 70°C) and withstands thermal stress in industrial or outdoor settings.
Interface and Other Features:With an 800:1 contrast ratio and LVDS interface, it provides stable signal transmission and deep blacks for enhanced readability.
Appearance and Energy Consumption:The slim 7.75mm profile and compact outline (227.91×148mm) optimize space efficiency, while 3.3V low power consumption reduces energy costs.
Service Life:Designed for 50,000 hours of continuous operation, this display minimizes downtime in mission-critical systems.
Sunlight-Readable Screen Applications & Performance
The 10.1-inch AU Optronics G101EAN02.2 is ideal for industrial HMIs, medical devices, and transportation dashboards. Its high brightness and anti – glare feature suit outdoor signage, solar farm monitoring, etc. In manufacturing, the IPS panel aids quality control. Its wide – temperature tolerance works for freezer monitors and desert IoT. For logistics, the slim design is great for warehouse tablets. The 1280×800 resolution benefits aviation and diagnostics. The rugged build withstands vibration. LVDS compatibility helps integration, and 500nits brightness ensures readability in bright settings.
| 10.1″ TFT-LCD Product Specifications | |||
| Model Number | G101EAN02.2 | Operating Temperature | -20~70 |
| Size | 242:24:00 | Storage Temperature | -30~80 |
| Resolution | 1280×800 | LED Lifetime | 50000 |
| Outline Dimension | 227.91×148×7.75 | Touchscreen Support | Without |
| Active Area | 216.96×135.6 | Contrast Ratio | 800:01:00 |
| Brightness(cd/m²) | 500 | Power Supply | 3.3V |
| Interface | LVDS | Display Type | Color LCD |
| View Direction | IPS | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
