Description
G084SN05 V9General Description

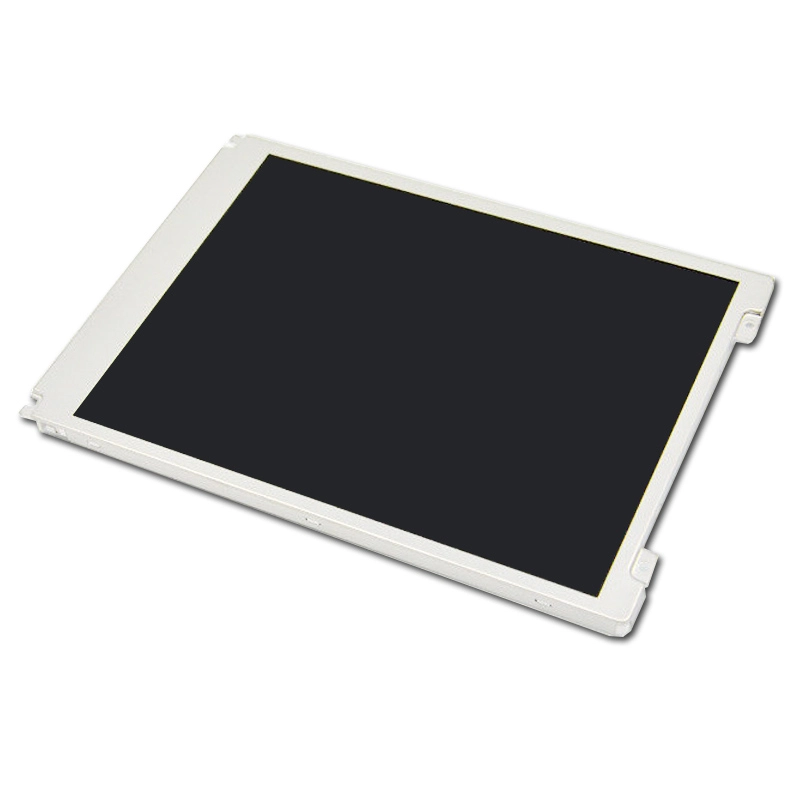

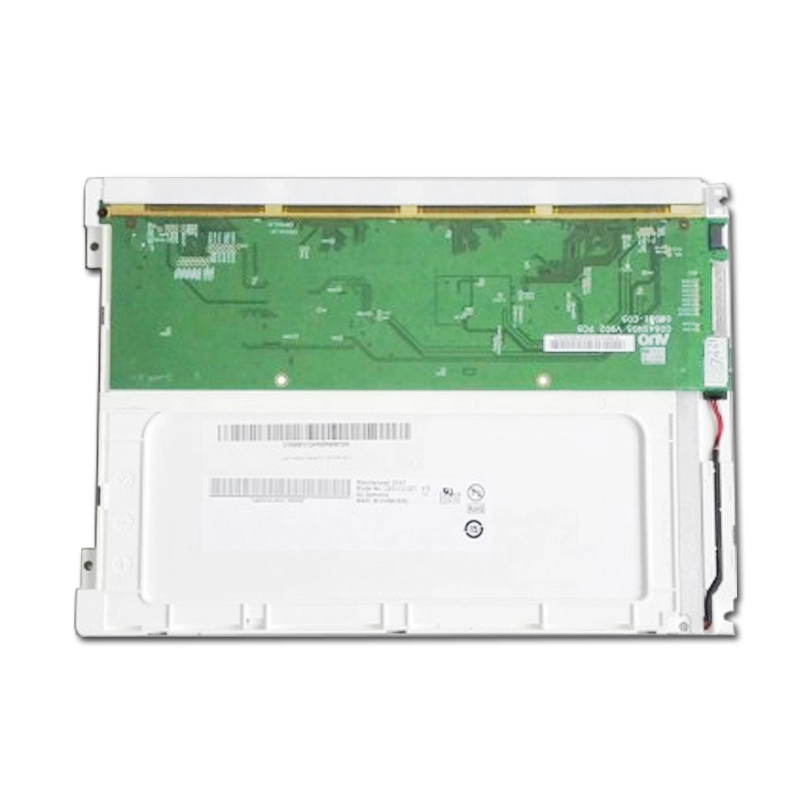

Here are the key points about this AUO G084SN05 V9 Industrial LCD :
- The AUO G084SN05 V9 Industrial LCD is an 8.4-inch a-Si TFT-LCD module with 800×600 SVGA resolution and 119 PPI.
- It features a 450 cd/m² brightness, 600:1 contrast ratio, and TN display mode.
- With antiglare 3H hard coating, 2-string WLED backlight (50K hours), and LVDS 20-pin interface, it supports 60Hz operation and up to 240Hz via MEMC.
- Weighing 250g, it’s designed for industrial use, operating and storing at -30~85 °C, and comes without a touch screen.
- Reliable AUO Original Panel: Industrial-grade with -30~85℃ wide temperature range for stable operation in all scenarios.
- 10+Year AUO Distributorship: Competitive pricing + in-house R&D team offering professional TFT full solutions.
- Stock Availability: Immediate shipment to solve urgent delivery needs.
G084SN05 V9 Specifications
| G084SN05 V9 Specifications | |||
| Diagonal Size | 8.4 inch | Contrast Ratio | 600:1 |
| Pixel Number | 800 × 600 (SVGA) | Operating Temperature | -30°C to +85°C |
| Luminance | 450 cd/m² (typical) | Storage Temperature | -30°C to +85°C |
| Module Size | 203.0 × 142.5 × 8.0 mm | LED Lifetime | 50,000 hours |
| Active Area | 170.4 × 127.8 mm | Touchscreen Support | Without |
| Viewing Direction | 6 O’clock | Power Supply | 3.3V DC |
| View Angle | 80°/80°/80°/80° (U/D/L/R) | Display Type | Color TFT LCD |
| Interface | LVDS (1 channel) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
