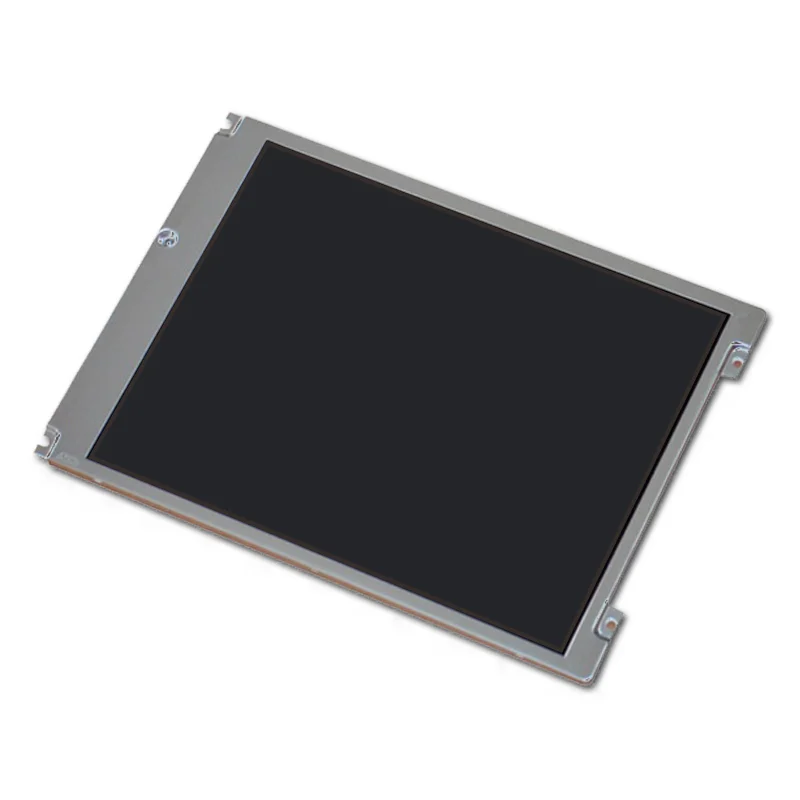

AUO G084SN03 V3 LCD Description
Here are the key points about this AUO G084SN03 V3 TN LVDS Display :
- Product & Core Display: AUO G084SN03 V3 (8.4-inch a-Si TFT-LCD), 800×600 SVGA (119 PPI), TN mode, 250 cd/m² brightness, 600:1 contrast
- Physical & Backlight: 170.4×127.8mm active area, antiglare hard coating (3H), 3-string WLED (30K hours, with driver), no touch screen
- Technical & Power: 60Hz (supports 120Hz/240Hz via MEMC), LVDS 20-pin, 3.3V input
- Environment & Application: -20~70°C operating/storage temp, industrial use, panel weight TBD
8.4″ LCD Specifications
| 8.4 inch TN LCD Specifications | |||
| Diagonal Size | 8.4″(Diagonal) | Contrast Ratio | 600 |
| Pixel Number | 800*600 Pixels | Operating Temperature | -20~70℃ |
| Luminance | 250 | Storage Temperature | -20~70℃ |
| Module Size | 203(W)×142.5(H)×6.2(D) | LED Lifetime | 30K |
| Active Area | 170.4(W)×127.8(H) | Touchscreen Support | Without |
| Viewing Direction | TN-6O’CLOCK | Power Supply | 3.3v |
| View Angle(U/D/R/L) | 80/80/80/60 | Display Type | Color TFT |
| Interface | LVDS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
