Description
AUO B070ATN01.2 General Description
Here are the key points about this AUO B070ATN01.2 industrial Screen :

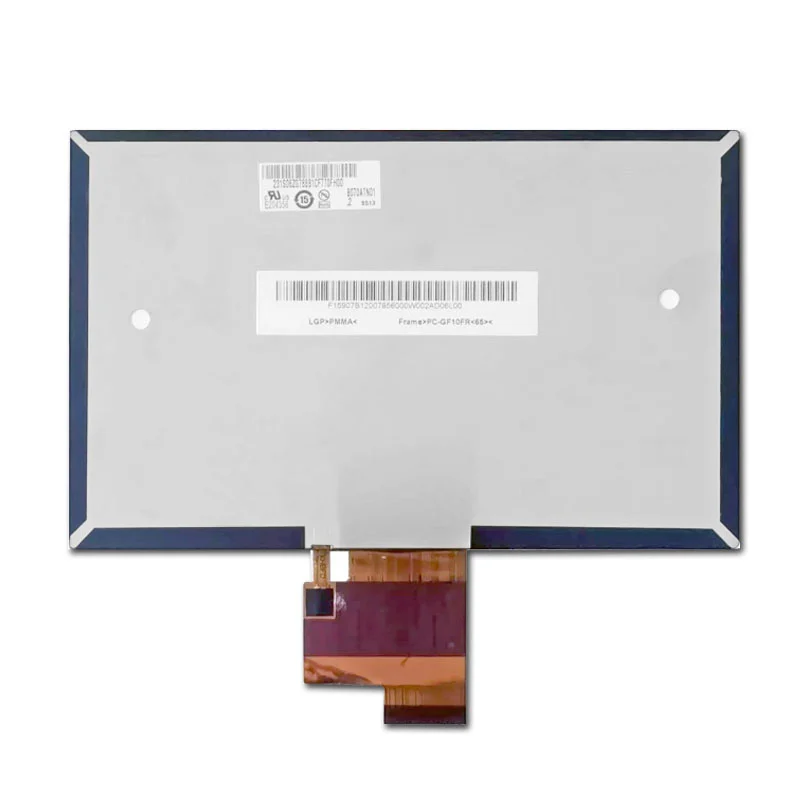

The AU Optronics LCD panel B070ATN01.2 is a 7-inch TN TFT LCD module.
It is engineered for rugged industrial applications requiring stable performance in extreme environments.
It has 1024×600 resolution and an LVDS interface.
It ensures crisp image transmission and reduced electromagnetic interference for mission-critical systems.
350nits brightness with anti-glare surface treatment for clear visibility under direct lighting.
Suitable for outdoor kiosks, automotive test equipment, and cold-chain monitoring systems.
20,000-hour backlight lifespan ensures long-term deployment viability.
B070ATN01.2 Technical
- 500:1 contrast ratio with 6/12 o’clock viewing direction
- 40-pin LVDS connector compatible with industrial control boards
- 3.3V power input, RoHS-compliant design
- Supports resistive/capacitive touchscreen integration (optional)
- Backlight uniformity <5% across panel
- Designed for seamless integration into HMI panels, portable diagnostic devices, and IoT terminals. Custom mechanical adaptations available upon request.
7″ LCD Specifications
| 7 inch TN LCD Specifications | |||
| Diagonal Size | 7.0″(Diagonal) | Contrast Ratio | 700 |
| Pixel Number | 1024×600 Pixels | Operating Temperature | -20~60℃ |
| Luminance | 350 | Storage Temperature | -30~70℃ |
| Module Size | 167.25(H)×104.65(V) ×4.8(D) | LED Lifetime | 30K |
| Active Area | 153.6(W)×90(H) | Touchscreen Support | Without |
| Viewing Direction | TN | Power Supply | 3.3v |
| View Angle(U/D/R/L) | 75/75/70/75 | Display Type | Color TFT |
| Interface | LVDS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
