Description
7.82 Inch LCD Display with 120Hz Refresh Rate and In-Cell Touch
- Product Specs: 7.82 inch LCD display with 120Hz refresh rate and in-cell touch , 1080×1920 resolution and 120Hz refresh rate for ultra-smooth visuals. Adopts MIPI interface and IIC-based In-Cell capacitive touch, featuring fast response. Wide operating temperature of -30°C to 80°C for stable operation in harsh conditions.
- Applications: Ideal for consumer electronics and industrial-grade embedded systems.
- Manufacturer Support: Available in stock for prompt delivery. We provide professional touch tuning, firmware and driver support, OEM & customization services, with solid experience in consumer electronics projects.

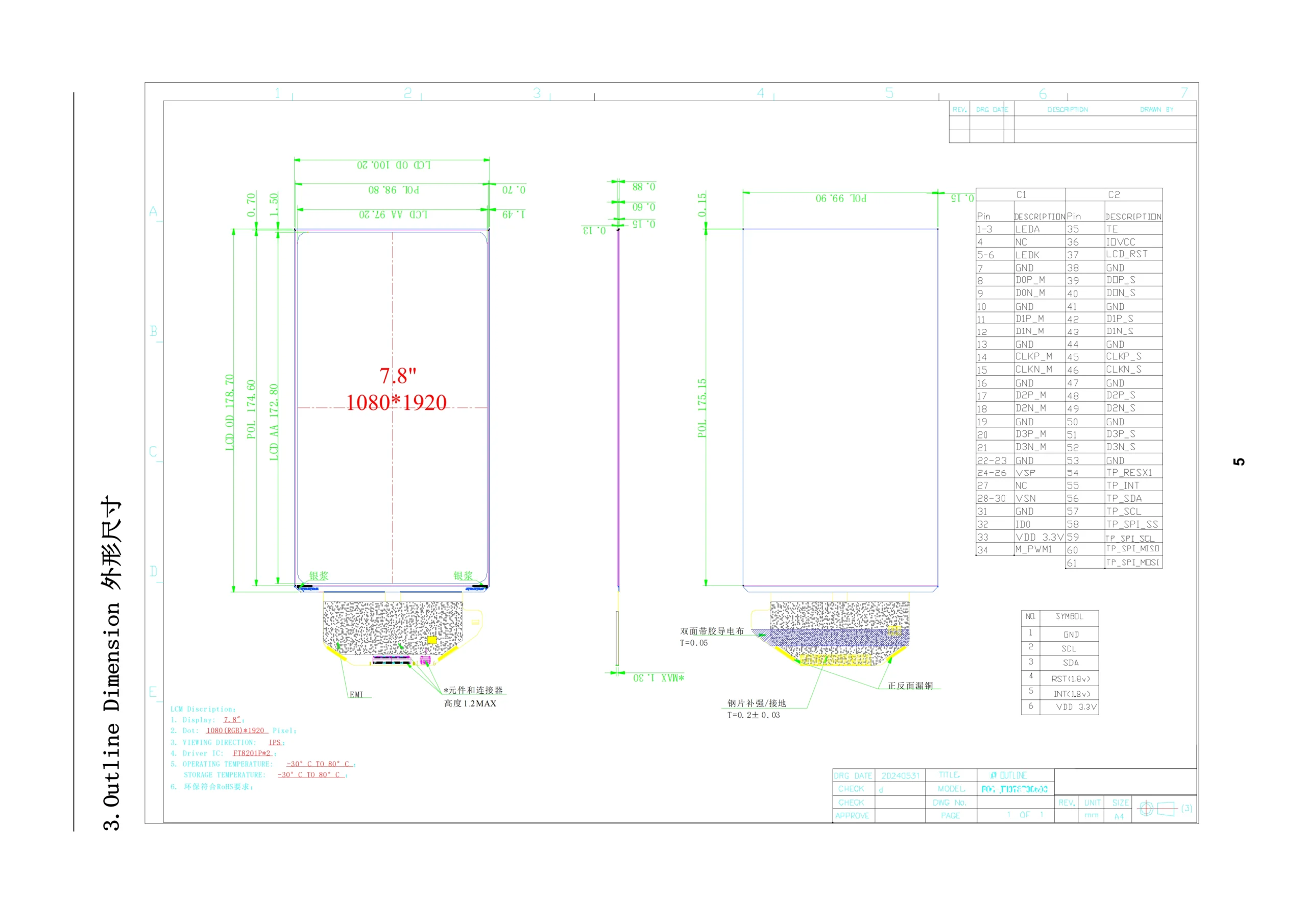

7.82 Inch LCD Display Specifications
| 7.82 inch LCD Display Specifications | |||
| Model Number | 7.82 | Operating Temperature | -30~80 |
| Size | 7.82 inch | Storage Temperature | -30~80 |
| Resolution | 1080*1920 | Contrast Ratio | 1500:1 |
| Outline Dimension | 100.2*178.7*1.3 | LED Lifetime | 20000 |
| Active Area | 97.2*172.8 | Touchscreen Support | With incell capacitive touch |
| Brightness(cd/m²) | 500 | Power Supply | 3.3V |
| Interface | MIPI | Display Type | Color LCD |
| View Direction | IPS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
