Description

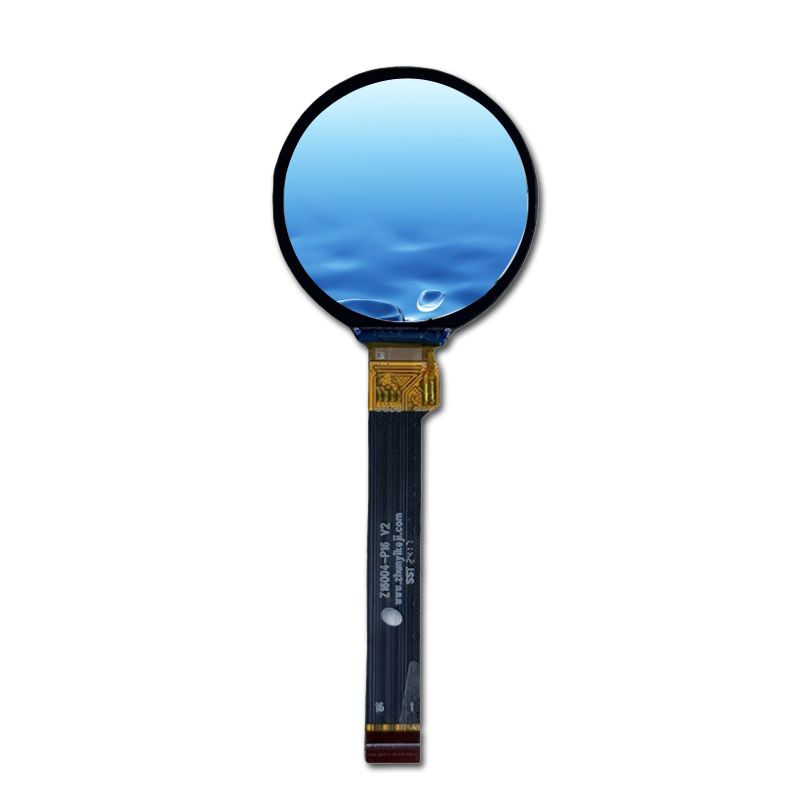

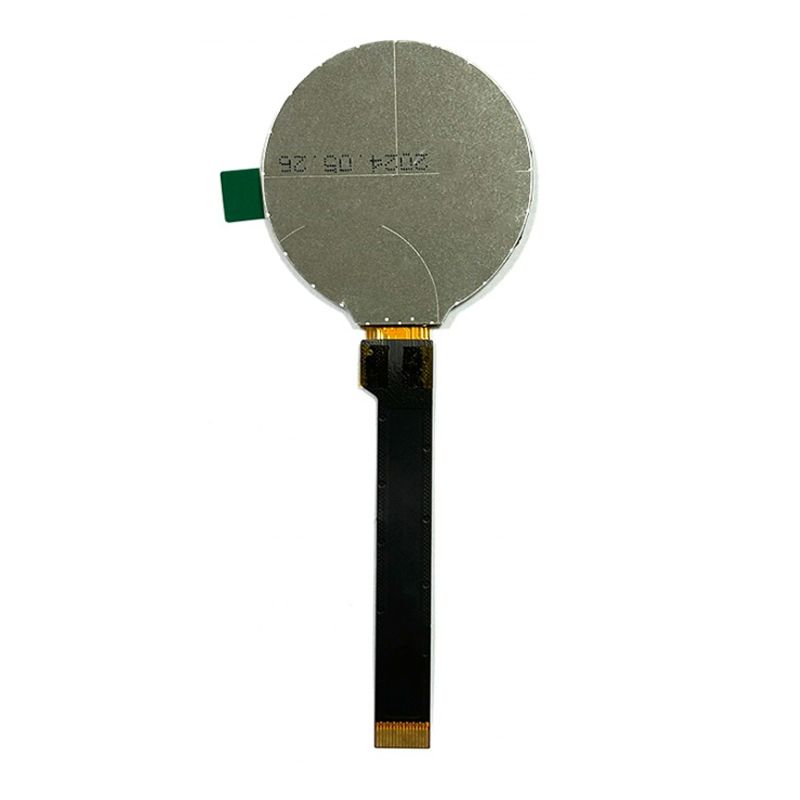

1.6 Round IPS for Smart Home Displays overview
Here are the key points about this 1.6 Round IPS for Smart Home Displays
- Viewing Angle: It has an IPS viewing angle, providing a better visual experience.
- Operating Temperature Range: It has a wide operating temperature range, from -20°C to 70°C.
- Interface Type: It uses a high-speed MIPI interface.
- Operating Voltage: The operating voltage is 3.3/1.8V.
- Test Report Provision: Aging tests, drop tests, and temperature and humidity cycling tests reports can be provided to ensure long-term reliability.
- Customization Service: Customized solutions can be provided for FPC shape/length, interface configurations, and touch screen options (capacitive/resistive), adapting to unique mechanical and functional requirements.
Why choose us?
Competitive Pricing & Flexible MOQ. With a 10-year manufacturing experience, we offer cost-effective solutions without compromising quality. Choose from flexible MOQ options (50pcs / 100pcs / 500pcs) to fit your needs—our prices are 5-10% lower than market equivalents for the same specification, making us ideal for prototyping, small batches, or large-scale orders.
Stable supply chain, Reliability is our priority. We maintain strong partnerships with mature material suppliers and implement proactive stock management to ensure uninterrupted production. A secure buffer inventory is always reserved to mitigate supply chain risks, guaranteeing on-time delivery even during industry shortages.
Quality guarantee and after-sale service, Our strict quality protocol includes:
- Incoming Material Inspection (IMS)
- In-Process Production Checks
- Final Product Testing (100% functional verification)
Backed by a 1-year warranty, we eliminate after-sales worries—our dedicated team provides timely technical support and hassle-free replacements, ensuring your long-term satisfaction.
1.6″ Round TFT Display Specifications
| 1.6″ Round TFT Display Specifications | |||
| Model Number | 90-01602-001 | Operating Temperature | -20~70 |
| Size | 1.6 | Storage Temperature | -30~80 |
| Resolution | 240*240 | LED Lifetime | 20000 |
| Outline Dimension | 42.94*45.89*1.96 | Touchscreen Support | Witout |
| Active Area | 40.44*40.44 | Contrast Ratio | 1200:01:00 |
| Brightness(cd/m²) | 350 | Power Supply | 3.3V |
| Interface | MIPI | Display Type | Color LCD |
| View Direction | ALL | ||
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
