Description

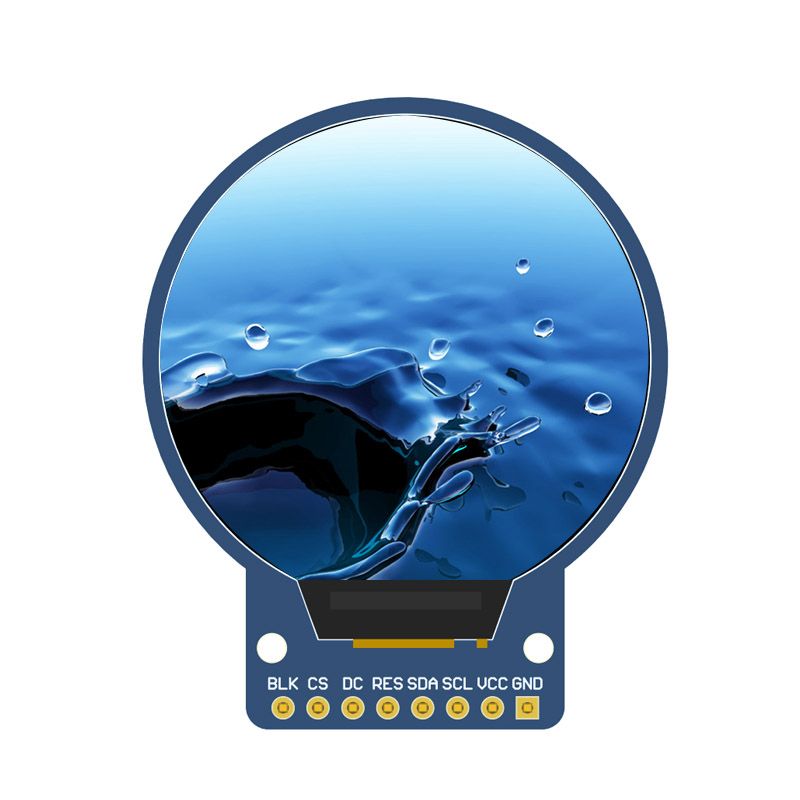

1.28″ Circular IPS TFT Display – 240×240 SPI Interface
Here are the key points about this 1.28″ Circular IPS TFT Display :
✅ Ultra-Compact & Lightweight: 1.28″ circular form factor saves space in portable designs.
✅ Low-Power SPI Control: Streamlined communication reduces MCU load.
✅ IPS Technology: Consistent color accuracy at any angle.
✅ Long-Term Reliability: Rigorous quality testing ensures 24/7 durability.
✅ Custom driver support and technical documentation available.
✅Certified with CE/RoHS/FCC standards

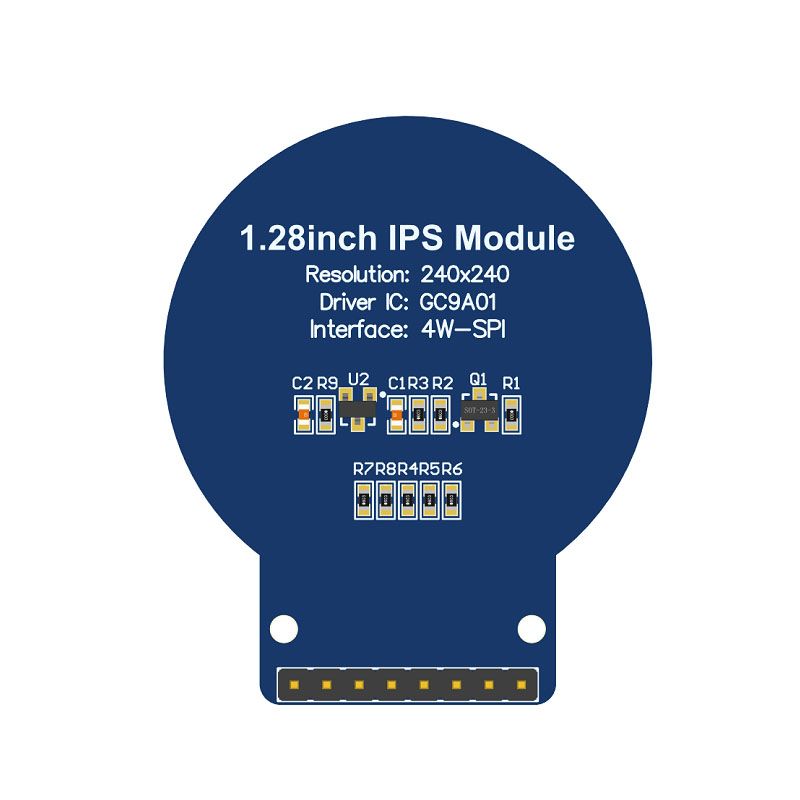

1.28 inch IPS Module Key Parameters
| 1.28 inch IPS Module Key Parameters | |||
| Display Color | RGB 65K color | Active Area (AA area) | Diameter: 32.40 (mm) |
| Screen Size | 1.28(inch) | Module PCB Size | 38.03×45.80(mm) |
| Type | IPS | Operating Temperature | -10℃~60℃ |
| Driver IC | GC9A01 | Storage Temperature | -20℃~70℃ |
| Resolution | 240*240 (Pixel) | VCC power voltage | 3.3V |
| Module Interface | 4-line SPI | ||
1.28 inch IPS Module Interface
| 1.28 inch IPS Module Interface | |||||
| PIN NO. | SYMBOL | DESCRIPTION | PIN NO. | SYMBOL | DESCRIPTION |
| 1 | GND | LCD Power ground | 5 | RES | LCD reset control signal(Low level reset,The module has a reset circuit, and this pin can not be connected) |
| 2 | VCC | LCD power supply is positive (3.3V/5V) | 6 | DC | LCD register / data selection control signal |
| 3 | SCL | LCD SPI bus clock signal | 7 | CS | LCD chip select control signal (low level enable) |
| 4 | SDA | LCD SPI bus write data signal | 8 | BLK | LCD backlight control signal (high level lighting, |
Miqidisplay TFT LCD display provide vivid and full-color visual effects, capable of showing bright images, fast animations, complex graphics, custom fonts, as well as various touchscreen options . They support a variety of interface options, such as HDMI, SPI, LVDS, MIPI, RGB and EDP.
These displays feature industry-standard sizes and resolutions . Multiple types are available, such as stretched bar and circular LCDs . Highly adaptable, Miqidisplay TFT modules suit diverse uses . Applications range from industrial control to medical equipment.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
