As industries continue to embrace automation and edge computing, the demand for reliable, durable, and user-friendly display solutions has surged. With the advent of AI and industrial automation, industries have begun to shift to the world of advanced automation and edge applications. To support this transformation, rugged industrial LCD and touch monitors serve as vital interfaces between human operators and machines, ensuring seamless control over complex systems in challenging environments.
What are Industrial LCD Monitors?
LCD (Liquid Crystal Display) is a technology that utilizes light modulating properties of liquid crystals and polarizers. In industrial settings, these displays are engineered beyond standard consumer-grade monitors. Industrial LCD monitors are rugged computer displays that adopt LCD technology to connect to a computer or a machine as an interface.
What sets them apart is their ability to function reliably under extreme conditions such as dust, moisture, temperature fluctuations, shock, and vibration. The industrial rugged LCD monitor is different from the standard LCD monitor. For example, while standard displays may offer brightness levels up to 350 nits, rugged variants can reach up to 1000 nits for superior visibility in outdoor or high-glare environments. As a result, this technology has been widely used in outdoor kiosks, retail displays, and intelligent transportation but also in even harsher environments like mining.
What Is the Purpose of Rugged Display Monitor?
The rugged LCD monitors are the collaborative solution in HMI deployment for industrial control systems to efficiently manage ongoing tasks and control multiple functions. These touch monitors provide real-time feedback and enable operators to interact with automated processes through graphical user interfaces.
HMI or Human Machine Interfaces are the display interface that provides industrial operators the ability to choose and determine a pre-planned result from the machine and applications, which may include alarms, sensors, toggle functions, or system diagnostics. Their robust construction—featuring anti-glare coatings, scratch-resistant surfaces, and sealed enclosures—ensures continuous operation in environments where failure is not an option.
Learn More About HMI (Human Machine Interface)
An HMI acts as a bridge between humans and machines. In industrial automation systems, it allows operators to visualize data collected from sensors or PLCs (Programmable Logic Controllers), initiate commands, monitor performance metrics, and respond swiftly to system anomalies. A well-integrated HMI system enhances productivity by providing intuitive controls for complex machinery.
Benefits of Industrial LCD Monitors
Fanless Design
Typically, a rugged LCD display means it is fanless. This design eliminates mechanical fans that can attract dust or fail over time. Fanless designs eliminate the need for a thermoelectric fan (TEC) to cool down the internal heat-generating components by using heat sinks or heat pipes made from highly conductive materials like copper or aluminum. This not only extends lifespan but also enhances reliability in dusty or humid environments.
IP (Ingress Protection) Ratings
IP (Ingress Protection) rating measures the level of resistance an industrial LCD monitor has against dust and water. Ratings typically range from IP65 to IP69K. The second digit with the highest rating of 9K refers to the protection against powerful high-temperature water jets, making these displays ideal for food processing plants or pharmaceutical cleanrooms requiring regular washdowns.
Wide Operating Temperature
A weather-resistant LCD monitor enables flexibility for the computers to be deployed in any industrial environment. Miqidisplay’s rugged monitors operate within -20°C to 60°C without compromising performance. It is crucial to ensure that the LCD monitor is safe when deployed in freezing or hot operating temperatures.
Shock and Vibrations
Industrial vehicles like forklifts or mining trucks expose equipment to constant motion. Mounting a rugged LCD monitor on a moving vehicle subjected to constant vibrations and shock can be detrimental. Miqidisplay’s panel mount displays endure up to 20G shock and 1.5 Grms vibration due to minimized moving parts.
Rich Industrial Ports
A rugged industrial display monitor manages various tasks and ongoing functions, hence they come equipped with diverse I/O ports including USBs, VGA/DisplayPort outputs, SIM slots, M12 connectors for secure locking mechanisms—enabling integration with various peripherals.
Wide Range Power Input
Mounting an industrial display monitor onto a system or machine increases the chance of getting exposed to voltage fluctuations. With support ranging from 9VDC-50VDC along with Over Current Protection (OCP) and Over Voltage Protection (OVP), these monitors safeguard internal components during power surges.
Features of Rugged Industrial LCD Monitors

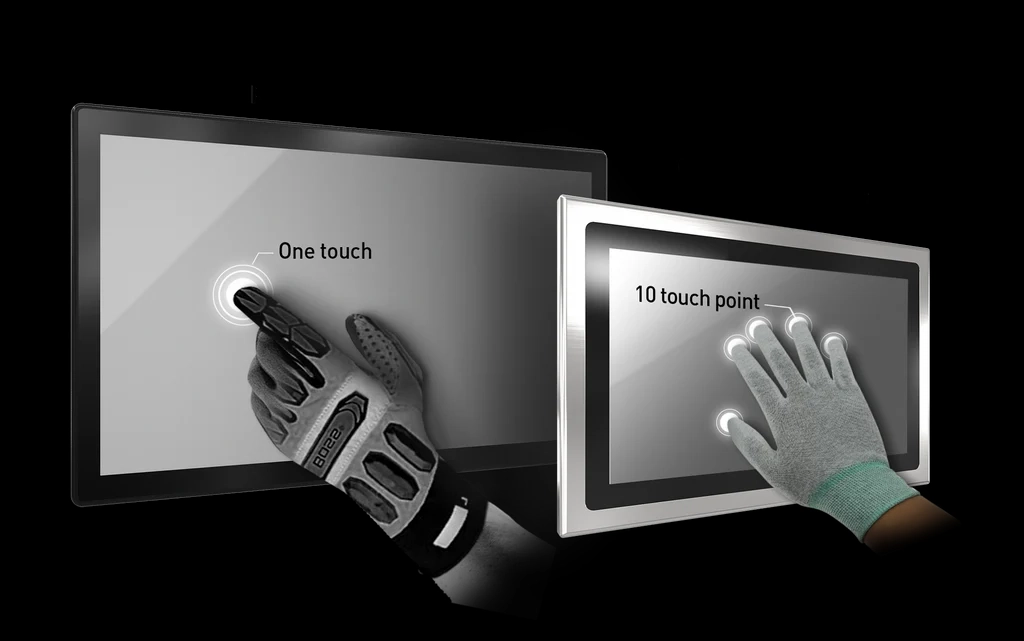

Touchscreen LCD | Rugged Touch Display Monitor
Touch monitors enhance operator interaction by eliminating peripheral devices such as keyboards or mice. Rugged LCD monitors offer highly responsive touchscreens that allow higher interface quality between the operators and automated machines.
Resistive Touch LCD Monitor
Resistive touchscreen display monitor consists of several thin layers. It responds via pressure allowing use with gloves or styluses—ideal for industries like agriculture or mining where users wear protective gear. Miqidisplay touchscreen LCD monitor has been tested and validated to pass the knock test by receiving 10 million keystrokes.
Capacitive Touch LCD Monitor
A capacitive touchscreen display monitor utilizes electrical conductivity instead of pressure. It supports multi-touch gestures like pinch-to-zoom which are useful in kiosk applications requiring fast user interaction.
Optical Bonding | Sunlight Readable Monitor
Optical bonding technology applies an additional thin resin layer between the glass or touchscreen and the TFT LCD layers. This process eliminates air gaps reducing glare while improving contrast outdoors. This technology provides several benefits such as Sunlight Readability / High Optical Clarity, better shock absorption, ingress protection from dust/liquid condensation issues.
Mounting Options | Mountable Rugged LCD Monitor
Installation flexibility is vital across different sectors. Industrial LCD monitors have various mounting options to best match different industrial applications. These include VESA mounts for wall installations; Yoke mounts for adjustable angles; Panel mounts for flush integration into machinery panels.
Why choose Miqidisplay for your Industrial touch LCD displays supplier
Miqidisplay stands out as a trusted provider of advanced display technologies tailored specifically for demanding industries worldwide. With over two decades of experience,Miqidisplay owns industry-leading automatic production and testing equipment, ensuring consistent product quality through rigorous inspection processes before shipment.
Our facilities are TS-16949, ISO-9001 and ISO-14001 certified, demonstrating our commitment toward international standards compliance.Real-Time Support Dedicated customer service available 24/7 for pre-sales, order tracking, and after-sales assistance.
Whether you require small-batch customization or large-scale production,Miqidisplay provides comprehensive end-to-end Liquid Crystal Display (LCD) customization services, making us your ideal one-stop solution provider for rugged touch monitors across medical devices, automotive consoles, factory automation systems—and more. Contact us anytime for a quick and free quote.
