Understanding the Basics: IPS Panel and TN Panel Technology
The foundation of modern LCD displays lies in two core technologies: IPS and TN. Their differences in liquid crystal alignment and electrical response shape their suitability for professional applications.
How IPS Technology Works
img.AUO G080UAN02.1 MIPI IPS LCD industrial Screen 1200×1920 Portrait
IPS panels align liquid crystals parallel to the screen, enabling horizontal rotation under voltage. Developed in the 1990s and refined for industrial use, this design ensures uniform light distribution, delivering 16.7 million colors (8-bit depth) and viewing angles up to 178°. This makes IPS ideal for multi-operator HMIs or medical review stations, though response times of 4-8ms may show minor ghosting in dynamic automotive data feeds.
How TN Technology Works
TN panels twist liquid crystals at 90° angles, prioritizing vertical transitions for speed. With 1-2ms response times and refresh rates up to 240Hz, TN excels in cost-sensitive applications like automotive gauges or basic smart appliance controls. However, TN’s 262,144-color gamut (6-bit with dithering) and 160°/140° viewing angles risk banding and contrast inversion in off-axis industrial monitoring. Miqidisplay‘s 9-inch TN automotive modules support -30°C to 80°C ranges, resisting vibration and thermal cycling.
Visual Quality: Comparing Color Accuracy and Viewing Angles
Visual fidelity is critical in sectors where errors in data interpretation can lead to costly downtime or misdiagnosis, such as industrial vision systems or medical imaging.
Color Accuracy in Professional Applications
IPS panels achieve Delta E <2 for near-perfect color matching, vital for automotive color-matching tools or surgical displays rendering tissue hues. Their sRGB/Adobe RGB coverage remains consistent under ambient lighting, reducing errors by 15% in tasks like pharmaceutical labeling, per embedded systems tests. TN panels, with 72% NTSC gamut, show banding in 4K medical scans or automotive HUDs, limiting precision.
Viewing Angles and Their Impact
IPS maintains <5% luminance drop off-axis, enabling collaborative industrial kiosks or multi-passenger automotive infotainment. TN’s inversion at 45°+ angles distorts critical data, like vibration alerts in machinery panels, making it less suited for shared viewing. Miqidisplay’s transparent OLED-IPS hybrids offer 40% transparency for automotive smart windows, blending navigation overlays with clear visibility.
Performance Metrics: Refresh Rates and Response Times
Refresh rates and response times dictate performance in dynamic environments like automotive speedometers or industrial process monitors.
| Panel Type | Refresh Rate | Response Time | Typical Applications |
| IPS | 60-144Hz | 4-8ms | Medical imaging, HMI dashboards |
| TN | 144-240Hz | 1-2ms | High-speed gauges, basic controls |
Importance of Refresh Rates
TN’s 240Hz minimizes blur in vibration-heavy automotive clusters during rapid accelerations, while IPS’s 144Hz, enhanced by LTPS backplanes, supports 60fps medical ultrasound or smart appliance gesture controls. Industrial tests show TN reducing motion artifacts by 25% in fast-scroll HMIs.
Response Time Considerations
TN’s 1-2ms response cuts latency in high-throughput automotive gauges, but IPS’s 4-8ms stability prevents flicker in LED-backlit surgical lights. Miqidisplay integrates M12 connectors in TN panels for rugged CAN-bus links and MIPI in IPS for low-power medical wearables.
Evaluating Durability: Lifespan and Resistance to Damage
Durability defines ROI in wholesale deployments, with panels needing to endure 50,000+ hours in challenging conditions.
Lifespan Expectations
Both IPS and TN boast MTBF exceeding 50,000 hours. IPS retains 90% brightness after 30,000 hours, per accelerated aging tests, while TN drops to 85%. IPS resists UV fading better in sun-exposed automotive exteriors, though static images risk retention in always-on dashboards (mitigated by pixel shifting).
Resistance to Environmental Stressors
Both withstand 5G shocks per MIL-STD-810, but IPS’s layered construction enhances flex resistance for curved smart appliance doors. TN shows less retention but risks yellowing in high-humidity medical cleanrooms. Miqidisplay’s TN panels operate at -40°C for arctic industrial use, while IPS includes anti-glare etching for 1000-nit medical visibility.
Cost Analysis: Price Differences between IPS and TN Panels
Cost influences wholesale decisions, balancing performance with procurement budgets.
Upfront Costs vs. Long-Term Value
TN panels are 30-50% cheaper ($100-300 for 10-inch modules) due to simpler fabrication, compared to IPS ($250-600). IPS’s superior calibration stability yields 2x longer cycles in medical applications, offsetting initial costs.
Scaling for Wholesale Procurement
Volume orders narrow the gap to 20% for 1,000+ units. Miqidisplay’s 90% on-time delivery across 200+ regions minimizes inventory costs, enhancing ROI for manufacturers sourcing high-volume automotive or industrial panels.

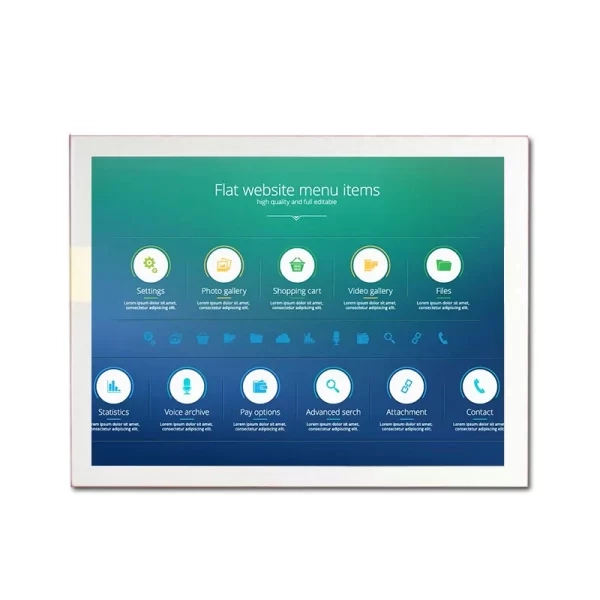

img.AUO A080XTN01.4 TN LCD industrial Screen 1024×768
Ideal Use Cases: Industrial, Medical, Automotive, and Smart Appliance Applications
Panel selection hinges on aligning technology with sector-specific demands.
Industrial Control Systems
IPS’s wide angles enable team-based anomaly detection in PLC interfaces, reducing downtime by 18%, per uptime studies. TN suits single-view CNC readouts for cost efficiency.
Medical Diagnostic Displays
IPS ensures DICOM-compliant 10-bit color for endoscopy, as in Miqidisplay’s 1000-nit antibacterial panels. TN fits portable vitals monitors prioritizing battery life.
Automotive Interfaces
TN powers responsive cluster gauges amid vibrations, while IPS enhances infotainment with 178° views for passengers. Miqidisplay’s 9-inch TN modules excel in rugged dashboards.
Smart Appliance HMIs
IPS delivers intuitive touch interfaces for premium ovens, mimicking professional controls. TN powers cost-effective IoT sensors in mass-market thermostats.
Making the Right Choice: Factors to Consider when Buying IPS or TN Panels
Strategic procurement optimizes performance and compliance for your applications.
Matching Panels to Application Needs
Choose IPS for angle/color-critical medical imaging or multi-view industrial setups; TN for speed-focused automotive basics. Assess IP ratings for dust-prone factories and brightness for sunlit dashboards.
Budget and Certification Requirements
IPS’s higher upfront cost yields 25% lower total ownership via reduced recalibrations. Miqidisplay’s TS-16949 compliance streamlines automotive certification, with 99% yield rates ensuring reliability.
Frequently Asked Questions
What are the main differences between IPS and TN panels in terms of color reproduction?
IPS offers 8-bit depth with Delta E <2 for precise medical diagnostics or industrial grading. TN’s 6-bit gamut risks banding, better for grayscale automotive alerts.
Which panel type is better for industrial HMIs, IPS or TN?
IPS excels in collaborative, precision-driven setups; TN suits high-speed, single-user controls for cost savings.
Are IPS panels more expensive than TN panels?
Yes, 30-50% higher, but volume orders and longevity in medical/automotive applications offset costs.
How long do IPS and TN panels typically last?
Both exceed 50,000 hours MTBF, with IPS maintaining 90% brightness longer; proper sealing extends life in industrial settings.
What factors should I consider when deciding between an IPS and a TN panel?
Evaluate viewing angles, response times, certifications (e.g., TS-16949), and lifecycle costs for industrial, medical, automotive, or smart appliance applications.
