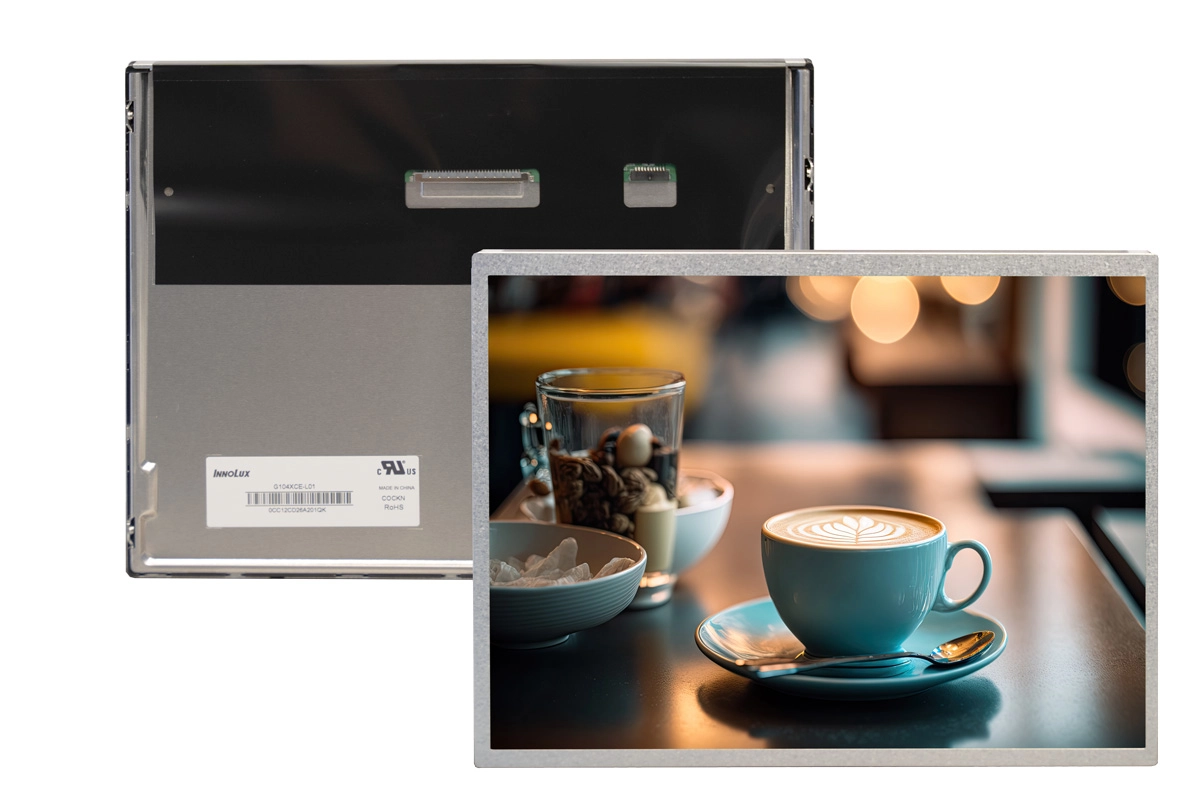

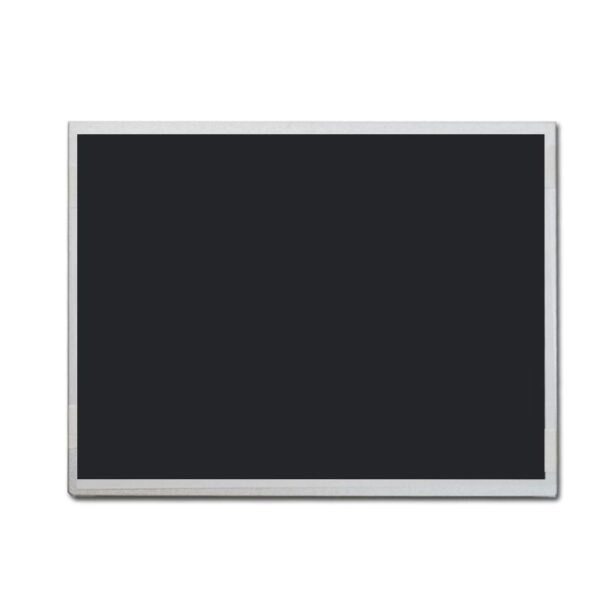

Introduction to the Innolux G104XCE-L01 IPS Industrial LCD Display
The Innolux G104XCE-L01 is a 10.4-inch IPS display built for tough industrial settings. It belongs to Innolux’s strong lineup of industrial screens. This model delivers clear visuals, steady performance, and flexibility for many uses. Thanks to its In-Plane Switching (IPS) technology, it shows sharp images and true colors no matter where you stand. This makes it perfect for teamwork or important tasks in factories and similar places.
Technical Specifications of the Innolux G104XCE-L01 IPS Industrial LCD Display
The G104XCE-L01 has a 1024 x 768 XGA resolution on a 10.4-inch active-matrix TFT screen. Its display area is 210.4 mm x 157.8 mm. The full size of the unit is 225.5 mm x 176.3 mm x 9.2 mm, and it weighs around 430 grams.
It shines with a brightness of 500 cd/m² and a contrast ratio of 1000:1. So, the visuals stay clear even in bright places. Its IPS-based Advanced Super-View (AAS) setup allows viewing from up to 88° in every direction.
For colors, it supports 262K or 16.2M shades using Frame Rate Control (FRC). It covers about 72% of the NTSC color range.
This screen works in harsh temperatures, from -30°C to +85°C. It also has a matte finish with a 3H hardness level to resist scratches.
The panel uses an LVDS interface with a 30-pin, single-channel setup. You can choose between 6-bit or 8-bit modes. It runs on a low 3.3V input. Plus, its WLED backlight lasts up to 50,000 hours and comes with a built-in LED driver.
Key Features of the Innolux G104XCE-L01 IPS Industrial LCD Display
Its strong brightness makes it easy to read in sunlight. This is great for outdoor spots or bright areas like factory floors or control rooms.
The broad temperature range lets it work in tough spots. Think cold storage rooms or hot processing plants.
IPS tech ensures colors and images stay true from all sides—88° left, right, up, or down. This is awesome for group tasks.
The matte surface cuts down glare. Its tough build fights wear and tear, which matters a lot in rough industrial jobs.
With an energy-saving LVDS interface and low power needs, it fits well in systems where saving energy is key.
Best Uses of the Innolux G104XCE-L01 IPS LCD in Industrial Environments
Manufacturing and Automation Control Panels
In factories, strength and dependability are a must. The G104XCE-L01 works great as an HMI (Human-Machine Interface) for automated lines, robot controls, or PLC setups. Its bright screen helps you see clearly under factory lights. Also, the wide viewing angle means workers can check processes without any image twisting.
Transportation Systems
For trains, buses, ships, or car diagnostic tools, this display stays steady in changing temperatures. It handles cold outdoor stops and hot engine areas alike. Since in-vehicle screens are used for long hours, they need top-notch reliability. This model meets those high standards.
Medical Equipment Interfaces
Hospitals need exactness and clean equipment. This display, with its true color display and anti-glare surface, fits well in diagnostic tools or surgical screens. Some surgical monitors even reach 1000 nits of brightness. Plus, it comes with antibacterial glass for a safer, cleaner operating space.
Energy Sector & Petrochemical Monitoring
In outdoor solar fields or oil plants, gear faces harsh sun or heat. This display’s sunlight readability and heat resistance are vital. You can fit it into control panels to track energy levels or chemical processes. It needs very little upkeep too.
Collaborative Robotics & Multi-User Consoles
In aerospace hubs or smart factories with collaborative robots (cobots), many people often view screens at once from different spots. The super-wide viewing angle of IPS tech keeps images clear for everyone, no matter where they stand.
Outdoor Equipment & Harsh Environments
For things like mining machine dashboards or farm automation, its tough design and long backlight life are big pluses. The sturdy build and lasting backlight keep it running in hard conditions. This cuts down on repair costs and downtime.
Integration and Customization Options
Miqidisplay offers a wide range of custom services for industrial needs. With over 20 years of deep know-how, they create precise display solutions to match different industry demands.
Touchscreen choices include projected capacitive (PCAP) for multi-touch use or resistive screens for working with gloves. Boost your setup with either capacitive or resistive touch tech to suit your design.
You can also tweak the interface for HDMI, VGA, SPI, or USB connections. This ensures it works with older systems. Miqidisplay can add these options to your monitor for a smooth fit.
Extra features include IP54-rated cases to block dust and water. Improve durability with custom cover glass to keep out moisture and dirt. There are also anti-UV coatings for outdoor setups, backlight tweaks by changing voltage or current, and mounting parts like brackets or gaskets.
Advantages Over Alternative Display Technologies
Compared to TN (Twisted Nematic) panels often seen in cheaper setups:
- IPS tech gives better viewing angles and color truth. This is super important when many people look at the screen together.
- TN panels might react a tiny bit quicker. But the G104XCE-L01’s response time (14 ms rise / 11 ms fall) is plenty fast for most real-time factory monitoring.
Unlike regular consumer screens:
- The G104XCE-L01 is made for industrial toughness. It handles wide temperatures (-30°C to +85°C), lasts longer (over 50K hours), and has a hard surface (3H hardness). This makes it way more dependable under pressure.
Power saving is another big win:
- Its low-power LVDS interface and just 3.3V input make it great for systems with limited energy sources.
Challenges and Considerations
Even though it’s packed with great features:
- The price might be higher than simple TN panels because of fancy materials like AAS matrix IPS layers.
- Linking it to older setups could need extra driver boards if only VGA or analog inputs are there.
- Touchscreen settings may need occasional tweaks, especially in places with shaking or temperature swings. Regular care might be needed to keep the touchscreen working well.
FAQ
Q: Can this display be used outdoors?
Yes, it has a brightness of up to 500 cd/m² and an anti-glare layer. This helps you see clearly even in direct sunlight.
Q: Is it suitable for medical applications?
For sure. Its high resolution and true colors are perfect for diagnostic imaging. Optional antibacterial coatings also help meet cleanliness rules.
Q: What kind of touchscreens are supported?
You can add PCAP (multi-touch) or resistive touchscreens based on what you need. Touchscreen add-ons match your design just right.
Q: How long does the backlight last?
The WLED backlight can run up to 50,000 hours. This means fewer replacements, even with non-stop use.
Where to Buy the Best Innolux G104XCE L01 IPS Industrial LCD Display: Contact Miqidisplay for Best Offer
If you’re searching for a trusted source, Miqidisplay is a go-to provider for top display tech, including high-quality Innolux panels like the G104XCE L01.
Over 90% of orders ship the same day. Their strict quality checks happen in TS-16949, ISO-9001, and ISO-14001 certified facilities.
For custom pricing or to check out personalization options, reach out to Miqidisplay today.
