TM104SDHG30-02 General Description
Here are the key points about this TIANMA TM104SDHG30-02 TTL Industrial LCD :

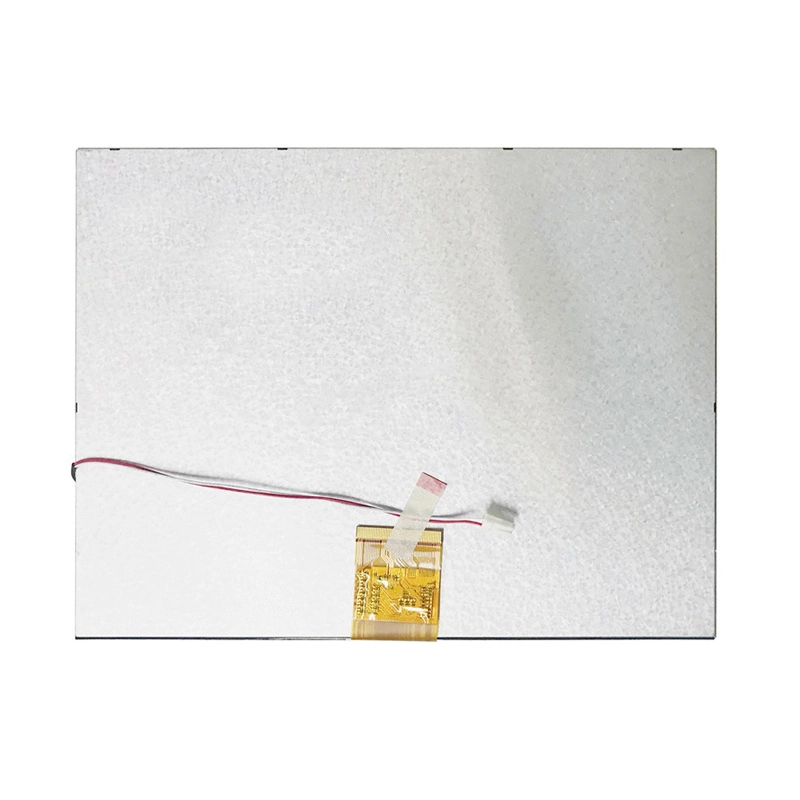

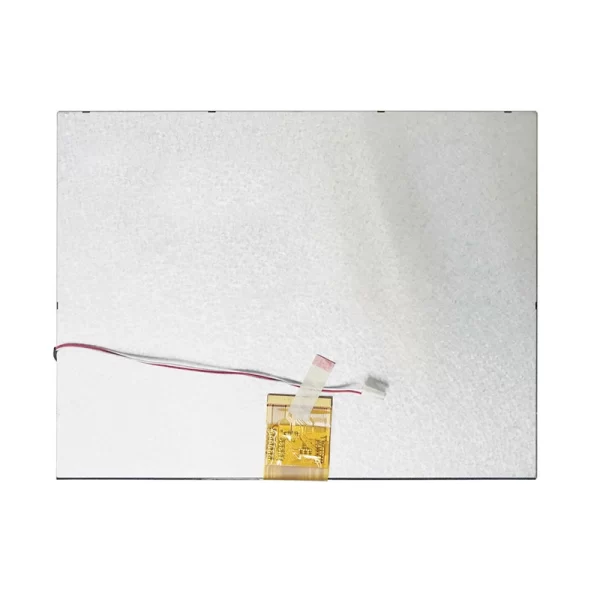

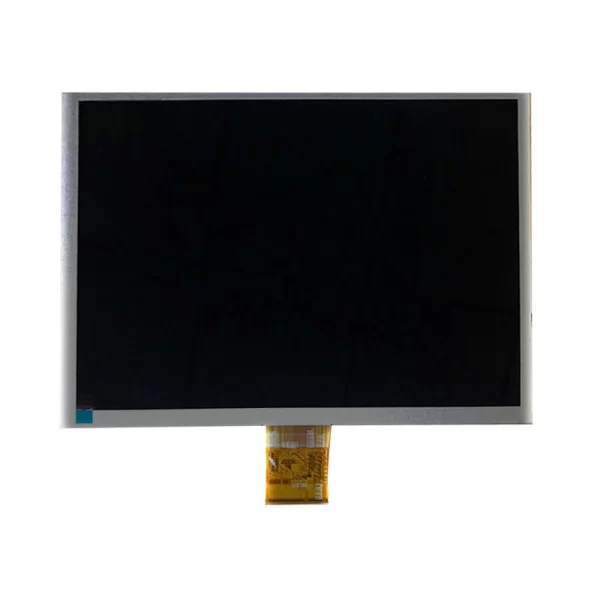

The TIANMA TM104SDHG30-02 TTL Industrial LCD is a rugged 10.4-inch TN LCD module designed for industrial and outdoor applications.
With 800×600 resolution and 350 cd/m² brightness, it ensures clear visibility in variable lighting conditions.
The TTL interface guarantees stable compatibility with legacy industrial systems, while its 500:1 contrast ratio enhances readability for critical data.
Built to endure extreme environments, it operates in -20°C to 70°C and stores in -30°C to 80°C, backed by a 30,000-hour LED lifespan.
Its 3.3V low-power design reduces energy consumption, and the slim 228.4×175.4×6.5mm profile fits compact installations.
Ideal for fixed-view setups with 70/70/60/70 viewing angles, this display excels in reliability-driven scenarios.
TIANMA TM104SDHG30-02 Industrial LCD Application & Performance
The TM104SDHG30-02 thrives in industrial automation HMIs, warehouse logistics terminals, and outdoor payment kiosks, where TTL compatibility and durability are paramount. Its 350 cd/m² brightness suits semi-outdoor environments like construction site control panels and agricultural machinery dashboards, while the wide temperature range supports cold storage monitors and desert solar farm systems. The rugged design powers portable medical devices, vending machine interfaces, and railway signal displays, ensuring stable performance in high-vibration settings. With 30k-hour longevity, it’s ideal for fuel station pumps, HVAC control units, and legacy factory equipment upgrades, delivering cost-effective reliability for 24/7 operations.
TIANMA TM104SDHG30-02 Specifications
| TIANMA TM104SDHG30-02 Specifications | |||
| Diagonal Size | 10.4 inch | Contrast Ratio | 500:01:00 |
| Pixel Number | 800×600 | Operating Temperature | -20 ~ 70 °C |
| Luminance | 350 | Storage Temperature | -30 ~ 80 °C |
| Module Size | 228.4×175.4×6.5 | LED Lifetime | 30000 |
| Active Area | 211.2×158.4 | Touchscreen Support | Without |
| Viewing Direction | TN | Power Supply | 3.3/11.0/25.0/-7.0V |
| View Angle(U/D/R/L) | 70/70/60/70 | Display Type | Color TFT |
| Interface | TTL | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
