Description
TM104SDHG30-01 General Description
Here are the key points about this TIANMA TM104SDHG30-01 :

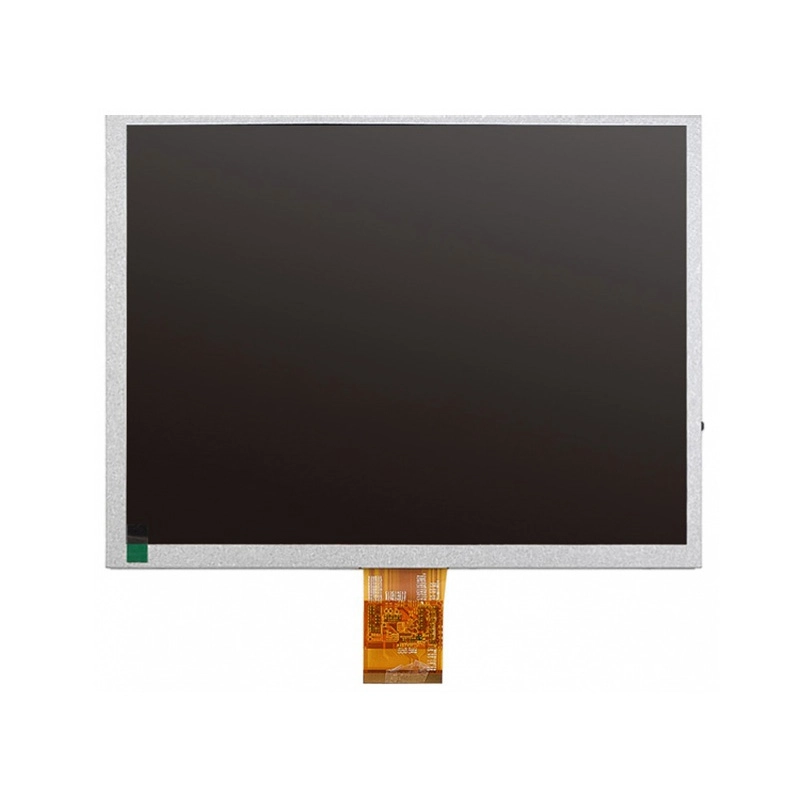

The TIANMA TM104SDHG30-01 is a 10.4-inch TN color LCD module featuring 800×600 resolution and 350 cd/m² brightness, engineered for industrial and outdoor applications requiring robust performance.
Its TTL interface ensures seamless compatibility with legacy control systems, while the 500:1 contrast ratio delivers clear visuals in variable lighting.
Designed for harsh conditions, it operates in -20°C to 70°C and stores in -30°C to 80°C, backed by a 30,000-hour LED lifespan.
The 3.3V low-power design reduces energy consumption, and the slim 228.4×175.4×6.5mm profile fits space-constrained installations.
With 70/70/60/70 viewing angles, it maintains readability in fixed-view industrial setups.
TIANMA TM104SDHG30-01 Application & Performance
Ideal for warehouse inventory terminals, agricultural machinery dashboards, and outdoor payment kiosks, this display excels in environments like factory automation HMIs and cold storage monitoring systems. The 350 cd/m² brightness ensures visibility in logistics sorting hubs and construction site control panels, while its TTL interface supports legacy PLCs in textile manufacturing and food processing equipment. The wide temperature range suits arctic mining vehicle displays and desert solar farm controllers. Its rugged design powers portable medical analyzers, vending machine interfaces, and railway signaling systems. Perfect for industrial IoT edge devices, fuel station pumps, and HVAC control units demanding reliability.
TIANMA TM104SDHG30-01 Specifications
| TIANMA TM104SDHG30-01 Specifications | |||
| Diagonal Size | 10.4 inch | Contrast Ratio | 500:01:00 |
| Pixel Number | 800×600 | Operating Temperature | -20 ~ 70 °C |
| Luminance | 350 cd/m² | Storage Temperature | -30 ~ 80 °C |
| Module Size | 228.4 × 175.4 × 6.5 mm | LED Lifetime | 30,000 hours |
| Active Area | 211.2 × 158.4 mm | Touchscreen Support | Without |
| Viewing Direction | TN (Twisted Nematic) | Power Supply | 3.3V DC |
| View Angle (U/D/R/L) | 70°/70°/60°/70° | Display Type | Color TFT LCD |
| Interface | TTL (Transistor-Transistor Logic) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
