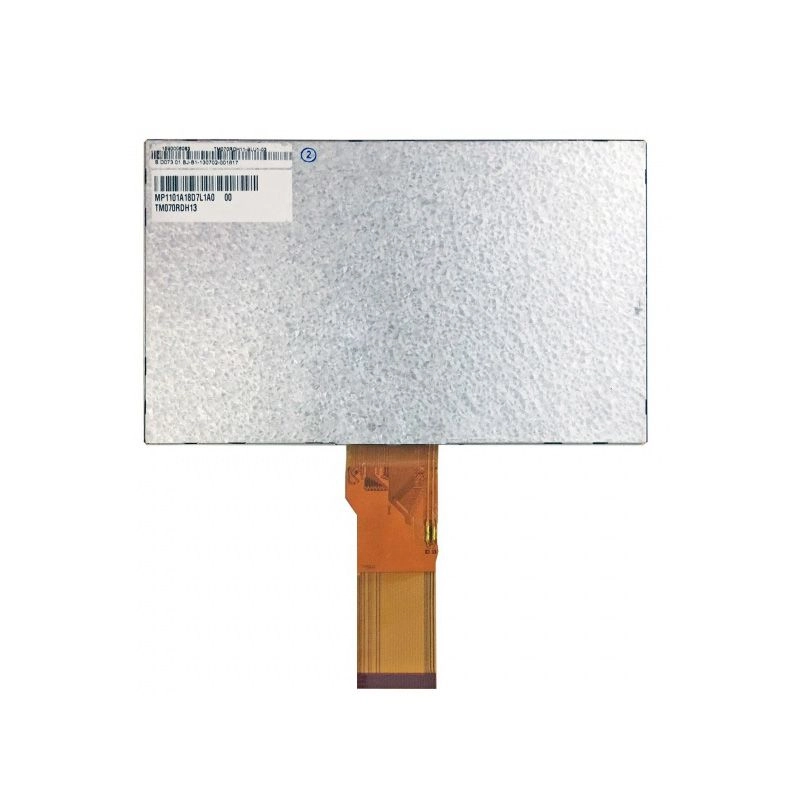

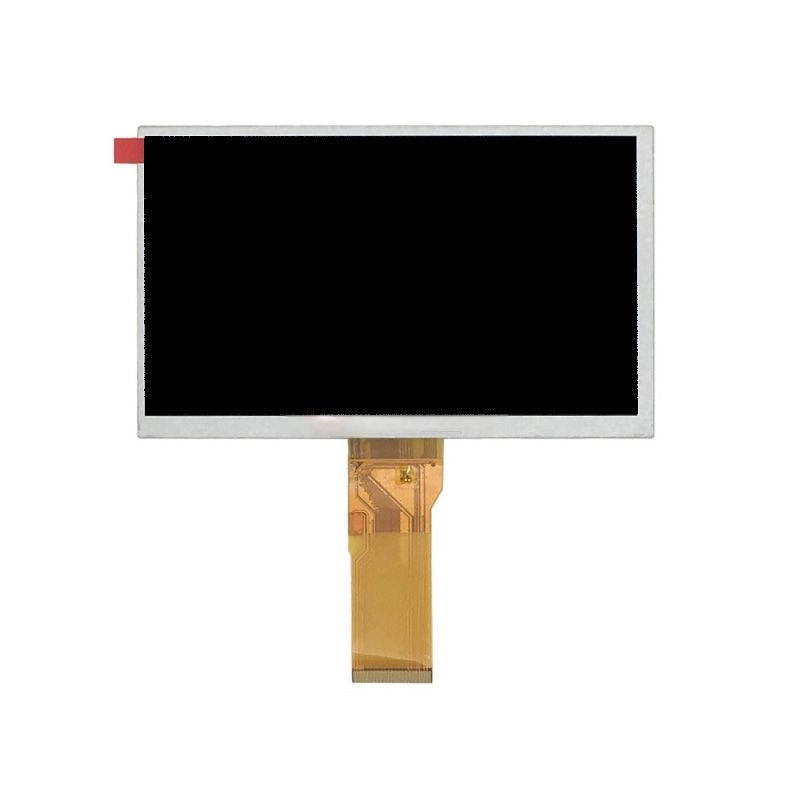

TM070RDH13-00 General Description
Here are the key points about this TIANMA TM070RDH13-00 TN LCD Module :
The TIANMA TM070RDH13-00 is a 7-inch TN color LCD module with 800×480 resolution and 250 cd/m² brightness, optimized for readability in cost-sensitive industrial systems.
It features an ultra-long 50,000-hour LED lifespan and a wide operating temperature range (-20°C to 70°C), ensuring reliability in 24/7 operations.
The RGB interface enables stable signal transmission for embedded controls, while its 3.3V low-power design reduces energy consumption.
With a 500:1 contrast ratio and 70/70/60/70 viewing angles, this non-touch display delivers consistent performance in harsh environments.
Its compact outline (164.9×100×6mm) and -30°C~80°C storage tolerance make it ideal for space-constrained industrial deployments.
TIANMA TM070RDH13-00 TN LCD Module Application & Performance
Designed for industrial HMIs, warehouse logistics displays, and agricultural equipment, the TM070RDH13-00 excels in dusty factories and outdoor installations. Its temperature resilience suits cold storage monitoring systems and desert solar controllers. The TN panel’s balanced performance powers vending machine interfaces, CNC operator panels, and conveyor belt status displays. With 50k-hour durability, it minimizes replacements in factory automation dashboards and public transportation signage. The RGB interface supports legacy industrial PCs in water treatment plants, while its slim profile integrates into portable diagnostic tools and EV charging stations. Ideal for budget-conscious OEMs needing reliable displays for forklift terminals, HVAC controls, and IoT edge devices.
1
| 7.0″ Product Specifications | |||
| Diagonal Size | 7.0 inch | Contrast Ratio | 500:01:00 |
| Pixel Number | 800×480 | Operating Temperature | -20 ~ 70 °C |
| Luminance | 25000% | Storage Temperature | -30 ~ 80 °C |
| Module Size | 164.9×100×6 | LED Lifetime | 50000 |
| Active Area | 154.08×85.92 | Touchscreen Support | Without |
| Viewing Direction | TN | Power Supply | 3.3/10.4/16.0/-7.0V |
| View Angle(U/D/R/L) | 70/70/60/70 | Display Type | Color TFT |
| Interface | RGB | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
