Description

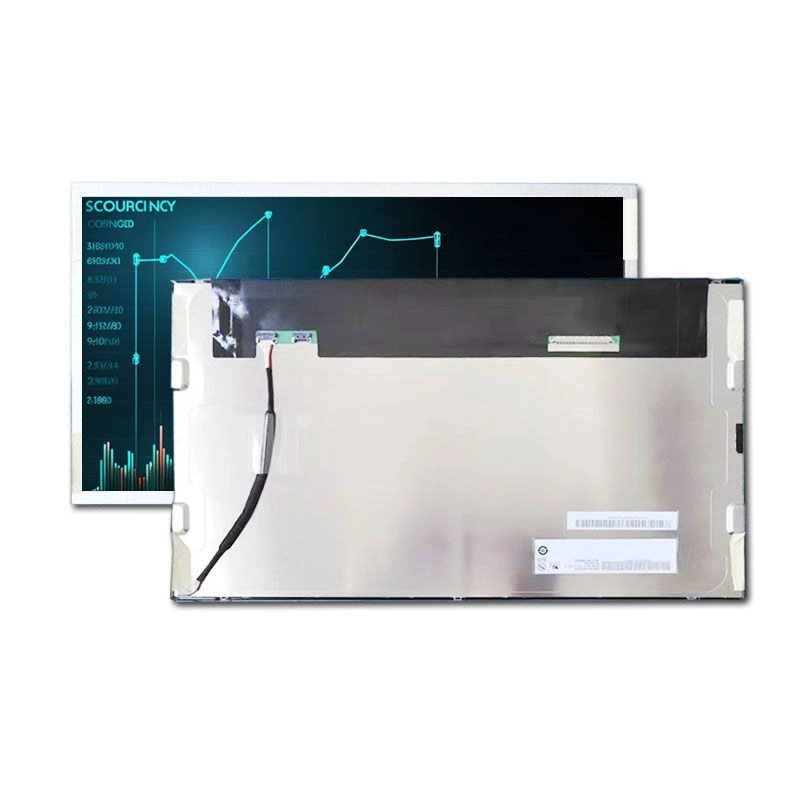

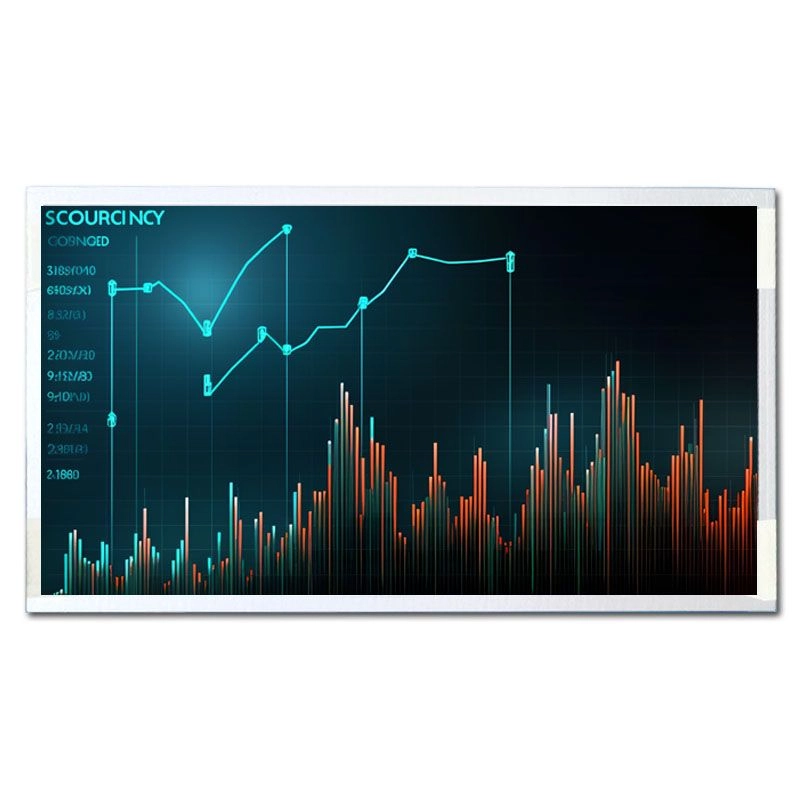

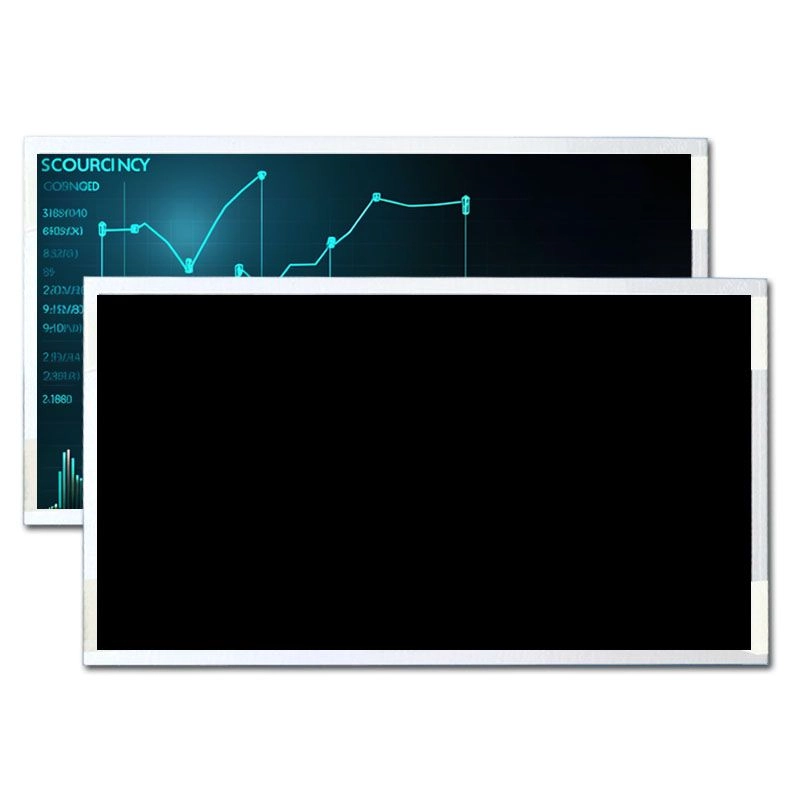

AUO G156HAN02.3 Key Features
Here are the key points about this AUO G156HAN02.3 Display :
- With a brightness level of 500 cd/m², this panel ensures excellent visibility in a range of lighting conditions, making it suitable for both indoor and outdoor environments.
- It operates efficiently within a temperature range of -10 to 65°C, providing reliable performance even in challenging settings.
- The display utilizes a 30-pin LVDS interface, facilitating seamless integration into various systems and enhancing its versatility across multiple applications.
- As an original A-grade quality product with a stable supply, the G156HAN02.3 is ideal for industrial automation, medical devices, and digital signage, ensuring durability and long-lasting performance.
G156HAN02.3 Application
The AUO G156HAN02.3 LCD Panel is highly versatile and suitable for a wide range of applications across various industries.
Its high resolution of 1920 x 1080 pixels and brightness of 500 cd/m² make it ideal for digital signage, where clear and engaging visuals are essential for attracting customers in retail and public spaces.
In industrial environments, it can be integrated into control systems and human-machine interfaces (HMIs), providing operators with reliable visual feedback.
The panel’s operating temperature range of -10 to 65°C allows it to function effectively in tough conditions, making it suitable for outdoor displays and transportation applications.
Additionally, its 30-pin LVDS interface ensures easy integration into consumer electronics, medical devices, and other electronic systems, delivering durability and consistent performance in applications that require high-quality display solutions.
15.6″ TFT-LCD Specifications
| 15.6″ TFT-LCD Specifications | |||
| Model Number | G156HAN02.3 | Operating Temperature | -10°C to +65°C |
| Size | 15.6 inch | Storage Temperature | -10°C to +65°C |
| Resolution | 1920 × 1080 (Full HD) | LED Lifetime | 50,000 hours |
| Outline Dimension | 363.8 × 215.9 × 9.3 mm | Touchscreen Support | Without |
| Active Area | 344.16 × 193.59 mm | Contrast Ratio | 1000:1 |
| Brightness | 500 cd/m² (typical) | Power Supply | 3.3V DC |
| Interface | LVDS (2 channel) | Display Type | Color TFT LCD |
| View Direction | Wide Viewing Angle (85°/85°/85°/85°) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
