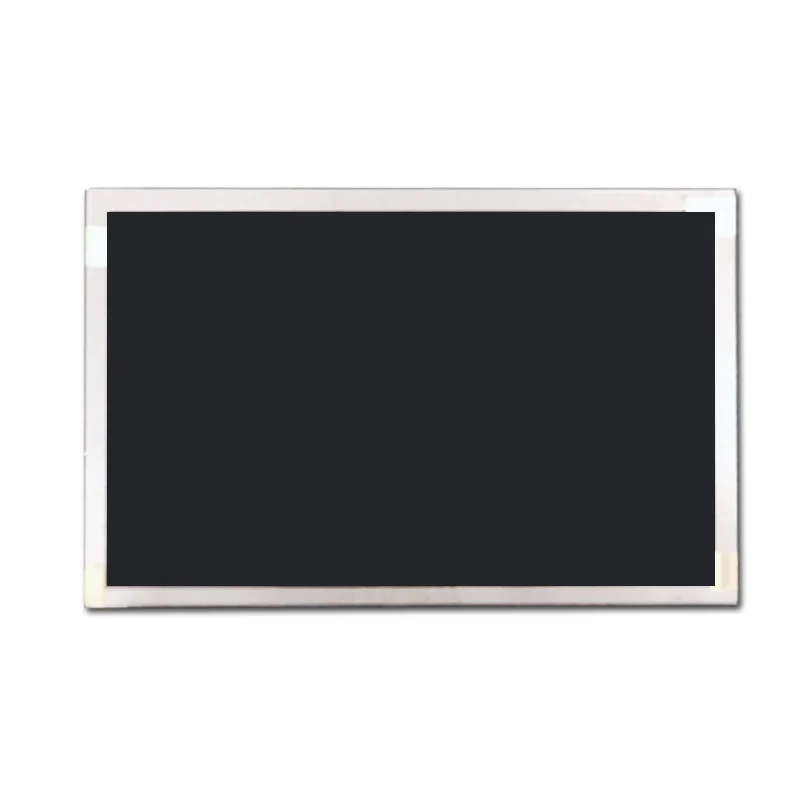

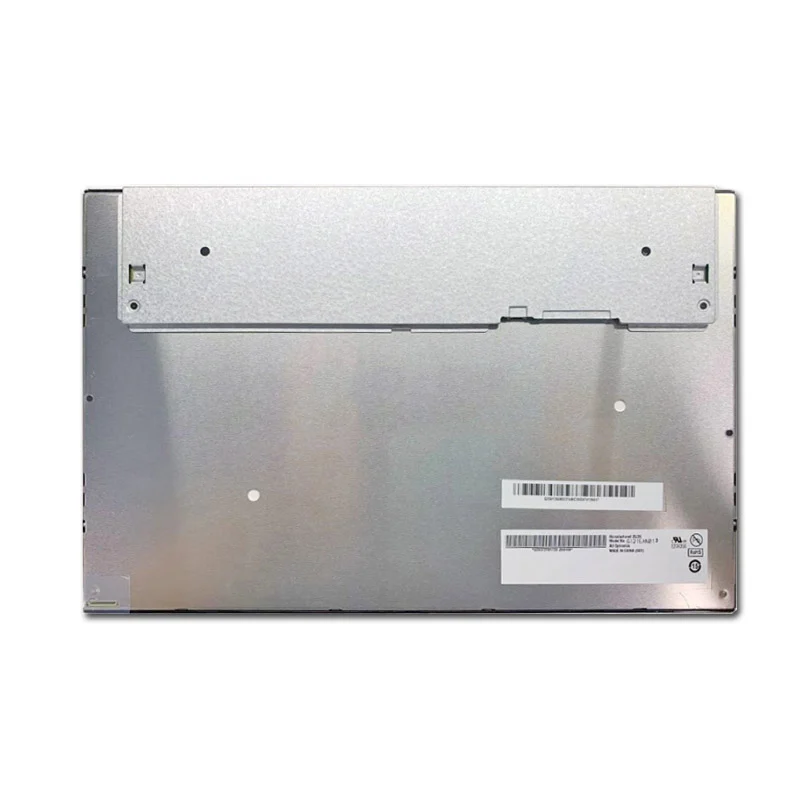

AUO G121EAN01.3 industrial Display LCD Description
Here are the key points about this AUO G121EAN01.3 industrial Display :
- Product & Core Display: AUO G121EAN01.3 industrial Display (12.1-inch a-Si TFT-LCD LCM), 1280×800 WXGA (124 PPI, RGB vertical stripe), 1500 cd/m² (Typ.) brightness, 1000:1 (Typ.) contrast, 89/89/89/89 wide viewing angles, 25ms (Tr+Td) response, AHVA normally black transmissive mode, 262K/16.2M colors (99% sRGB)
- Physical & Surface: 261.12×163.2mm active area, 283×185.1×9.9mm outline size, antiglare 3H hard coating, max 490g weight
- Technical & Power: 50K-hour WLED backlight (no driver), 60Hz refresh rate, 20-pin LVDS interface, 3.3V input
- Application & Environment: Ideal for industrial outdoor high-brightness applications, operating/storage temperature -30~85°C
Reliable inventory and on-time delivery to support your production schedules,Expert technical guidance and customized solutions to meet your specific requirements
12.1 inch Industrial LCD Display
| 12.1 inch LCD Specifications | |||
| Diagonal Size | 12.1 inch | Contrast Ratio | 800 |
| Pixel Number | 800 × 600 (XGA) | Operating Temperature | -30°C to +85°C |
| Luminance | 1500 cd/m² (typical) | Storage Temperature | -30°C to +85°C |
| Module Size | 283(W)×185.1(H) ×9.9(D) | LED Lifetime | 50,000 hours |
| Active Area | 261.12(W)×163.2(H) | Touchscreen Support | Without |
| Viewing Direction | ALL | Power Supply | 3.3V DC |
| View Angle | 89°/89°/89°/89° (U/D/L/R) | Display Type | Color TFT LCD |
| Interface | LVDS | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
