G104VN01-V1
G104VN01-V1
G104VN01-V1

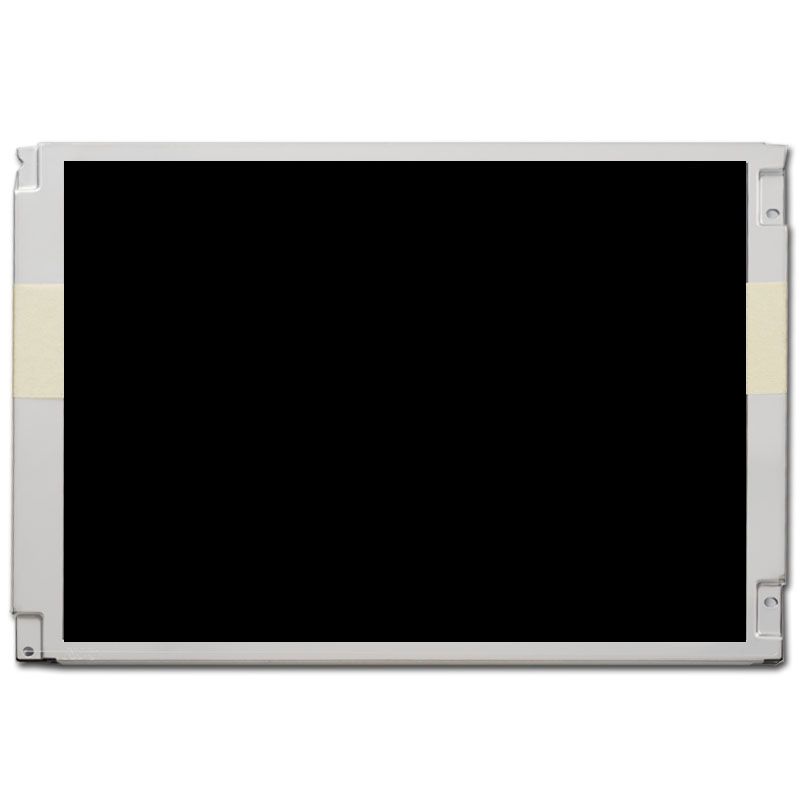

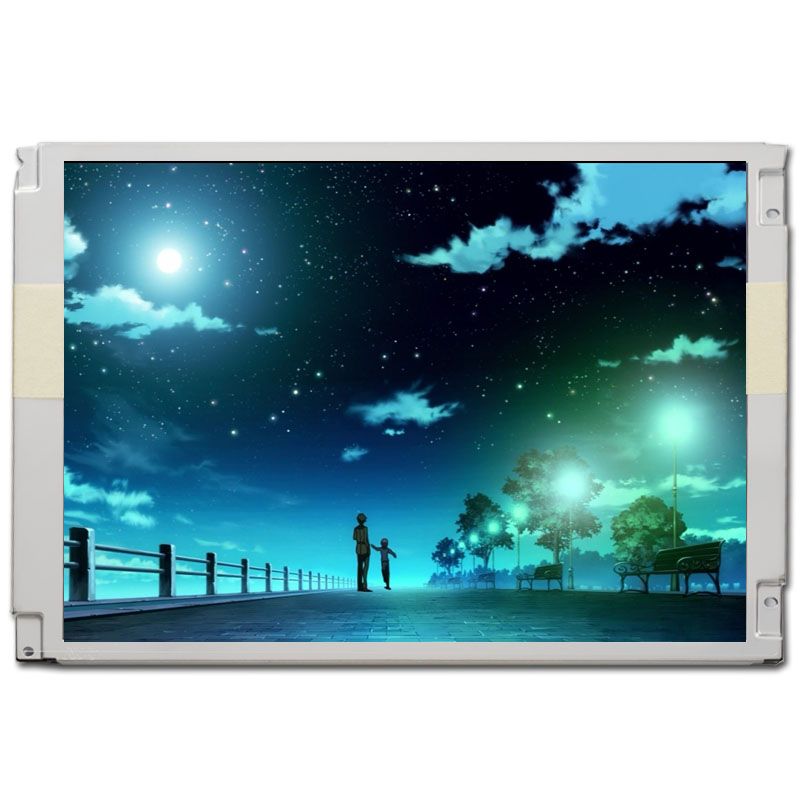

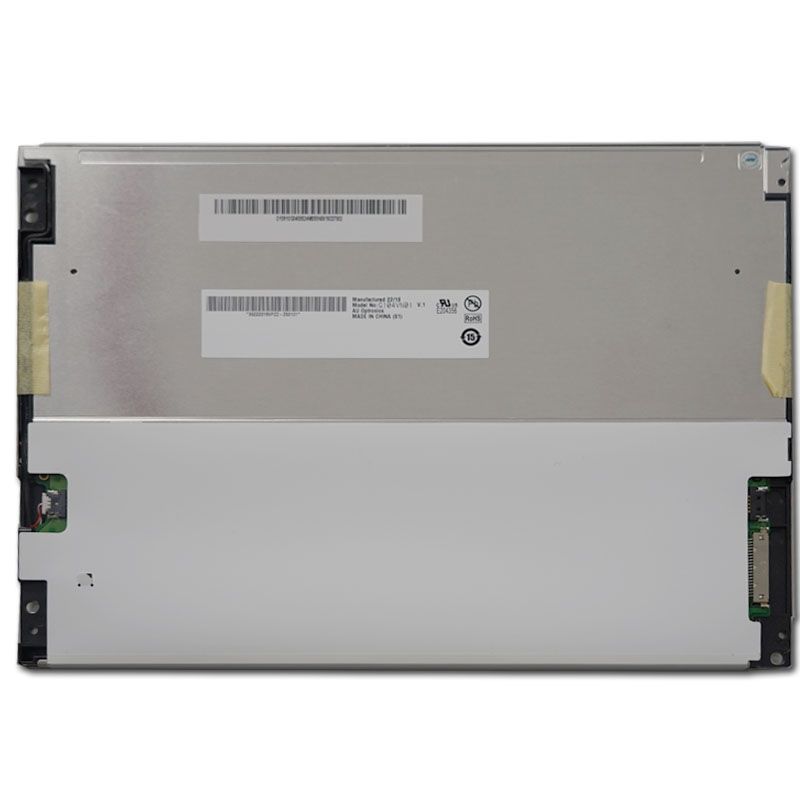

AUO G104VN01 V1 TN 10.4 inch LCD Panel 640*480 Pixels

SKU： DS50016
Size

10.4 inch
Resolution

640*480
Interface

LVDS
Brightness(cd/m²)

450
Op temperature

-30℃~ 85℃
Touchscreen Support

NO
Display Type

Color LCD
Resources:

AUO G104VN01 V1 TN LCD Panel Resolution 640*480, Operating Temperature from -30~85℃,1 channel LVDS Interface, Stable supply, Original A grade quality

X

    Description

    AUO G104VN01 V1 TN LCD Panel Description

    Here are the key points about this AUO G104VN01 V1 TN LCD Panel :

    • Model Name: G104VN01 V1
    • Screen Format:Supports VGA resolution, which is 640(H) x 480(V)Can display 16.2M colors (RGB 8 – bits) or 262k colors (RGB 6 – bits)
    • Backlight System:Includes an LED driving board for the backlight unitThe LED unit is replaceable
    • Key Features:Designed with a wide viewing angleHas a wide operating temperature range Equipped with a long – life LED backlight
    • Application: Well – suited for industrial and HMI (Human – Machine Interface) applications

    G104VN01 V1 AUO TN LCD Panel Characteristics

    The 10.4 – inch AUO TN LCD panel has a 211.2×158.4mm active area, 640×480 RGB vertical stripe res., 0.33mm pixel pitch. In TN normal white mode, runs on 3.3V, consumes 5.2W (all – black). Weighs 355g, sized 243.0×176.6×8.0mm, uses 1 – ch LVDS, 3H anti – glare, supports 16.2M (8 – bit) & 262K (6 – bit) colors. Operates/stores at -30°C to +85°C, RoHS compliant.

    10.4″ TFT-LCD Product Specifications
    Model Number G104VN01.V1 Operating Temperature -30~85
    Size 10.4 Storage Temperature -30~85
    Resolution 640*480 LED Lifetime 50000
    Outline Dimension 243*176.6*8.5 Touchscreen Support Without
    Active Area 211.2*158.4 Contrast Ratio 700:01:00
    Brightness(cd/m²) 450 Power Supply 3.3V
    Interface LVDS Display Type Color LCD
    View Direction TN

    Customizable Parts

    Display Cable

    Display Cable

    We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.

    Customized glass and touch screen

    In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.

    Customized glass and touch screen

    Contact us to get the best customized solution.



    Q: What extreme temperature conditions can this product handle?
    A: This product can achieve cold start at -30℃, suitable for arctic – level environments, and it is equipped with a wide – temperature backlight module to handle both extremely cold and high – heat conditions.

    Q: What are the features of its industrial – grade maintainability?
    A: It has a VGA resolution of 640×480, which is perfectly compatible with old industrial control systems. It also supports 6/8 – bit grayscale hardware switching for easy adjustment and maintenance.

    Q: What about the physical structure of this product?
    A: It has four screw holes with an anti – vibration structure. The pre – installed hole tolerance is ±0.05mm. This ensures stability in industrial environments.

    Q: What kind of interface does it use and what is its compatibility?
    A: It uses a single – channel LVDS interface, which is compatible with 128 types of industrial computer motherboards, providing broad compatibility for various industrial applications.

    Additional information

    Size

    10.4 inch
    Resolution

    640*480
    Interface

    LVDS
    Brightness(cd/m²)

    450
    Op temperature

    -30℃~ 85℃
    Touchscreen Support

    NO
    Display Type

    Color LCD
