Description
G101EVN01.3 General Description
Here are the key points about this AUO G101EVN01.3 LVDS Display :

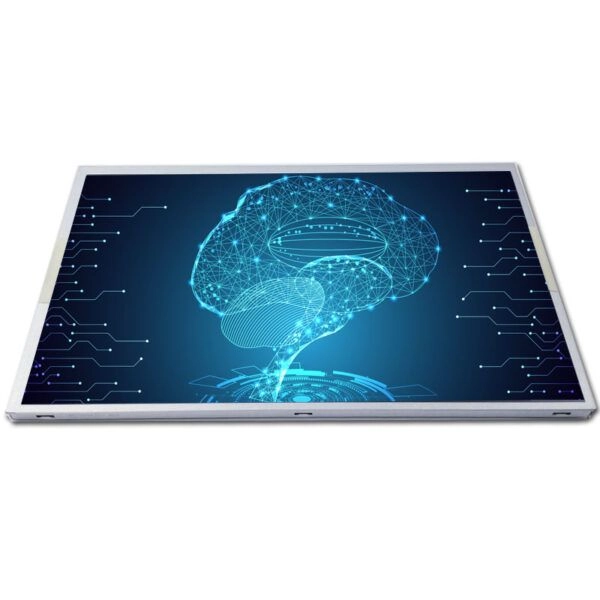

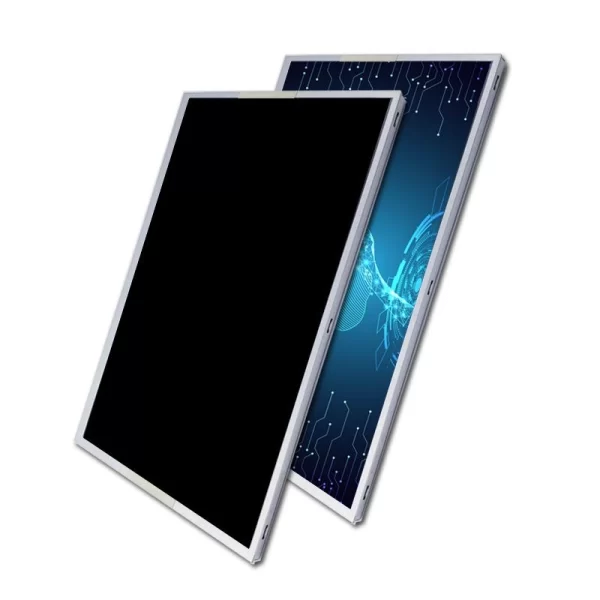

- AUO G101EVN01.3 LVDS Display is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system.
- The screen format supports the 16:10 WXGA, 1280(H) x800(V) screen and 16.2M colors (RGB 6-bits + 2-bits dithering) with an LED backlight driving circuit.
- All input signals are LVDS interface compatible.
G101EVN01.3 AUO LVDS Display Characteristics
The 10.1-inch AUO LVDS Display features an active area of 216.96 mm (H) x 135.6 mm (V) with a resolution of 1280 x 800 pixels, arranged in a RGB vertical stripe pattern and a pixel pitch of 0.1695 mm.
Utilizing MVA (Multi-Domain Vertical Alignment) technology in a normally black display mode, it operates at a nominal input voltage of 3.3V with a maximum power consumption of 6.65W (including logic and backlight power).

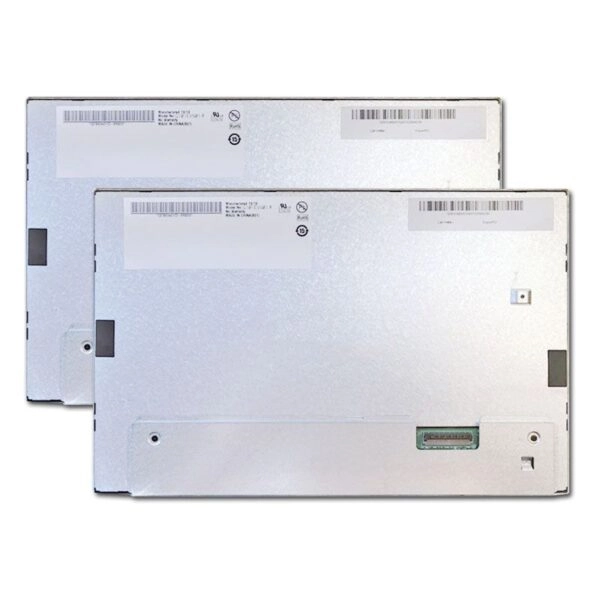

The module weighs up to 350 grams and has physical dimensions of 227.91 mm (H) x 148 mm (V) x 7.6 mm (T) (without the connector).
It employs an LVDS electrical interface and features a surface treatment with anti-reflection (≤1.5%), hardness of 3H, and anti-static properties.
The module is also RoHS compliant, ensuring adherence to environmental standards.
10.1″ TFT-LCD Specifications
| 10.1″ TFT-LCD Specifications | |||
| Model Number | G101EVN01.3 | Operating Temperature | -20°C to +70°C |
| Size | 10.1 inch | Storage Temperature | -30°C to +80°C |
| Resolution | 1280 × 800 (WXGA) | LED Lifetime | 50,000 hours |
| Outline Dimension | 227.91 × 148.0 × 8.34 mm | Touchscreen Support | Without |
| Active Area | 216.96 × 135.6 mm | Contrast Ratio | 1300:1 |
| Brightness | 500 cd/m² (typical) | Power Supply | 3.3V DC |
| Interface | LVDS (1 channel) | Display Type | Color TFT LCD |
| View Direction | All directions | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
