Description

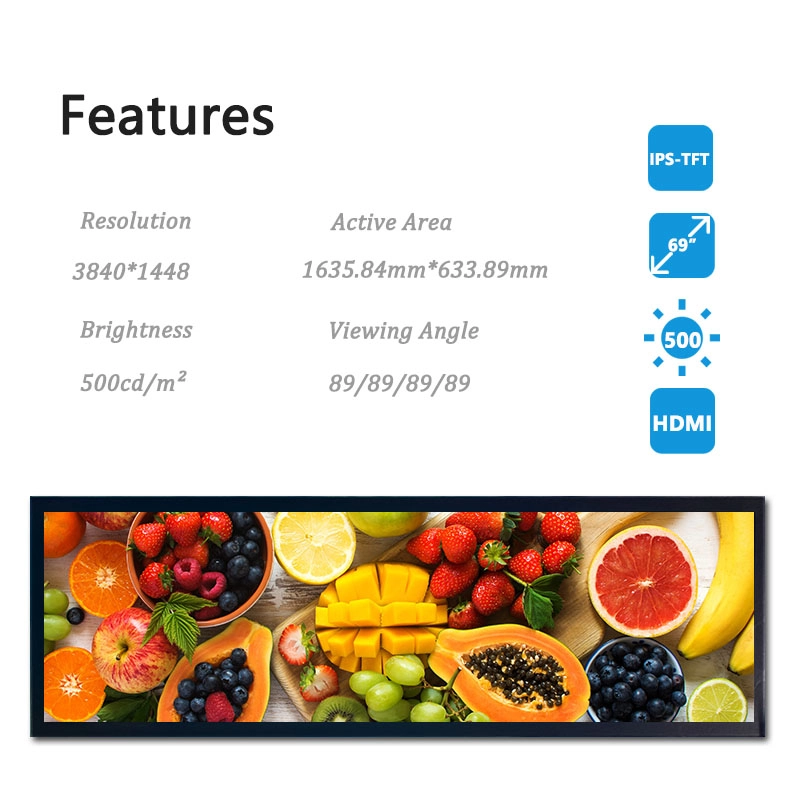

69 inch Stretched LCD Screen Monitors main features
Here are the key points about this 69 inch Stretched LCD Screen Monitors :
- 178° ultra-wide viewing angle, 1200:1 high contrast ratio
- High-definition picture quality, smooth playback
- Long-strip display, can be hung horizontally or vertically
- Sheet metal frame, protects screen from bumps
- Brightness 500cd/m2 adjustable, appearance color customizable, driver motherboard solution customization
Typical Application Scenarios of 69 inch Stretched LCD
Commercial Retail and Advertising:Ultra-long window/shelf advertising screens, multi-screen splicing promotion for chain stores
Transportation and Public Scenarios:Timetable display for subway/high-speed rail platforms, security process guidance for airports
Industrial and Data Monitoring:Production line equipment status monitoring, large-screen splicing for transportation hub command centers
Catering and Service Industry:Ultra-long ordering menu screens for restaurants, information guidance in hotel lobbies
Office and Design:Multi-task split-screen office work, wide-screen design preview for graphics/videos
Entertainment and Experience:Immersive installations in theme parks, atmosphere background screens for bars/nightclubs

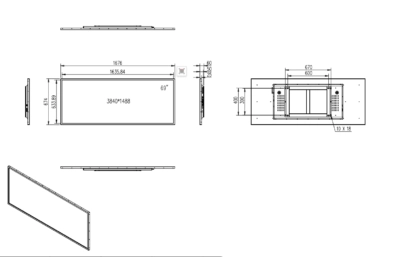

69 inch Stretched Bar Display Specification
| 69 inch Stretched LCD monitors LCD Display | |||
| Screen Size | 69 inch | Luminance | 500 cd/m2 |

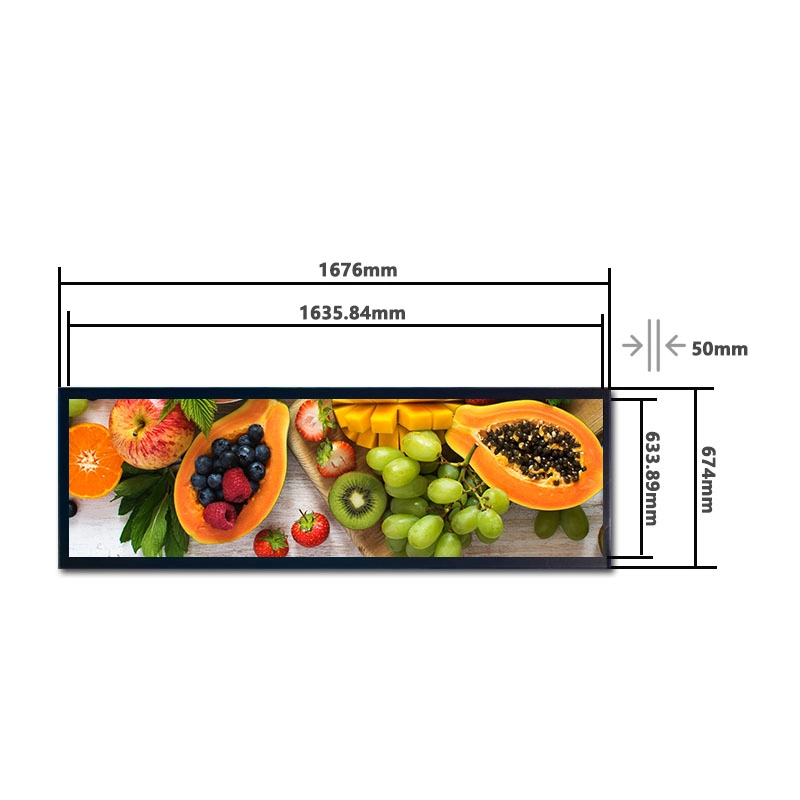

| Active Area | 1635.84*633.89(mm) | Contrast Ratio | 1200:01:00 |
| Outline | 1676*674*50(mm) | Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Screen Type | a-Si TFT-LCD | Color Depth | 16.7M 68% NTSC |
| Pixel Number | 3840*1488 | Response | 8 (Typ.)(G to G) ms |
| Aspect Ratio | 8:03 | Pixel Pitch | 0.426×0.426 mm |
69 inch Stretched Bar LCD Mainboard
| 69 inch Stretched LCD monitors Mainboard | |||
| CPU | 9U13 | Flash | – |
| Ram | – | O/S | – |
| Interface | Audio/HDMI IN*2/USB/DP IN/DC IN | ||
Stretched Bar LCD Monitor Machine
| 69 inch Stretched LCD monitors Machine | |||
| Appearance and Structure | Sheet Metal | Storage Temperature | -20℃~60℃ |
| Color | Black | Installation method | Wall hanging |
| Peripheral | WIFI/Speaker*2 | Net weight | 35Kg |
| Power supply | AC100~230V | Corton size | – |
| Power consumption | ≦150W | Number of boxes | 2PCS/Corton |
| Operating Temperature | 0℃~50℃ | Corton weight | 75Kg |
Miqidisplay LCD Monitors displays are thinner and more energy-efficient than the old-fashioned CRT displays, featuring excellent color reproduction and brightness. Our offerings include stretched digital signage/knob screens, industrial displays, industrial panel computers | X86, and ultra-thin portable displays. They are also applicable to home appliances, white goods, POS, home and industrial instruments, A/V, and medical devices .
