Description

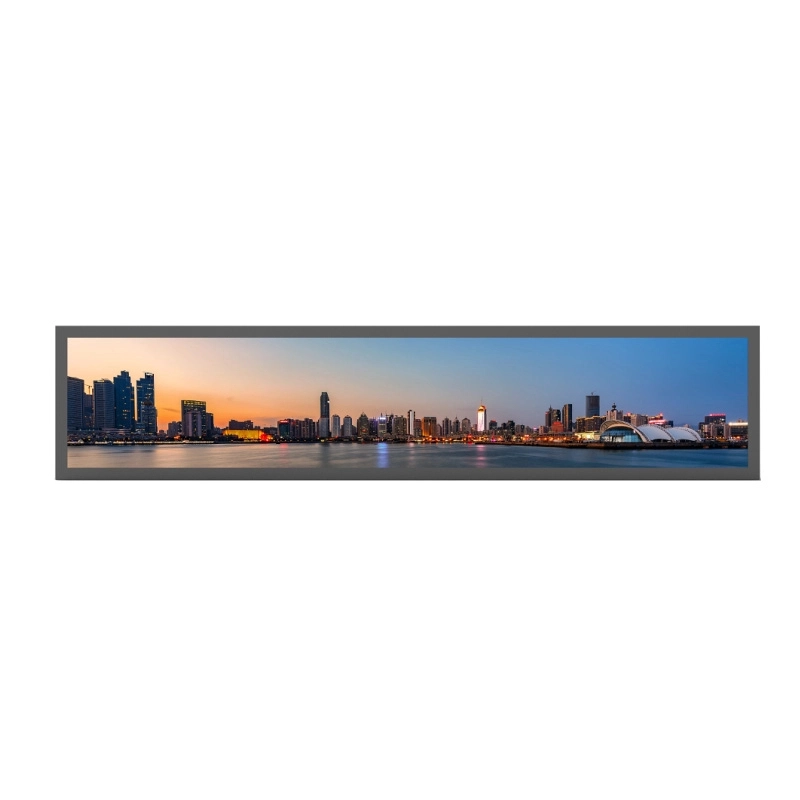

57.2 inch Android LCD Monitors main features
Here are the key points about this 57.2 inch Android LCD Monitors :
- Built-in real-time clock battery and timer power on/off support
- TF card expansion, up to 64GB
- OSD languages: Chinese, English, and multi-language support
- Supports 10/100Mbps Ethernet, 2.4G Wi-Fi, 802.11b/g/n protocols
- Supports various image formats such as JPG, BMP, PNG, and GIF, and supports landscape and portrait switching for videos, images, and text. Rotates 90°, 180°, and 270°
23.1 inch Shelf Strip Screen Specifications
| 57.2 inch Android LCD Monitors Display | |||
| Screen Size | 57.2 inch | Luminance | 700 cd/m² |
| Active Area | 1428.2*270 | Contrast Ratio | 1200:1 |
| Outline Dimensions | 1450*300*49 | Viewing Angle | 89°/89°/89°/89° (Typ.)(CR≥10) |
| Screen Type | a-Si TFT-LCD | Color Depth | 16.7M (68% NTSC) |
| Pixel Number | 4830*720 | Response Time | 8ms (Typ.)(G to G) |
| Aspect Ratio | 7:1 | Pixel Pitch | 0.3115×0.3115 mm (H×V) |
| 57.2 inch Android LCD Monitors Mainboard | |||
| CPU | RK3568 | Operating System | Android |
| RAM | 2G（Optional） | Flash Storage | 32G（Optional） |
| Interface | USB OTG/USB HOST/RJ45/Micro SD/LINE OUT/HDMI OUT/DC2.0 IN | ||
| 57.2 inch Android LCD Machine | |||
| Appearance | Sheet Metal | Operating Temperature | 0℃~50℃ |
| Color | Black (Optional) | Storage Temperature | -20℃~60℃ |
| Peripheral | N/A | Carton Size | N/A |
| Power Supply | AC100-230V | Installation | Wall hanging |
| Power Consumption | ≦110W | Net Weight | 18kg |
We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color).
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
Visual access control displays deliver high brightness, HD quality, and shape customization.
Submit your project requirements via our form for a personalized solution within 48 hours.
