Description

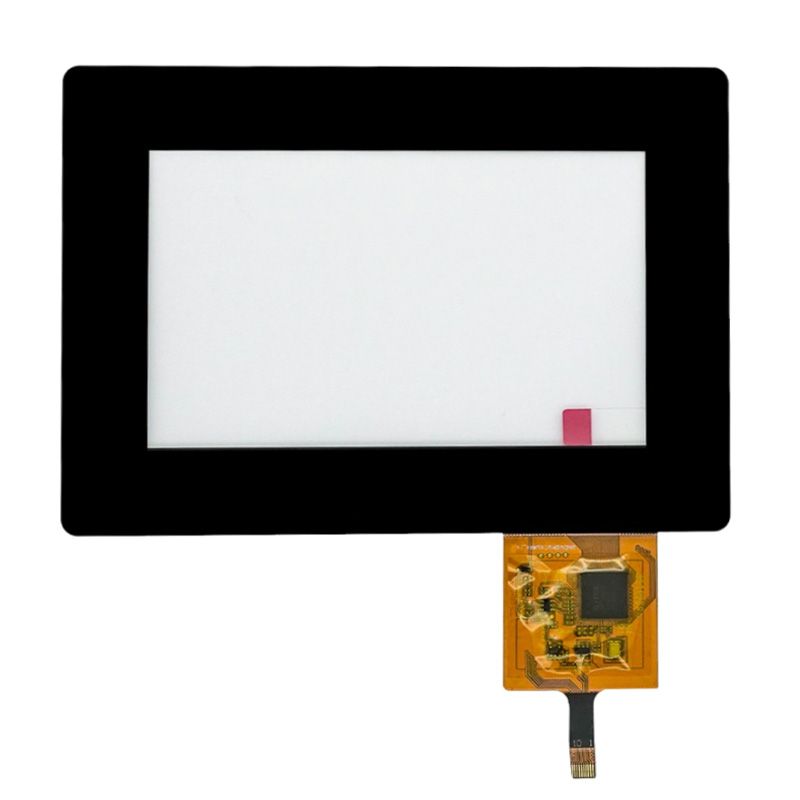

5 inch TFT Capacitive Touch Screen Key Features
Here are the key points about this 5 inch TFT Capacitive Touch Screen :
Size: The touch screen has a size of 5 inches.
Design Features:
- Engineered for robust performance across various applications.
- Has a 17:10 aspect ratio, influencing the visual display layout.
- Constructed with a durable G+G (Glass + Glass) structure to boost touch sensitivity and enhance overall durability.
- The cover thickness is 1.1 mm, giving it a sleek appearance while maintaining resilience.
Touch Functionality:It is an industrial – grade capacitive touch screen.Supports up to 10 touch points, enabling advanced multi – touch functionality for interactive user experiences.
Interface: Utilizes both IIC and USB interfaces, ensuring seamless integration with a wide variety of systems.
Internal Components: Equipped with an ILITEK Touch IC, providing precise touch recognition and high responsiveness.
Application Scenarios: Ideal for industrial automation, medical devices, and consumer electronics where reliable and accurate user interaction is of utmost importance.
Independent Research and Development Design
We offer advanced touch sensor and touch IC solutions with professional production capabilities, including G+G and G+F+ structures. Our industry-leading full lamination process supports multi-touch, waterproof touch, and glove touch functionalities, ensuring high stability and excellent resistance to interference. Our on-site production includes full lamination of PCAP and TFT displays, and we can customize product performance to meet ACE-Q100/IATF16949 standards when required. Additionally, we provide customized cover plate processing options, including anti-glare (AG), anti-reflective (AR), anti-fingerprint (AF), and anti-bacterial (AB) treatments. Committed to quality, our company strictly adheres to the ISO 9001 international quality management system, striving to produce high-standard, high-quality, and high-tech capacitive touch screens.

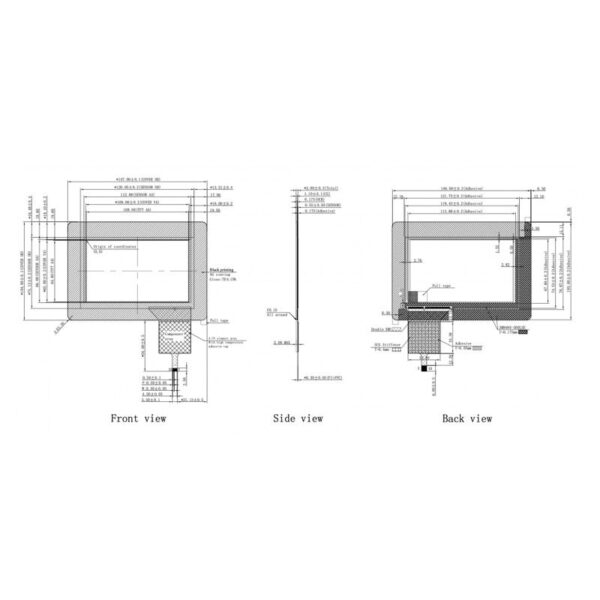

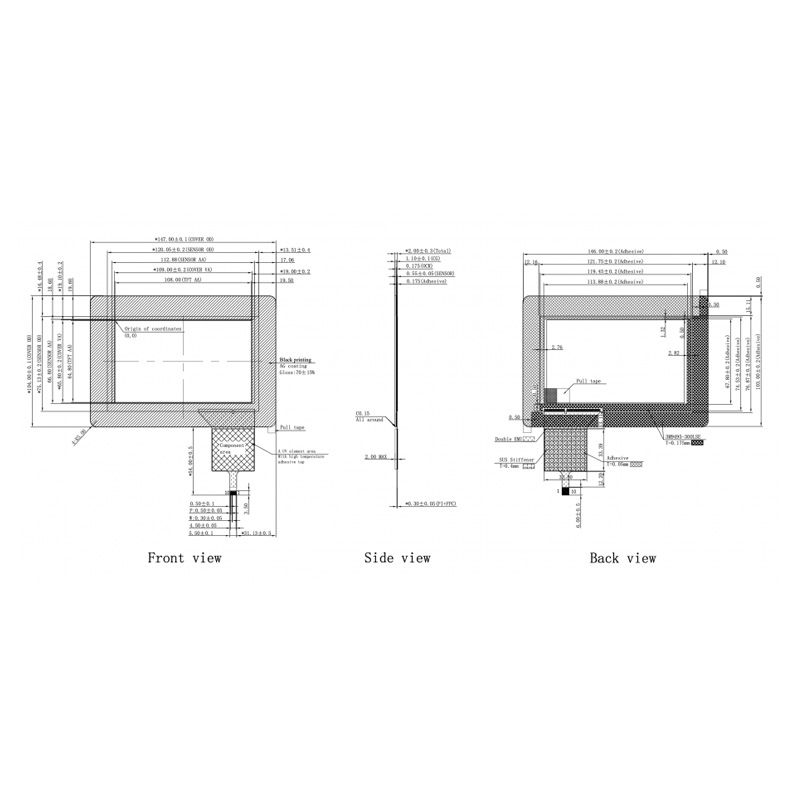

| 5.0″ Capacitive Touch Screen Product Specifications | |||
| Size(inch) | 5.0(Diagonal) | Touch Point | 10 |
| Structure | G+G | Interface | IIC+USB |
| Active Area (W*H)mm | 109*65.8 | Touch IC | ILITEK |
| Outline Dimension(mm) | 147*104 | Operating Temperature | -20~70℃ |
| Thickness(mm) | 1.1 | Storage Temperature | -30~80℃ |
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
