Description
5 inch TFT display Description

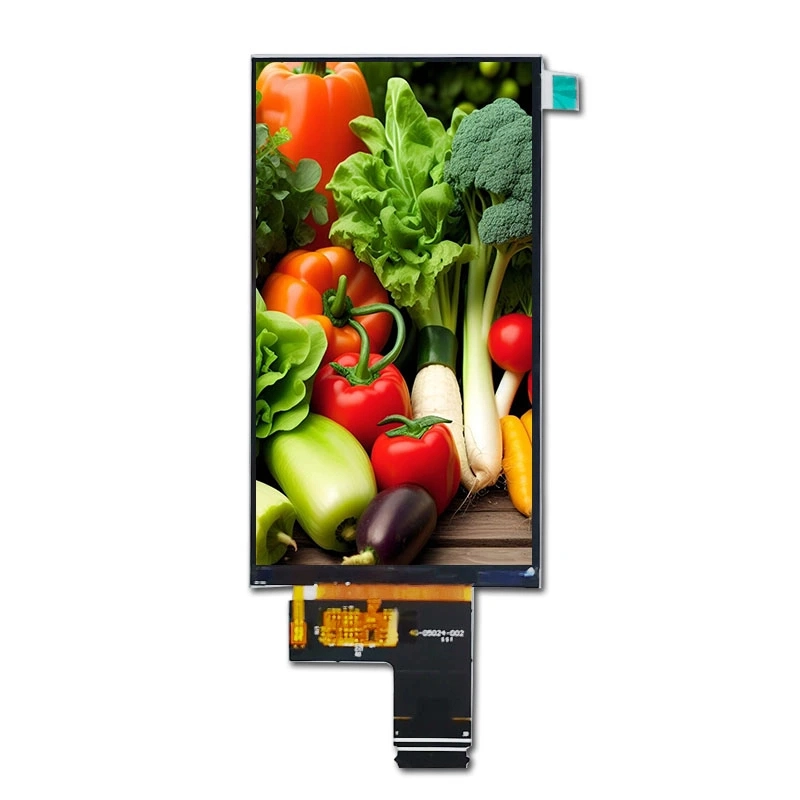

Here are the key points about this 5 inch IPS Industrial TFT display :
- This 5 inch IPS Industrial TFT display with a resolution of 720×1280 is our ODM product.
- Initially designed for our vehicle display clients, it was later adopted by handheld terminal users who found the resolution suitable for their products.
- Such displays are scarce in the market.
- Should it match your requirements, please contact us via email for the detailed specification sheet.
- Our Advantages:
- We are a 20-year-old factory specializing in LCD screens, touch screens, and supporting HDMI boards.
- With an independent R&D team, we provide full-set TFT solutions.
- Our in-house factory ensures after-sales support, and a rich network of material suppliers enables us to offer comprehensive quotation plans.
5″ TFT Display Specifications
| 5″ TFT Display Specifications | |||

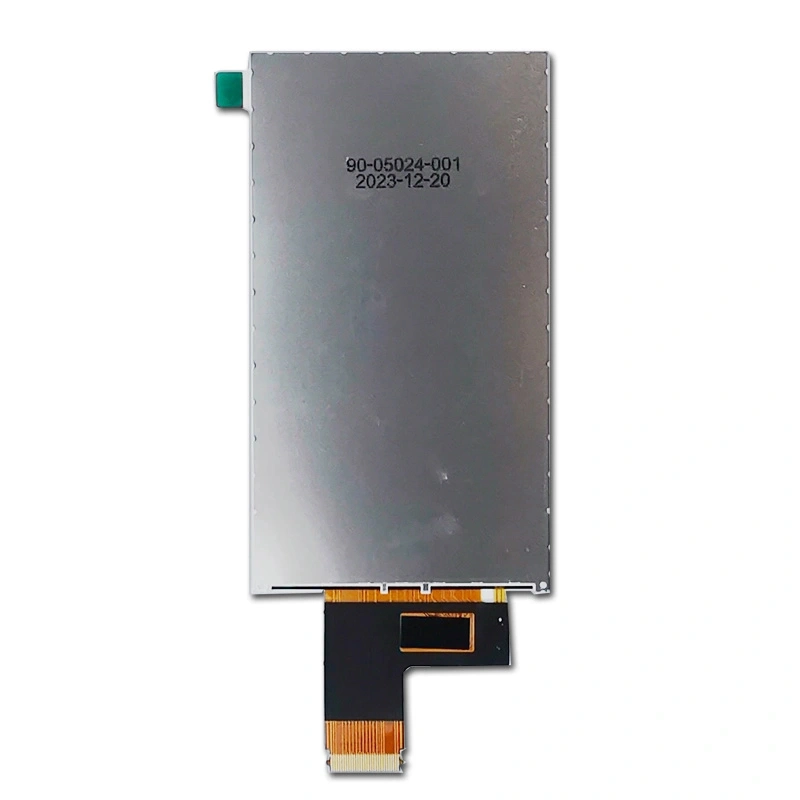

| Model Number | 90-05024-001 | Operating Temperature | -20~70 |
| Size | 5 | Storage Temperature | -30~80 |
| Resolution | 720*1280 | LED Lifetime | 20000 |
| Outline Dimension | 65.35*118.8*1.65 | Touchscreen Support | No |
| Active Area | 61.78*109.82 | Contrast Ratio | 1000:01:00 |
| Brightness(cd/m²) | 350 | Power Supply | 3.3V |
| Interface | MIPI | Display Type | Color LCD |
| View Direction | ALL | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
