Description
4.3″ TFT Display Overview

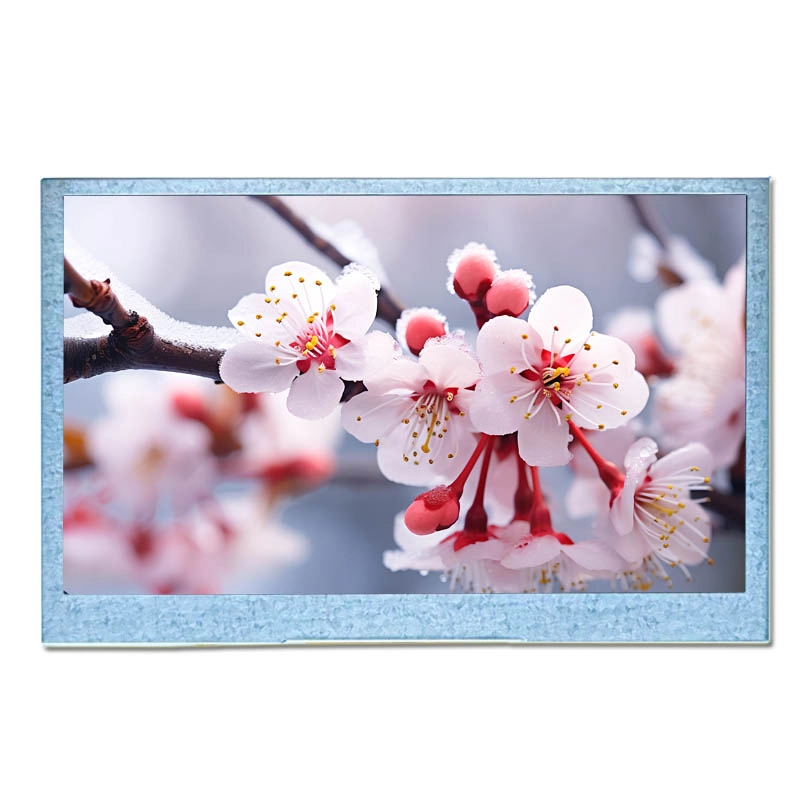

Here are the key points about this 4.3 inch IPS LCD Screen :
- The 4.3 inch IPS LCD Screen features a resolution of 480 x 272 pixels, providing crisp visuals within an active area of 95.04 mm x 53.856 mm.

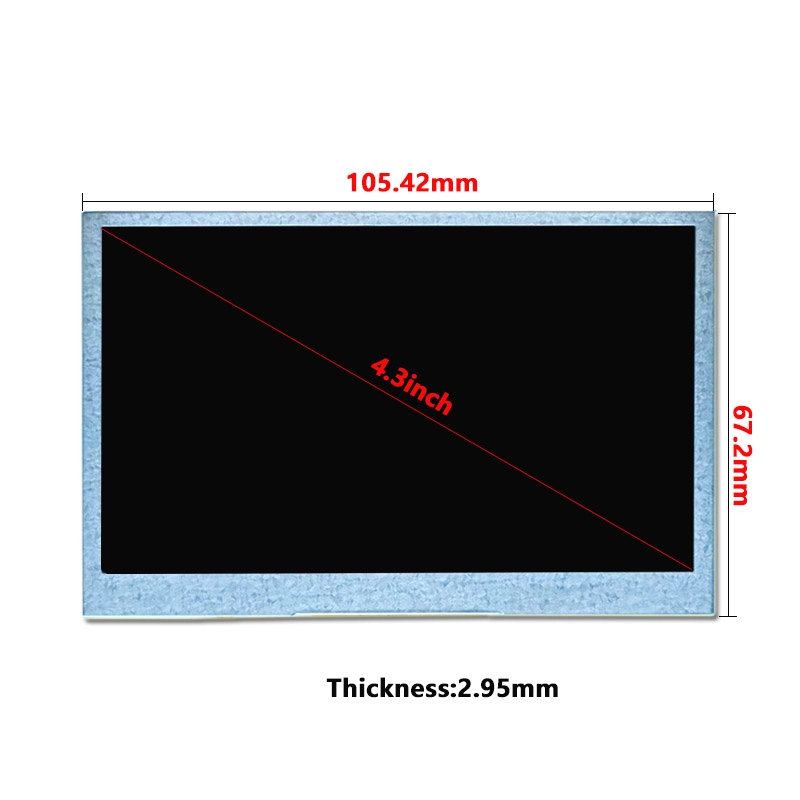

- With sleek outline dimensions of 105.42 mm x 67.2 mm x 2.95 mm, it offers a modern design suitable for various devices.
- The display supports a viewing angle of 85° in all directions, ensuring excellent visibility without distortion and allows for flexible installation options.
- It boasts a brightness of 350 cd/m² and a contrast ratio of 1000:1, delivering vibrant colors and sharp images.
- With an LED lifetime of 20,000 hours, it ensures reliable operation, while operating temperatures range from -20°C to 70°C and storage temperatures from -30°C to 80°C, making it suitable for diverse environments.
- The RGB 40 interface facilitates easy integration with various microcontrollers and devices.
4.3″ TFT LCD with Wide Viewing Angle
The 4.3-inch TFT LCD display boasts an impressive 85° viewing angle in all directions, ensuring enhanced visibility and legibility from various positions, making it ideal for multi-user applications.
This wide viewing angle reduces color distortion, maintaining color accuracy and brightness even at extreme angles, which is essential for digital signage and interactive kiosks.
Additionally, it allows for flexible installation options across diverse environments, such as automotive dashboards and control panels, without compromising user experience.
4.3″ TFT-LCD Product Specifications
| 4.3″ TFT-LCD Product Specifications | |||
| Model Number | 90-04305-BH1 | Operating Temperature | -20℃ to +70℃ |
| Display Size | 4.3″ (diagonal) | Storage Temperature | -30℃ to +80℃ |
| Resolution | 480 × 272 (WQVGA) | LED Lifetime | 20,000 hours |
| Module Dimensions | 105.42 × 67.2 × 2.95 mm | Touchscreen | Not included |
| Active Area | 95.04 × 53.856 mm | Contrast Ratio | 1000:1 |
| Brightness | 350 cd/m² | Power Supply | 3.3V DC |
| Interface | RGB 24-bit | Display Type | Color TFT-LCD |
| Viewing Angle | All directions | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
