Touch-sensitive TFT displays are used in a large number of modern smart devices. The Thin Film Transistor (TFT) liquid crystal displays are paired with touch-sensitive surfaces to create interfaces that users can control with ease. As the demand for user-friendly interfaces increases, TFT displays with integrated capacitive and resistive touch surfaces are becoming more and more commonly used in smart home systems, industrial applications, medical devices and in car consoles.
With vibrant display, precise input detection and robust performance in demanding environments, touch-sensitive TFT displays form the technology foundation for many smart devices. The following sections provide a more in-depth description of the topic, including technical background, benefits as well as applications.
Understanding TFT Display Technology
Core Principles of TFT LCD Panels
TFT technology is at the core of the majority of current displays. TFT LCDs work by having a transistor for every pixel, this results in TFT panels being able to provide faster response times and increase the resolution and color accuracy of a display compared to passive matrix displays. An active matrix allows for greater quality of displayed images, providing a sharp image and smooth video. These characteristics make TFT the perfect technology for applications where a lot of detailed graphics are used.
Integration of Touch Layers
Touch-sensitive TFT displays consist of TFT layers which are combined with a touch sensor overlay. In these applications the TFT layers are designed to preserve the excellent optical characteristics while at the same time enabling interaction. When designing these displays, manufacturers pay special attention to very wide viewing angles, to high brightness and to minimum power consumption in order to fulfill the requirements of portable and always-on smart devices.
Optical and Electrical Performance Factors
With the latest TFT panels, advanced technologies ensure that the excellent performance is consistently delivered. The amount of backlight and the alignment of the pixels are precisely controlled to enable stable display even in various lighting situations and various ways of using smart devices.
Types of Touch Technologies in TFT Displays

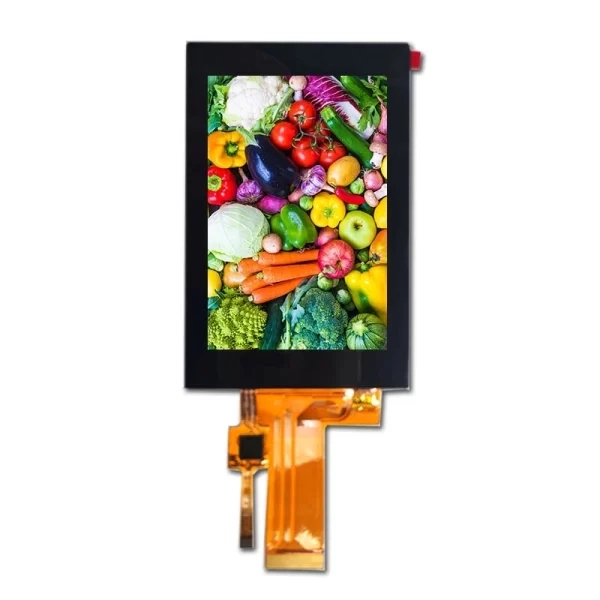

Capacitive Touch Solutions
Our capacitive touch displays utilize the human body’s electrical properties. By placing a finger or conductive stylus on the screen, the capacitance at the point of contact is altered. Capacitive touch solutions are ideal for multi-touch applications and also offer the highest level of sensitivity. A capacitive touch solution also offers a smooth glass-like surface for the user, and is a very durable solution. Our capacitive overlays work well with full lamination applications, providing a very clear image and reducing reflections.

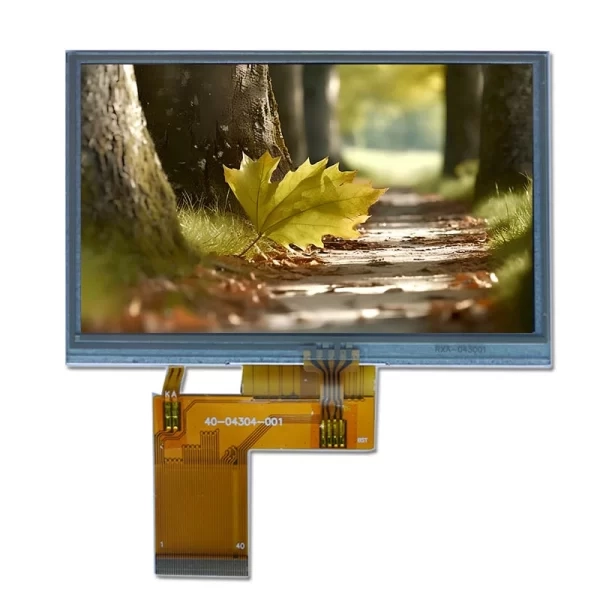

Resistive Touch Mechanisms
Resistive touch screens are made up of two conductive layers that come into contact when pressure is applied to the screen. This technology allows for use of screens with the gloves on, with styluses and even other objects. Typically resistive touch screens are single touch but there are many improved touch responsive screens on the market today that are also more durable.
Hybrid and Embedded Touch Options
Hybrid solutions and in-cell touch integration provide further enhanced performance. In-cell touch enables touch sensors to be embedded within the TFT layer, creating thinner modules that allow for better light transmission. These enable the creation of even thinner smart devices of small form factor.
Key Advantages of Touch-Sensitive TFT Displays
Superior Visual Quality and Readability
Touch-sensitive TFT displays offer several key benefits. The high brightness of the screen is very visible in very bright ambient light. In addition, the displays can operate in very wide temperature ranges, typical for industrial and outdoor applications. The long lifetime of the displays reduces the need for maintenance of deployed equipment.
Power Efficiency and Battery Optimization
Modern TFT technology also includes energy efficiency, above all through the optimized backlighting. Thus, the latest TFT panels, that are used in all modern smart devices, not only produce excellent colors and highest contrast ratios but also a long battery life while operating in mobile mode. Anti-glare and anti-fingerprint coatings guarantee the best user experience.
Robustness and Environmental Resilience
The displays also feature a number of durability attributes, including reinforced cover glass and conformal coatings that provide protection against dust, moisture and physical impact. This makes them suitable for continuous use in commercial and professional applications as well as in consumer smart devices.
Applications in Smart Devices
Smart Home Control Interfaces
TFT Displays with capacitive touch are also used in smart home systems to act as control panels for lighting, climate and security. Intuitive operating is crucial for these types of applications and allows the residents to easily control all the connected devices. Clear feedback and operation of the interfaces is guaranteed by the high-resolution TFT Displays and the capacitive touch.
Industrial Human-Machine Interfaces
Most industrial human-machine interfaces (HMIs) use rugged touch-sensitive TFT displays to interact with the surrounding machinery. On these operator-controllable displays the operator uses his fingers and thus requires a rugged screen, which can withstand a lot of vibrations and is also insensitive to temperature, dust, oil and other contaminants. This robustness is mainly achieved by using robust connectors and by appropriate protection-ratings in order to guarantee the stability in an industrial environment.
Medical and Healthcare Equipment
Medical equipment, patient monitoring, diagnostic, surgical assistance displays. High-brightness display in hygiene-sensitive surface treatments for critical visual acuity in a clinical environment.
Automotive and Transportation Systems
Applications for automotive use are such as car dashboard consoles, infotainment systems as well as for rear seat entertainment. For critical information to be visible under wide temperature ranges, wide-temperature TFT displays with good sunlight readability are used. Displays can be made in custom shapes with corresponding interfaces for integration into car interiors.
Customization Options for Specific Requirements
Mechanical and Physical Adaptations
To meet a customer’s project specifications, manufacturers offer many ways of customization of a display. Cable length and position and types of connectors can be set up to integrate them in the best way. Also Touch panel glass can be set up in many different ways: by thickness, by shape and by material.
Interface and Connectivity Flexibility
Our interfaces include HDMI, MIPI, LVDS, VGA, SPI and more. We can also provide PCB modifications, custom backlights and specific mounting solutions to meet all your needs. Optical bonding of displays can also be done to remove air gaps from the display to improve durability and optical performance.
Performance Enhancements for Demanding Environments
There are many protective cover glass treatments for a variety of environmental scenarios. Additional features such as high-brightness for specialized uses to reach 1000 nits or more for readable performance in high light environments for smart devices.
Technical Considerations for Integration
Resolution and Interface Compatibility
TFT displays with touch sensitivity can be integrated efficiently provided that some essential parameters are taken into consideration when selecting suitable displays. Above all, the resolution and aspect ratio of the display have to correspond with the visual demands of the application. On the connection side, it is necessary to ensure compatibility with the host controller to rule out any signal defects.
Power Management and Environmental Testing
The power consumption profiles affect the overall design of a device, specifically for battery powered applications. The environmental testing validates the performance of a device within specified temperature, humidity, and vibration conditions.
Software and Calibration Requirements
Software drivers as well as touch controllers require a calibration in order to recognize input correctly. The Electromagnetic compatibility (EMC) design also prevents unwanted interference in surrounding sensitive electronic equipment.
FAQ
What are the brightness levels for outdoor, or high light use?
The high brightness variants of the Projector Chips have a brightness of 1000 nits or more, so very suitable for usage in full sun or other very bright environments.
Are these displays also suitable for medical applications?
Yes, there are specialized models with appropriate surface treatment, high resolution and stable display. Such displays are used in clinical environments and require a high level of patient safety.
