G185HAN01.0 Key Features

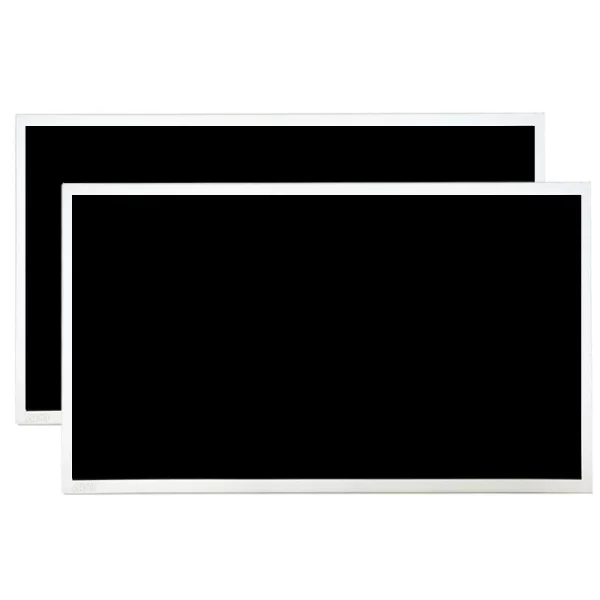

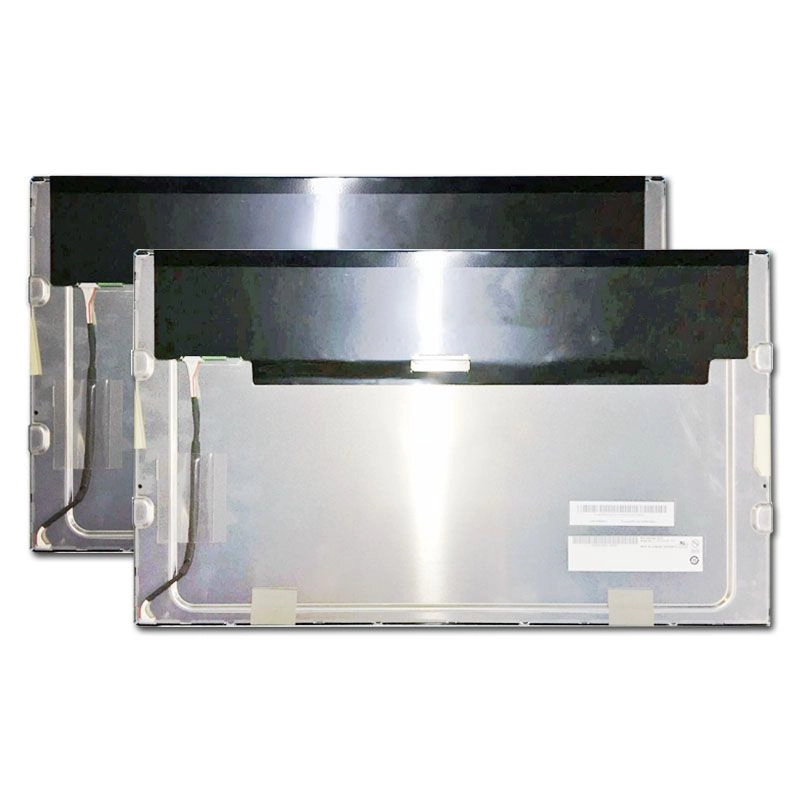

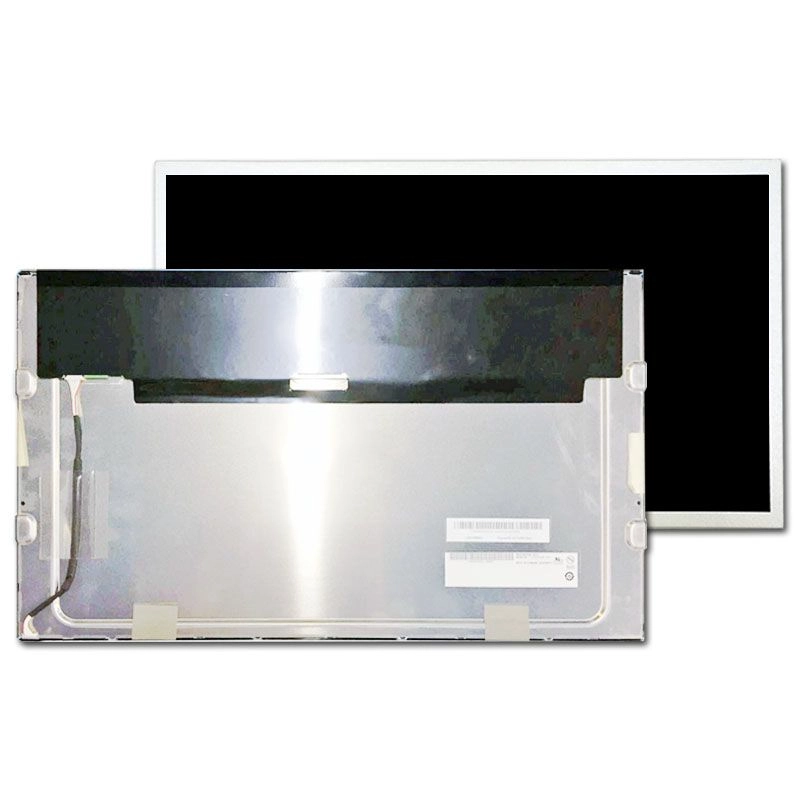

Here are the key points about this AUO G185HAN01.0 IPS Industrial LCD :
- The AUO G185HAN01.0 IPS Industrial LCD is a high-performance 18.5-inch Full HD (1920×1080) LCD display engineered for demanding environments.
- Featuring IPS technology, it delivers consistent color accuracy and 178° wide viewing angles, ensuring clarity in multi-user settings.
- With a brightness of 350 cd/m² and a 1000:1 contrast ratio, this panel excels in brightly lit conditions while maintaining vivid image quality.
- Its rugged design supports operation across a broad temperature range (-20°C to 70°C), ideal for industrial applications.
- The LVDS interface ensures stable signal transmission, and the ultra-slim profile (12.5mm thickness) enables seamless integration into compact systems.
- Built with 50,000-hour LED lifespan and 3.3V low-power architecture, it combines durability with energy efficiency.
- The anti-glare surface minimizes reflections, enhancing readability in dynamic lighting environments.
AUO G185HAN01.0 Applications & Performance
Designed for mission-critical environments, the G185HAN010 thrives in industrial control panels, medical diagnostic equipment, and outdoor digital signage.
Its wide temperature tolerance ensures reliability in factory automation (-20°C) or desert solar farms (70°C).
The IPS panel’s color consistency supports medical imaging accuracy, while high brightness sustains visibility in sunlit retail kiosks.
In transportation hubs, the 16:9 widescreen format enables multi-window monitoring of logistics data.
The LVDS interface resists electromagnetic interference in heavy machinery dashboards, and the 50000-hour lifespan reduces maintenance costs in 24/7 security systems.
Shock-resistant construction (certified for industrial vibration) makes it suitable for ruggedized POS terminals and agricultural machinery.
18.5″ TFT-LCD Specifications
| 18.5″ TFT-LCD Specifications | |||
| Model Number | G185HAN01.0 | Operating Temperature | -20°C to +70°C |
| Size | 18.5 inch | Storage Temperature | -20°C to +70°C |
| Resolution | 1920 × 1080 (Full HD) | LED Lifetime | 50,000 hours |
| Outline Dimension | 430.4 × 254.6 × 12.5 mm | Touchscreen Support | Without |
| Active Area | 408.96 × 230.04 mm | Contrast Ratio | 1000:1 |
| Brightness | 350 cd/m² (typical) | Power Supply | 3.3V DC |
| Interface | LVDS (2 channel) | Display Type | IPS TFT LCD |
| View Direction | 178°/178° (H/V) | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
