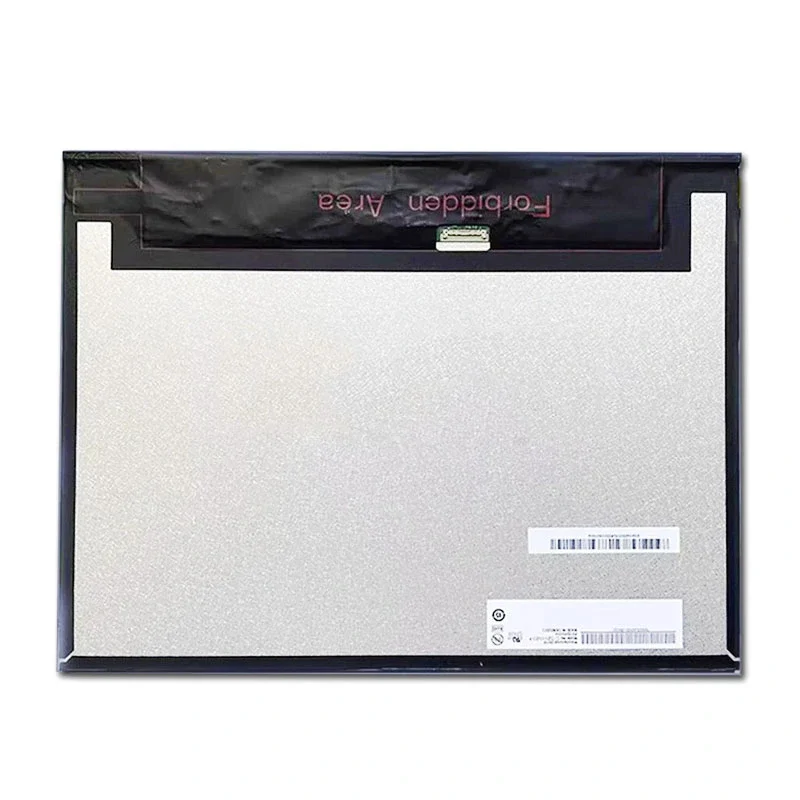

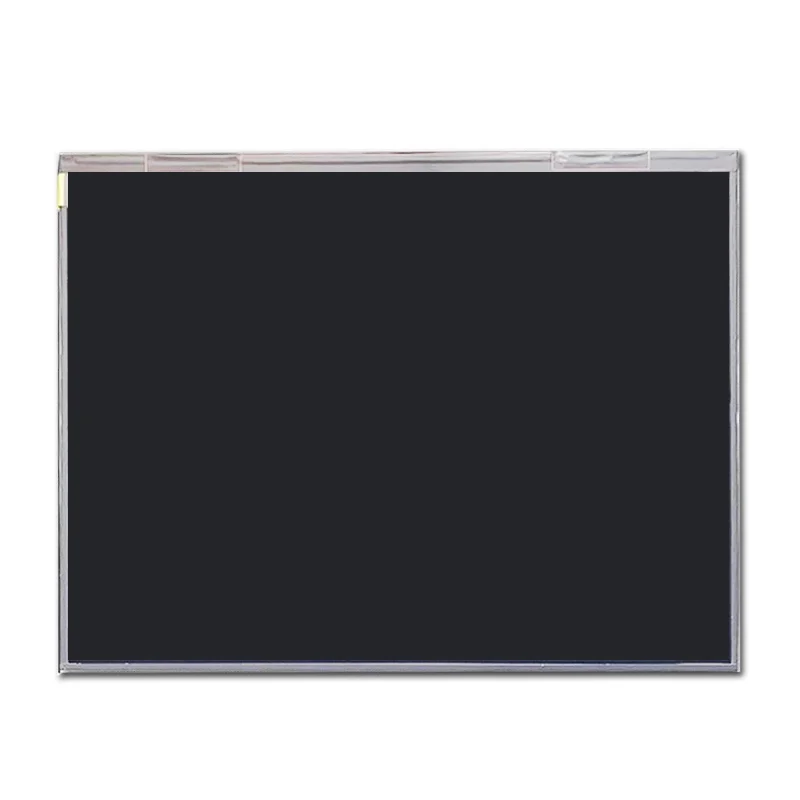

AUO G150XAN03.0 industrial Display LCD Description
Here are the key points about this AUO G150XAN03.0 industrial Display :
- Product & Core Display: AUO G150XAN03.0 (15.0-inch a-Si TFT-LCD LCM), XGA 1024×768 (85 PPI, RGB vertical stripe), 400 cd/m² (typ.) brightness, 1000:1 (TM) contrast, 89° full-viewing angles (CR≥10), 25ms response time, AHVA normally black transmissive mode, 16.2M colors (60% NTSC)
- Physical & Surface: 304.128×228.096mm active area, 314.13×245.3×6.8mm outline, antiglare 3H hard coating, no touchscreen
- Technical & Power: 50K-hour WLED backlight (with driver), 60Hz base refresh rate (120Hz/240Hz via MEMC), eDP (1 lane, 30-pin) interface, 3.3V supply
- Application & Environment: For industrial use, operating/storage temperature -20~70°C
15 inch Industrial LCD Display
| 15 inch LCD Specifications | |||
| Diagonal Size | 15 inch | Contrast Ratio | 1000 |
| Pixel Number | 1024 × 768 (XGA) | Operating Temperature | -20°C to +70°C |
| Luminance | 400 cd/m² (typical) | Storage Temperature | -20°C to +70°C |
| Module Size | 314.13(W)×245.3(H) ×6.8(D) | LED Lifetime | 50,000 hours |
| Active Area | 304.128(W)×228.096(H) | Touchscreen Support | Without |
| Viewing Direction | IPS | Power Supply | 3.3V DC |
| View Angle | 89/89/89/89 | Display Type | Color TFT LCD |
| Interface | EDP | ||
Customizable Parts
Display Cable
We can adjust the length, position, and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
