Description

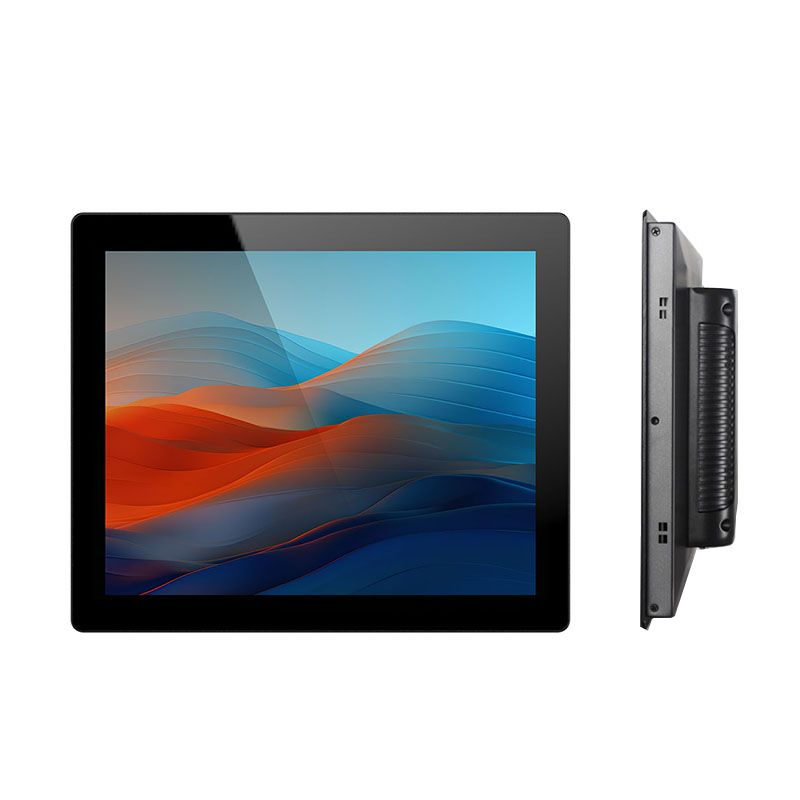

17 inch Industrial Touch Screen Display main features
Here are the key points about this 17 inch Industrial Touch Screen Display:
Original capacitive touch screen, high resolution, fingertip light touch, 3ms can quickly respond to high-speed transmission reaction, one-time correction, strong stability, strong anti-interference.
HDMI+VGA standard interface, we support interface customization and expansion
Multi-hole heat dissipation body, the back shell adopts multi-hole heat dissipation design, which can effectively and timely dissipate heat, so that the machine can work normally and stably for a long time
Application areas: CNC machine tools, bank autonomous terminals, automation industry, medical equipment, autonomous terminals, security monitoring, etc.
| 17″ Industrial Touch Monitor LCD Display | |||
| Size | 17″ | Viewing angle (L/R/U/D) | 80/80/60/80 (Typ.)(CR≥10) |
| Display area | 337.92 (H) × 270.336 (V))mm | Contrast Ratio | 800:01:00 |
| Resolution | 1280*1024 | Color | 16.7M |
| Dot pitch | 0.264 (H) X 0.264 (V)mm | Response time | 20/10 (Typ.)(Tr/Td) (ms) |
| Display ratio | 4:03 | Brightness | 350cd/m2 |
| 17″ Industrial Touch Monitor Touch Screen | |||
| Touch type | Capacitive touch (G+G), ILITEK solution | Transmittance | ≥85% |
| Number of supported points | 10 point | Service life | >50 million times |
| Touch mode | Finger Touch | Linear error | ≤2.5mm |
| Surface hardness | ≥6H | Haze | 3%(Max) |
| Response time | <3ms | ||
| 17″ Industrial Touch Monitor Chassis | |||
| Appearance size | 413*342.5*68.8mm | Net weight | 6KG |
| Opening size | 392*322mm | Gross weight | 7KG |
| Touch step thickness | 3mm | Packing size | 520*435*140mm |
| Wall mounting hole position | 100*100mm | ||
| Display solution configuration specifications | |||
| Interface | VGA*1 | Packing List | monitor*1 |
| HDMI*1 | HDMI cable*1 | ||
| Audio*1 | Instruction manual*1 | ||
| USB*1 for touch | Dual male USB cable*1 | ||
| Power Consumption | Rated power ≤16W | Adapter*1 | |
| Standby power ≤0.5W | Environment | Storage temperature and humidity: -20~60℃, 20~85RH, no condensation | |
| Rated voltage 100-240V (50/60Hz) | Working temperature and humidity: 0~50℃, 20~85RH, no condensation | ||
| Power Supply | DC 12V(optional DC 9-36V wide voltage, Phoenix terminal interface) | ||
| Performance | Industrial-grade motherboard, solid-state capacitor, anti-interference, anti-surge | ||
Miqidisplay LCD Monitors displays are thinner and more energy-efficient than the old-fashioned CRT displays, featuring excellent color reproduction and brightness. Our offerings include stretched digital signage/knob screens, industrial displays, industrial panel computers | X86, and ultra-thin portable displays. They are also applicable to home appliances, white goods, POS, home and industrial instruments, A/V, and medical devices .
Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours.
