Description
11.6″ Bar LCD Display Features
Here are the key points about this 11.6 inch Stretched Bar Type TFT LCD Display :
- 11.6-inches (15:7) display
- 1768RGB x 828 resolution in RGB stripe arrangement
- High transmittance
- Interfaces: 2ch LVDS
- AHVA — wide view technology
- RoHs compliance
11.6 inch Stretched Bar Type TFT LCD Display Desription
This 11.6 inch Bar Type TFT LCD is a Low Temperature poly-Si & Transmissive type Thin Film Transistor Liquid crystal Display (TFT-LCD) with AHVA technology. This model is composed of a TFT-LCD, 2 driver ICs, 2 FPCs (flexible printed circuit) and a PCB (Printed circuit board). TCON (timing controller) is also embedded in the driver IC.

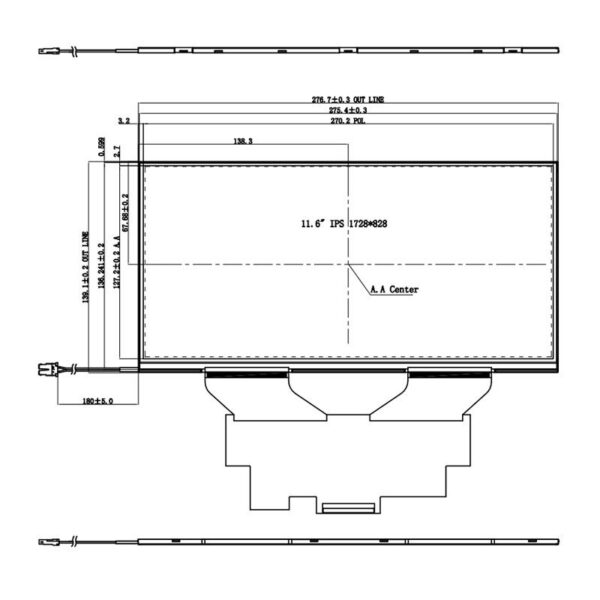

| 11.6″ Bar LCD Display Product Specifications | |||
| Diagonal Size | 11.6″(Diagonal) | View Angle(U/D/R/L) | 85/85/85/85 |
| Pixel Number | 1768*828 Pixels | Interface | LVDS |
| Luminance | 450 | Contrast Ratio | – |
| Module Size | 274.85×230.94×0.83 | Operating Temperature | -30~75℃ |
| Active Area | 267.852 x125.442 | Storage Temperature | -30~85℃ |
| Viewing Direction | ALL | ||
Customizable Parts
Display Cable
We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, you can make your circuit connections safer and achieve more reliable performance.
Customized glass and touch screen
In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage.
Contact us to get the best customized solution.
Miqidisplay TFT LCD display provide vivid and full-color visual effects, capable of showing bright images, fast animations, complex graphics, custom fonts, as well as various touchscreen options . They support a variety of interface options, such as HDMI, SPI, LVDS, MIPI, RGB and EDP.
These displays feature industry-standard sizes and resolutions . Multiple types are available, such as stretched bar and circular LCDs . Highly adaptable, Miqidisplay TFT modules suit diverse uses . Applications range from industrial control to medical equipment.
